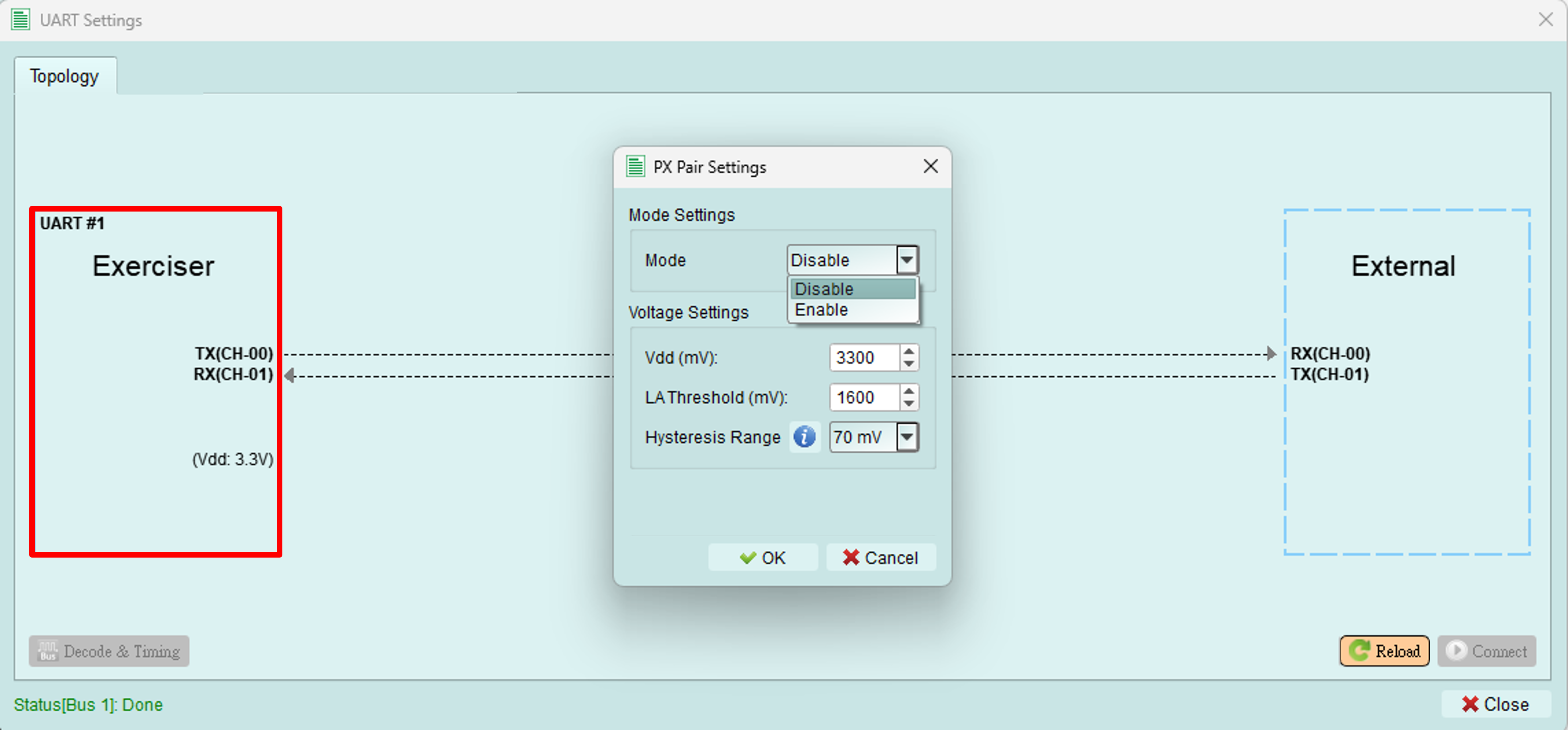

Px Pair Settings

Click the button on the left side of this dialog (in the red box) to open the PX Pair Settings dialog.

Mode Settings

Set the mode to one of: 1. Enable: let the exerciser transmit data. 2. Disable

Voltage Settings

All units for these settings are in mV. 1. Vdd: set the working voltage. 2. LA Threshold: set the LA threshold for decoding. 3. Hysteresis Range: set the Hysteresis range.
