LTPI
Feature
Supported Models:
| LA3000 series | LA4000 series | BF6000 series | BF7000 series |
|---|---|---|---|
| ● | ● | ● | ● |
BF7264B/B+/Pro has two USB holes at the front.

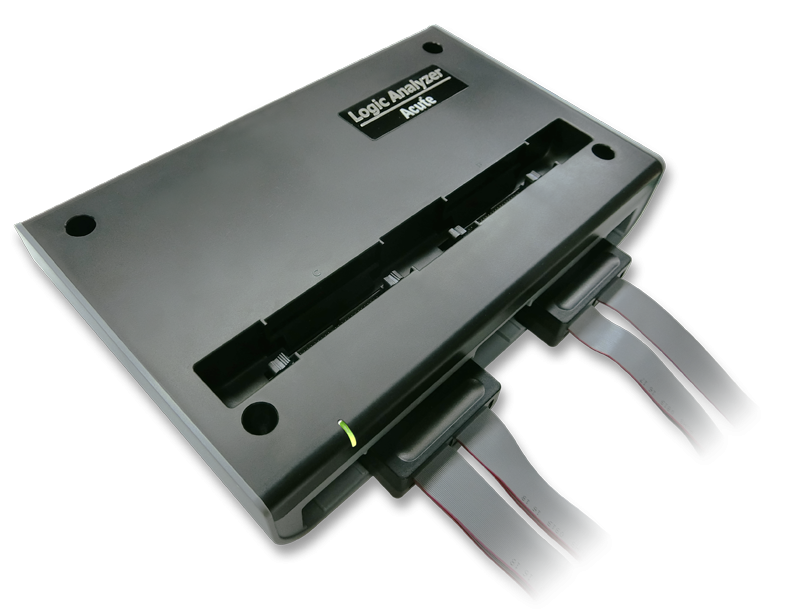

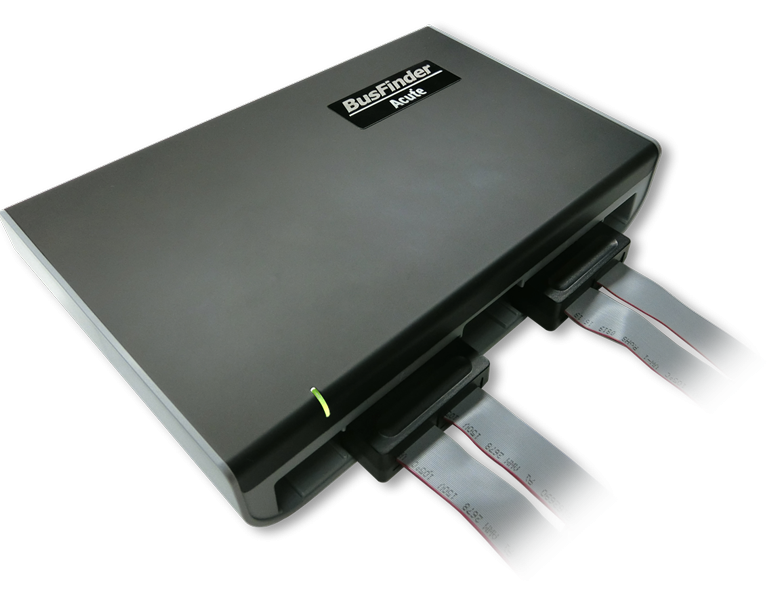

LA3000/4000 series or BF6000/7000 series

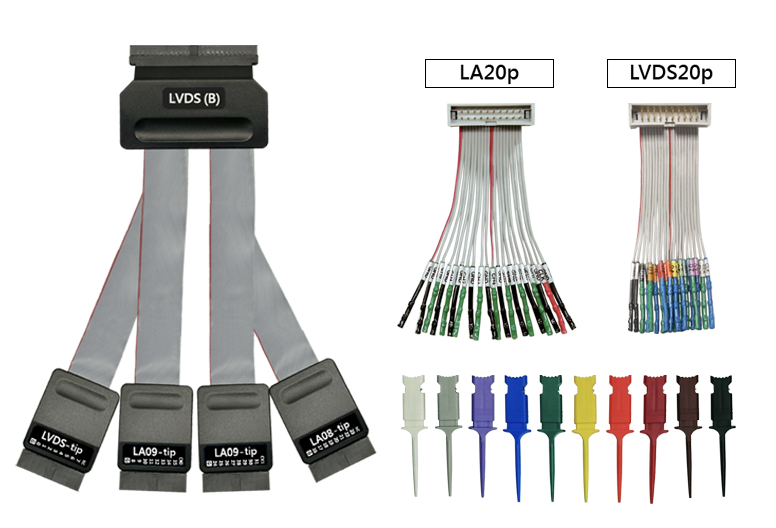

Used with the LVDS probe set, it can measure LTPI signals.
Using a 2 GHz or 2.4 GHz sample rate, it can measure LTPI signals up to 300 MHz (600 Mbps).
Introduction

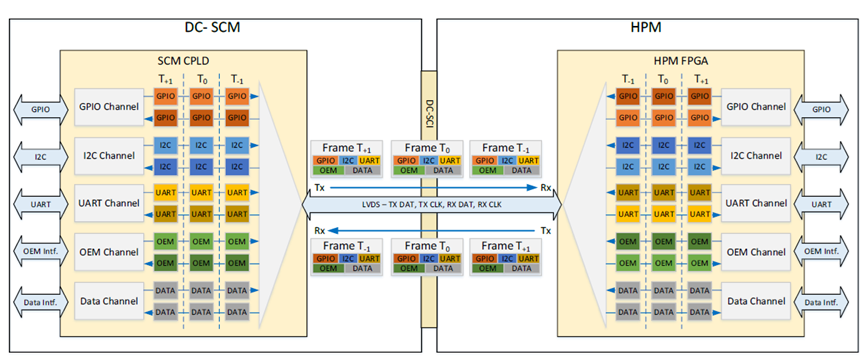

LTPI (LVDS Tunneling Protocol & Interface) is an interface protocol designed for transmitting low-speed signals between the HPM (Host Processor Module) and SCM (Server Control Module). It supports multiple channels such as GPIO, I2C/SMBus, and UART, utilizing time-division multiplexing (TDM) over LVDS links to achieve multi-channel transmission.
The GPIO channel includes both low-latency and normal-latency types. The I2C/SMBus channel handles single-controller communication links. The UART channel supports flow control. An OEM channel is also provided for proprietary interfaces, and a data channel supports memory image data transfers.
Analysis method

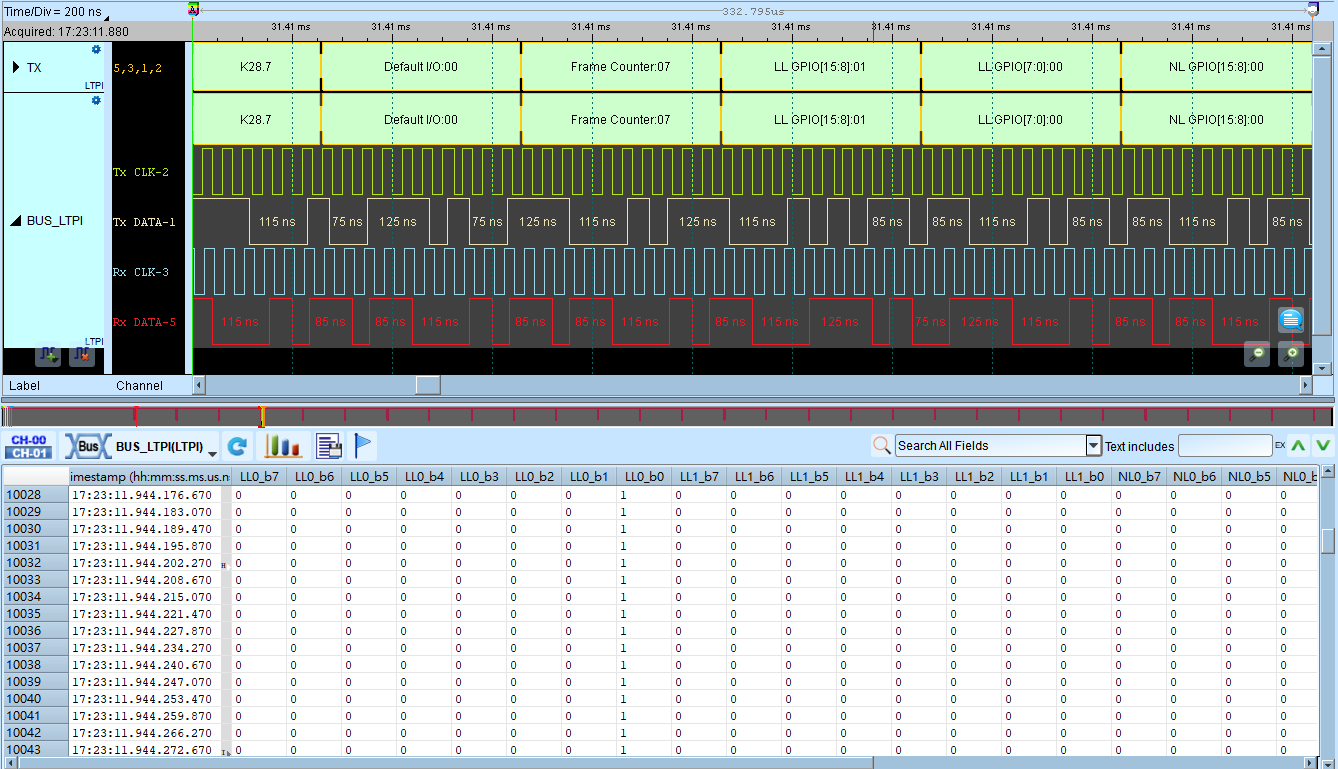

8b10b/LTPI/GPIO/UART 0-1/I2C 0-5 presented in table format

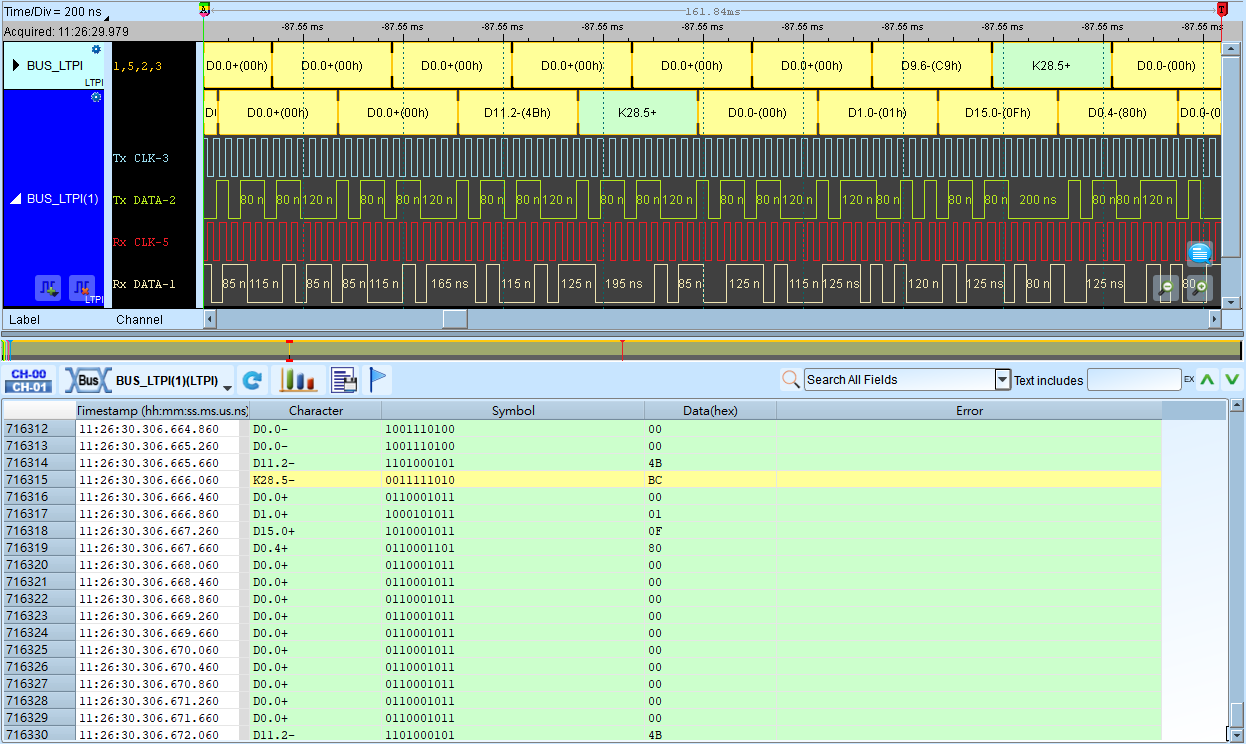

- 8b10b

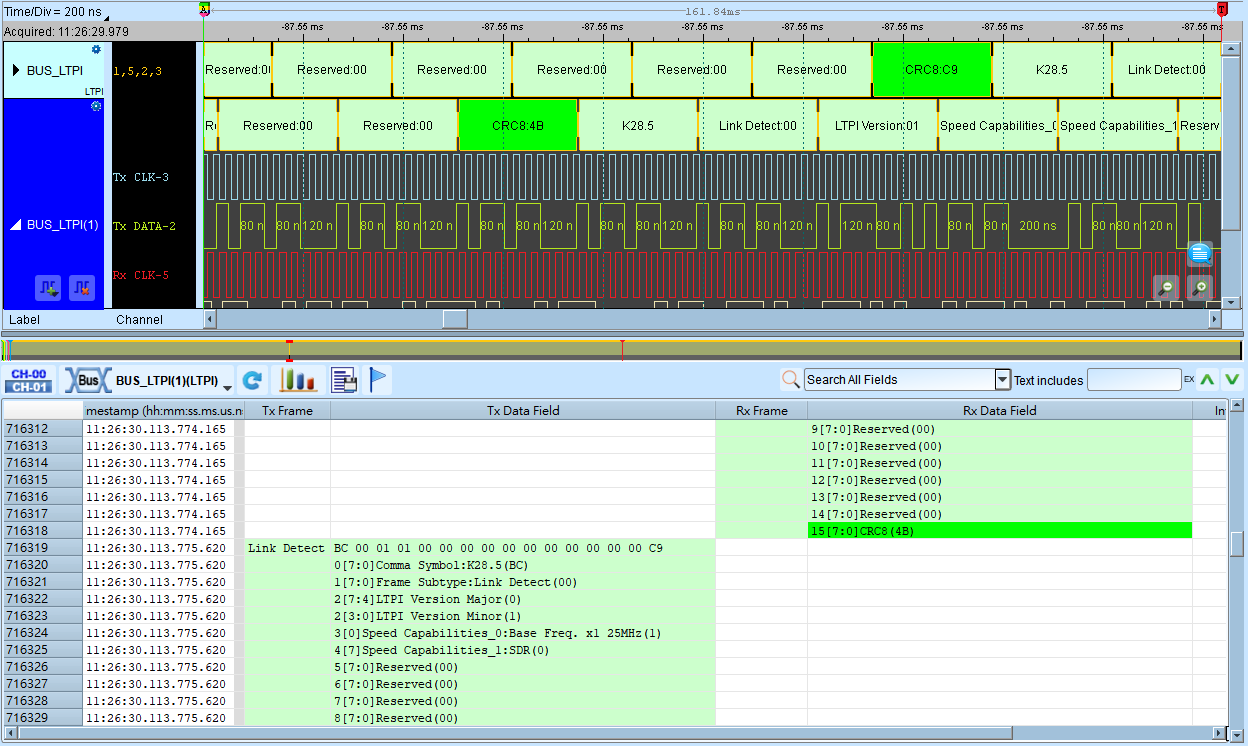

- LTPI Packet (Contains command parsing)
- GPIO / I2C / UART packets
