堆疊示波器
概覽
此功能將外接示波器擷取的類比資料，與裝置擷取的數位資料整合在一起。
優點：
- 將數位邏輯與類比波形對應比對
- 找出突波與雜訊
- 驗證數位與類比訊號之間的時序關係
堆疊線材
Acute 示波器：標準 MCX-MCX 線
外接示波器：選購 BNC-MCX 線
- 選購 BNC-MCX 線
- 長度：50 cm 或 100 cm
硬體連接
邏輯分析儀與示波器有兩種連接方式：

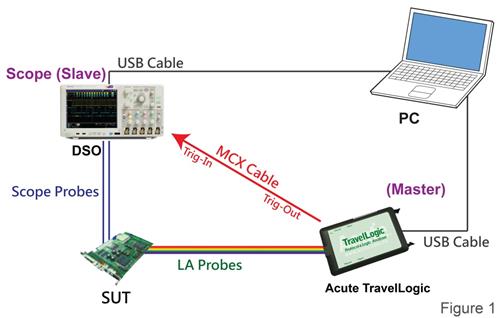

- 方式 1：Acute 邏輯分析儀為主（Master），外接示波器為從（Slave）
方向：將 Acute 邏輯分析儀的 Trig-Out 埠接到外接示波器的 Trig-In 埠

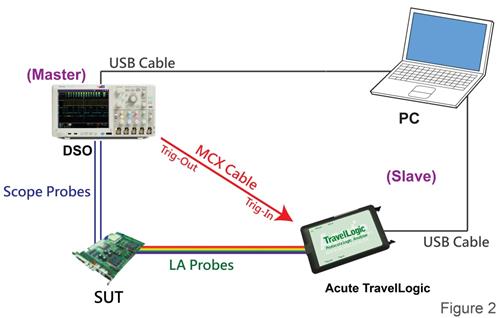

- 方式 2：外接示波器為主（Master），Acute 邏輯分析儀為從（Slave）
方向：將外接示波器的 Trig-Out 埠接到 Acute 邏輯分析儀的 Trig-In 埠
需求
堆疊示波器需要安裝示波器廠商提供的 Virtual Instrument Software Architecture（VISA）程式庫。
| 廠商 | 需安裝的軟體 |
|---|---|
| Acute | Acute DSO 軟體 |
| Gwinstek | GW USB driver |
| Tektronix | TEKVISA CONNECTIVITY SOFTWARE |
| Agilent/Keysight | KEYSIGHT IO LIBRARIES SUITE |
| LeCroy | NI-VISA and Drivers |
| HAMEG | NI-VISA and Drivers |
| Rohde & Schwarz | NI-VISA and Drivers |
軟體設定

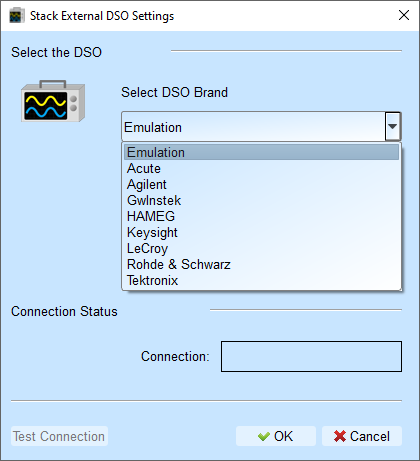

選擇示波器
從下拉選單選擇示波器廠牌。
Note
Emulation 模式用於在未連接外接示波器硬體時，載入已儲存的 log 檔。
連線類型
選擇示波器與 PC 的連線方式：
- USB：直接 USB 連線
- TCP/IP：網路連線
連線 IP（僅 TCP/IP 模式）
使用 TCP/IP 連線時，輸入示波器的 IP 位址。
直接以跳線（crossover cable）連接時的建議 IP 設定：
- TravelLogic：192.168.1.2
- 示波器：192.168.1.3
- 閘道：192.168.1.1
- DHCP：OFF
若 IP 設定未生效，請試著停用再重新啟用網路介面，或重新開機。
測試連線／連線狀態
- 測試連線：驗證與示波器的通訊
- 連線狀態：顯示目前連接的示波器型號，並自動將示波器通道加入波形視窗
堆疊延遲補償
邏輯分析儀觸發時，Trig-Out 訊號會經由連接線傳到示波器，因而產生時間延遲。此延遲會使數位與類比波形在水平方向錯位。
補償方式：
- 在波形顯示區，將滑鼠移到示波器波形上
- 按住 Shift 鍵
- 用滑鼠左鍵拖曳示波器波形，使其正確對齊
此操作可修正堆疊延遲，讓顯示中的數位與類比資料同步。
支援的示波器型號
| Manufacturer | Model | USB | TCP/IP |
|---|---|---|---|
| Acute | MSO 3000 series: MSO3124V, MSO3124H, MSO3124D, MSO3124B, MSO3124E TravelScope 3000 series: TS3124V, TS3124H, TS3124B, TS3124E TravelScope 2000 series: TS2202E, TS2212E, TS2212A, TS2202F, TS2212F, TS2212B, TS2212H DS-1000 series: DS-1002, DS-1102, DS-1202, DS-1302 |
v | |
| Gwinstek | GDS-1062A, GDS-1102A, GDS-1152A | v | |
| GDS-2062, GDS-2064, GDS-2072E, GDS-2074E, GDS-2102, GDS-2104, GDS-2102E, GDS-2104E, GDS-2202, GDS-2204, GDS-2202E, GDS-2204E | v | ||
| GDS 3152, GDS 3154, GDS 3252, GDS3254, GDS 3352, GDS 3354 | v | ||
| HAMEG | HMO3032, HMO3034, HMO3042, HMO3044, HMO3052, HMO3054 | v | v |
| HMO2022, HMO2024 | v | v | |
| HMO1002 | v | v | |
| Keysight (Agilent) | DSO1000A Series: DSO1024A, DSO1022A, DSO1014A, DSO1012A, DSO1004A, DSO1002A DSO5000A Series: DSO5012A, DSO5014A, DSO5032A, DSO5034A, DSO5052A, DSO5054A DSO6000A Series: DSO6012A, DSO6014A, DSO6032A, DSO6034A, DSO6052A, DSO6054A, DSO6102A, DSO6104A DSO6000L Series: DSO6014L, DSO6054L, DSO6104L DSO7000A Series: DSO7012A, DSO7014A, DSO7032A, DSO7034A, DSO7052A, DSO7054A, DSO7104A DSO7000B Series: DSO7012B, DSO7014B, DSO7032B, DSO7034B, DSO7052B, DSO7054B, DSO7104B DSO9000A Series: DSO9404A, DSO9254A, DSO9104A, DSO9064A, DSO91304A, DSO91204A, DSO90804A, DSO90604A, DSO90404A, DSO90254A MSO6000A Series: MSO6012A, MSO6014A, MSO6032A, MSO6034A, MSO6052A, MSO6054A, MSO6102A, MSO6104A MSO7000A Series: MSO7012A, MSO7014A, MSO7032A, MSO7034A, MSO7052A, MSO7054A, MSO7104A MSO7000B Series: MSO7012B, MSO7014B, MSO7032B, MSO7034B, MSO7052B, MSO7054B, MSO7104B MSO9000A Series: MSO9404A, MSO9254A, MSO9104A, MSO9064A DSO-X 2000A Series: DSO-X 2002A, DSO-X 2004A, DSO-X 2012A, DSO-X 2014A, DSO-X 2022A, DSO-X 2024A DSO-X 3000T Series: DSO-X 3012T, DSO-X 3032T, DSO-X 3102T, DSO-X 3014T, DSO-X 3024T, DSO-X 3034T, DSO-X 3054T, DSO-X 3104T DSO-X 4000A Series: DSO-X 4022A, DSO-X 4024A, DSO-X 4032A, DSO-X 4034A, DSO-X 4052A, DSO-X 4054A, DSO-X 4104A, DSO-X 4154A DSO-X 6000A Series: DSO-X 6002A, DSO-X 6004A, DSO-X 6002A, DSO-X 6004A MSO-X 2000A Series: MSO-X 2002A, MSO-X 2004A, MSO-X 2012A, MSO-X 2014A, MSO-X 2022A, MSO-X 2024A MSO-X 3000T Series: MSO-X 3012T, MSO-X 3032T, MSO-X 3052T, MSO-X 3102T, MSO-X 3014T, MSO-X 3024T, MSO-X 3034T, MSO-X 3054T, MSO-X 3104T MSO-X 4000A Series: MSO-X 4022A, MSO-X 4024A, MSO-X 4032A, MSO-X 4034A, MSO-X 4052A, MSO-X 4054A, MSO-X 4104A, MSO-X 4154A MSO-X 6000A Series: MSO-X 6002A, MSO-X 6004A DSO-X 90000A Series: DSO-X92804A, DSO-X92504A, DSO-X92004A, DSO-X91604A DSA 90000A Series: DSA91204A, DSA90804A, DSA90604A, DSA90404A, DSA90254A DSA-X 90000A Series: DSA-X93204A, DSA-X92804A, DSA-X92504A, DSA-X92004A, DSA-X91604A DSAZ / DSOZ Series: DSAZ634A, DSOZ634A, DSAZ632A, DSOZ632A, DSAZ594A, DSOZ594A, DSAZ592A, DSOZ592A, DSAZ504A, DSOZ504A, DSAZ334A, DSOZ334A, DSAZ254A, DSOZ254A, DSAZ204A, DSOZ204A, DSOS054A, DSOS104A, DSOS204A, DSOS254A, DSOS404A, DSOS604A, DSOS804A MSOS Series: MSOS054A, MSOS104A, MSOS204A, MSOS254A, MSOS404A, MSOS604A, MSOS804A DSO-X 3000G Series: DSO-X 3012G, DSO-X 3022G, DSO-X 3032G, DSO-X 3052G, DSO-X 3102G, DSO-X 3014G, DSO-X 3024G, DSO-X 3034G, DSO-X 3054G, DSO-X 3104G MSO-X 3000G Series: MSO-X 3012G, MSO-X 3022G, MSO-X 3032G, MSO-X 3052G, MSO-X 3102G, MSO-X 3014G, MSO-X 3024G, MSO-X 3034G, MSO-X 3054G, MSO-X 3104G DSA-X90000Q Series: DSA-X96204Q, DSO-X96204Q, DSA-X95004Q, DSO-X95004Q, DSA-X93304Q, DSO-X93304Q, DSA-X92504Q, DSO-X92504Q, DSA-X92004Q, DSO-X92004Q EXR400A Series: EXR408A, EXR404A EXR100A Series: EXR108A, EXR104A |
v | v |
| LeCroy | WaveRunner Series: WaveRunner 44Xi, WaveRunner 64Xi, WaveRunner 62Xi, WaveRunner 104Xi, WaveRunner 204Xi, WaveRunner 44Xi-A, WaveRunner 62Xi-A, WaveRunner 64Xi-A, WaveRunner 104Xi-A, WaveRunner 204Xi-A, WaveRunner 44MXi, WaveRunner 64MXi, WaveRunner 104MXi, WaveRunner 204MXi, WaveRunner 44MXi-A, WaveRunner 64MXi-A, WaveRunner 104MXi-A, WaveRunner 204MXi-A, WaveRunner 6030A, WaveRunner 6050A, WaveRunner 6051A, WaveRunner 6100A, WaveRunner 6200A, WaveRunner 604Zi, WaveRunner 606Zi, WaveRunner 610Zi, WaveRunner 620Zi, WaveRunner 625Zi, WaveRunner 640Zi, WaveRunner HRO 64Zi, WaveRunner HRO 66Zi WaveSurfer Series: WaveSurfer 24Xs, WaveSurfer 42Xs, WaveSurfer 44Xs, WaveSurfer 62Xs, WaveSurfer 64Xs, WaveSurfer 104Xs, WaveSurfer 24MXs-B, WaveSurfer 42MXs-B, WaveSurfer 44MXs-B, WaveSurfer 62MXs-B, WaveSurfer 64MXs-B, WaveSurfer 104MXs-B, WaveSurfer 422,WaveSurfer 424, WaveSurfer 432, WaveSurfer 452, WaveSurfer 434, WaveSurfer 454, WaveSurfer 24Xs-A, WaveSurfer 44Xs-A, WaveSurfer 42Xs-A, WaveSurfer 64Xs-A, WaveSurfer 62Xs-A, WaveSurfer 104Xs-A, WaveSurfer 24MX-A, WaveSurfer 44MX-A, WaveSurfer 42MX-A, WaveSurfer 64MX-A, WaveSurfer 62MX-A, WaveSurfer 104MX-A MSO Series: MSO 44MXs-B, MSO 64MXs-B, MSO 104MXs-B HDO4000 Series: HDO4022, HDO4024, HDO4032, HDO4034, HDO4054, HDO4104, HDO4022-MS, HDO4024-MS, HDO4032-MS, HDO4034-MS, HDO4054-MS, HDO4104-MS HDO6000 Series: HDO6034, HDO6054, HDO6104, HDO6034-MS, HDO6054-MS, HDO6104-MS SDA/DDA 8 Zi-A Series: SDA804Zi-A, SDA806Zi-A, SDA808Zi-A, SDA813Zi-A, SDA816Zi-A, SDA820Zi-A, SDA825Zi-A, SDA830Zi-A, SDA845Zi-A, DDA808Zi-A, DDA820Zi-A, DDA830Zi-A |
v | |
| Rohde & Schwarz | RTO1002, RTO1004, RTO1012, RTO1014, RTO1022, RTO1024, RTO1044, RTE1022, RTE1024, RTE1032, RTE1034, RTE1052, RTE1054, RTE1102, RTE1104, RTE1152, RTE1154, RTE1202, RTE1204, RTO2002, RTO2004, RTO2012, RTO2014, RTO2022, RTO2024, RTO2032, RTO2034, RTO2044, RTO2064, RTO64, RTM3002, RTM3004, RTP164, MXO44, MXO54, MXO58 | v | |
| Tektronix | TDS1001B, TDS1002B, TDS1012B,TDS2002B, TDS2004B, TDS2012B, TDS2014B, TDS2022B, TDS2024B, TDS3012, TDS3014, TDS3032, TDS3034, TDS3052, TDS3054, TDS3012B, TDS3014B, TDS3032B, TDS3034B, TDS3052B, TDS3054B, TDS3012C, TDS3014C, TDS3032C, TDS3034C, TDS3052C, TDS3054C, DPO2012, DPO2014, DPO2024, MSO2012, MSO2014, MSO2024 DPO3012, DPO3014, DPO3032, DPO3034, DPO3052, DPO3054, MSO3012, MSO3014, MSO3032, MSO3034, MSO3052, MSO3054 DPO4032, DPO4034, DPO4054, DPO4104, DPO4034B, DPO4054B, DPO4104B, MSO4032, MSO4034, MSO4054, MSO4104, MSO4034B, MSO4054B, MSO4104B, TDS5104, TDS5034, TDS5054, TDS5104B, TDS5034B, TDS5054B, DPO5034, DPO5054, DPO5104, DPO5204, MSO5034, MSO5054, MSO5104, MSO5204, DPO7054, DPO7104, DPO7254, DPO7354, MDO3012, MDO3014, MDO3022, MDO3024, MDO3032, MDO3034, MDO3052, MDO3054, MDO3102, MDO3104, MDO4054, MDO4104 TDS1012C, TDS1002C, TDS1001C, TDS7054, TDS7104, TDS7154, TDS7254, TDS7404, DPO7054C, DPO7104C, DPO7254C, DPO7354C, DPO72004B, DPO71604B, DPO71254B, DPO70804B, DPO70604B, DPO70404B, DPO72004, DPO71604, DPO71254, DPO70804, DPO70604, DPO70404, DSA72004B, DSA71604B, DSA71254B, DSA70804B, DSA70604B, DSA70404B, DSA72004, DSA71604, DSA71254, DSA70804, DSA70604, DSA70404, TDS2001C, TDS2002C, TDS2004C, TDS2012C, TDS2014C, TDS2022C, TDS2024C, MDO32, MDO34, MSO54, MSO56, MSO58, MSO64, MDO4014B-3, MDO4034B-3, MDO4054B-3, MDO4054B-6, MDO4104B-3, MDO4104B-6, MDO4024C, MDO4034C, MDO4054C, MDO4104C | v | v |
