USB 1.1 (USB 1.1)

USB 1.1 Protocol Analyzer settings. For Channel UI differences by product family, see Settings.

Supported Models

TravelBus

All TB1000/TB2000/TB3000 models are supported except F series.

LA3000/LA4000

LA3000/LA4000 is supported only on B series.

TravelLogic

TL3000/TL4000 is supported only on B series.

BusFinder

BF6000 is supported only on B series, all BF7000 models are supported.

Protocol Exerciser

PX2816B is supported.

MSO2000/3000

MSO2008E	MSO2116E	MSO2116B	MSO2216B	MSO2216B+	MSO2416B+
		●	●	●	●

MSO2216M+	MSO2116E+	MSO2116B+
●		●

All MSO3000 models are supported.

TravelScope 3000

All TS3000 models are supported.

Settings

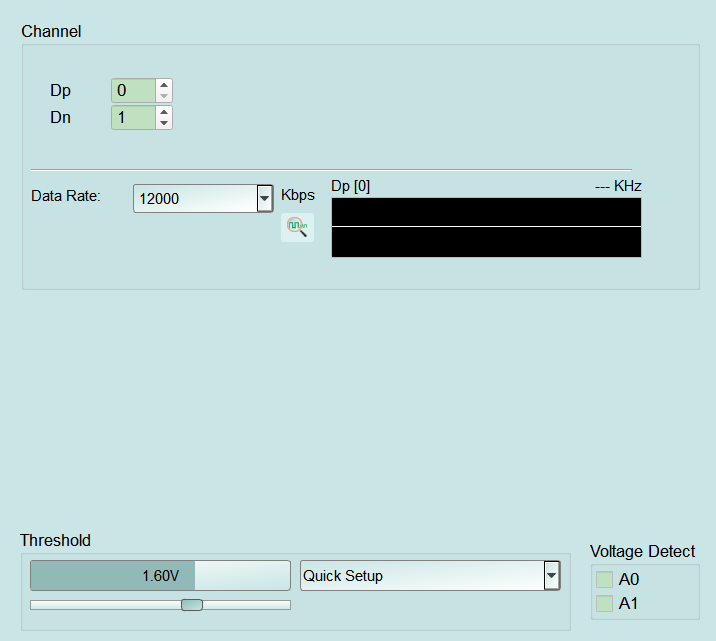

USB 1.1 Protocol Analyzer settings (TravelLogic series)

• Settings:
  • Data Rate: USB 1.1 speed in Kbps (e.g. Full Speed = 12000 Kbps = 12 Mbps). A wrong setting can shift decoding. Default: 12000 Kbps (Full Speed).

See also

• USB 1.1 — Decode settings
• USB 1.1 — Trigger settings
