USB PD (USB Power Delivery)

USB PD Protocol Analyzer settings. For Channel UI differences by product family, see Settings.

Supported Models

TravelBus

TB1000 is supported only on Plus series, TB2000/TB3000 is supported only on B series.

LA3000/LA4000

All LA3000 models are supported except F series, all LA4000 models are supported.

TravelLogic

All TL3000/TL4000 models are supported.

BusFinder

BF6000 is supported only on B series, all BF7000 models are supported.

Protocol Exerciser

PX2816B is supported.

MSO2000/3000

MSO1000/MSO2000 16-channel models are supported, all MSO3000 models are supported.

TravelScope 3000

All TS3000 models are supported.

Settings

USB PD Settings

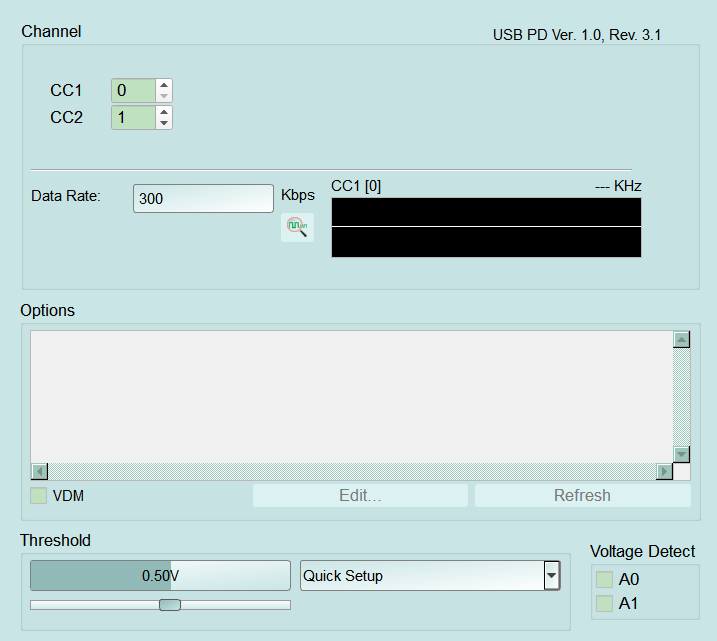

USB PD Protocol Analyzer settings (TravelLogic series)
  • Settings:
    • Data Rate: USB PD BMC bit rate in Kbps. A wrong setting can shift decoding. Default: 600 Kbps.
    • VDM: Enable a custom Vendor Defined Message (VDM) decode list. When checked, Edit... / 更新列表 are enabled (Enable); when cleared they are disabled (Disable). Default: cleared.
    • Edit...: Edit the VDM list (available only when VDM is checked).
    • 更新列表: Reload the VDM list (available only when VDM is checked).
