MCTP over SMBus/I2C (MCTP over SMBus/I2C)

MCTP over SMBus/I²C Protocol Analyzer settings. SMBus and I²C share the same bus and the same MCTP binding, so one Protocol Analyzer mode covers both. For Channel UI differences by product family, see Settings.

Supported Models

TravelBus

All TB3000 models are supported.

LA3000/LA4000

All LA3000/LA4000 models are supported.

TravelLogic

TL3000 is supported only on B series, all TL4000 models are supported.

BusFinder

BF6000 is supported only on B series, all BF7000 models are supported.

MSO2000/3000

All MSO1000/MSO2000 models are supported.

Settings

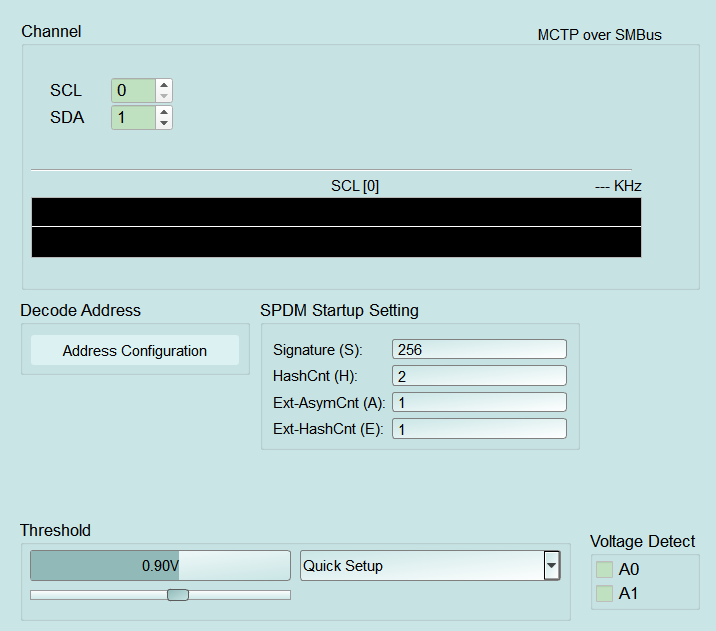

Settings:
- Decode Address: Configure which bus addresses are treated as MCTP endpoints. Open Address Configuration to add/remove rows. If the list is empty, the decoder uses MCTP specification defaults.
  - Address Configuration: + Add / Remove rows of Address and Type. Types include Static I2C (no MCTP decode), MCTP (I3C), MCTP (I2C). New-row Default Type: MCTP (I3C).
- SPDM Startup Setting: Fallback Signature / Hash / Ext counts used to parse SPDM bodies before algorithm negotiation latches sizes. Wrong values can mis-parse early SPDM messages.
  - Signature (S): Signature field length in bytes (0–512). Default: 256.
  - HashCnt (H): Hash count (1–15). Default: 2.
  - Ext-AsymCnt (A): Extended asymmetric count (0–15). Default: 1.

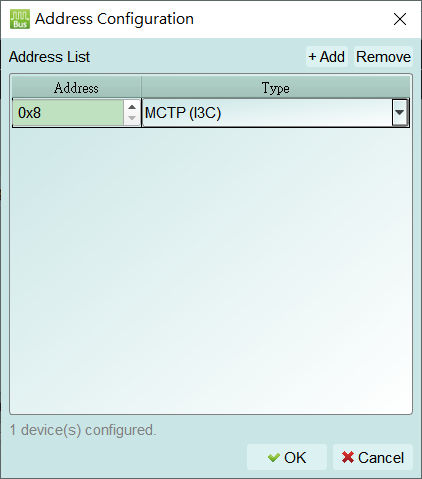

  - Ext-HashCnt (E): Extended hash count (0–15). Default: 1. Open Address Configuration under Decode Address to choose which bus addresses are decoded as MCTP endpoints:
+ Add / Remove: Add or remove address rows. If the list is empty, the decoder uses MCTP specification defaults.
Address: Bus address for that row.
Type: Static I2C (no MCTP decode), MCTP (I3C), MCTP (I2C). New-row Default Type: MCTP (I3C).
