MIPI DSI (MIPI Display Serial Interface)

MIPI DSI Protocol Analyzer settings.

For application notes, probe connection, and measurement details, see Protocol Solution — MIPI D-PHY.

Supported Models

BusFinder

All BF7000 models are supported. This feature requires purchasing an additional option.

Settings

MIPI DSI Settings

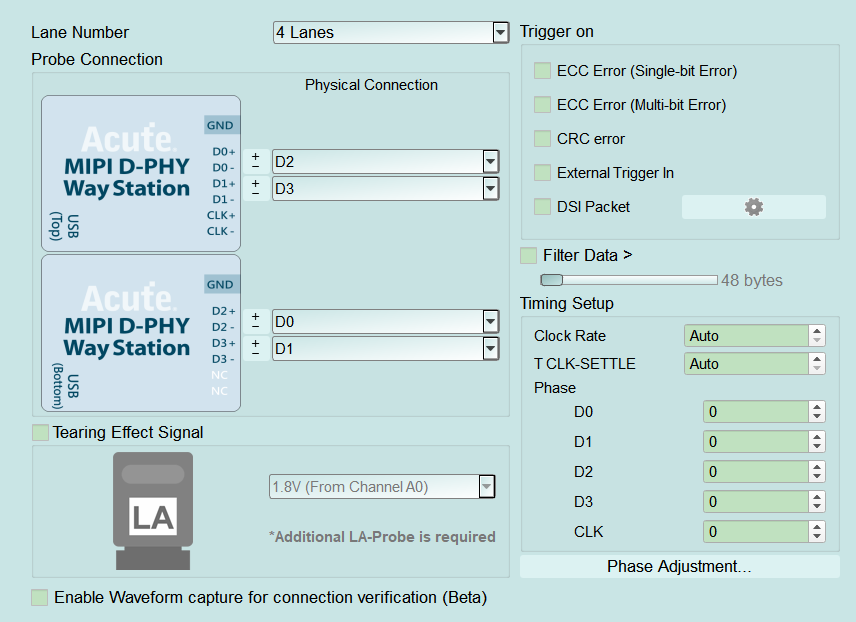

MIPI DSI Protocol Analyzer settings (BusFinder / LA3000/LA4000 series)
  • Settings:
    • Lane Number: Number of lanes in use (e.g. 4 Lanes). Default: 4.
    • Probe Connection: Way Station mapping for D0–D3/CLK; optional Tearing Effect (extra LA probe; Default: cleared) and connection-verification waveform capture (Beta).
    • Filter Data >: When checked the slider is enabled (Enable). Default: cleared.
    • Timing Setup: Clock Rate / T CLK-SETTLE (Auto), per-lane/CLK Phase (Default 0), and Phase Adjustment.

  • Trigger settings:

    • Trigger on: ECC, CRC, External Trigger In, and DSI Packet (gear enabled (Enable) when checked; opens DSI Trigger Settings). Default: all cleared.
      • Transmission Type: Select the transmission type (e.g. HS or LP).
      • Direction: Host Sourced or Peripheral Sourced.
      • Data Type / DCS: Select the data type; DCS is field enabled (Enable) depending on Data Type.
      • Header: Set VC/DT, Data 0, Data 1, and ECC (XXh = don't care for that field).
      • Data: Payload pattern per byte (e.g. Byte 0–27); XXh = don't care per byte.
      • Default: Restore the dialog to default trigger conditions. Open this dialog from the gear next to Trigger on → DSI Packet to trigger on DSI packet fields:

  • Transmission Type / Direction / Data Type / DCS: Choose transfer type, direction, and data type; DCS availability depends on Data Type.

  • Header: VC/DT, Data 0, Data 1, ECC; XXh = don't care for that field.
  • Data: Payload pattern (e.g. Byte 0–27); XXh = don't care per byte.
  • Default: Restore the dialog to default trigger conditions.

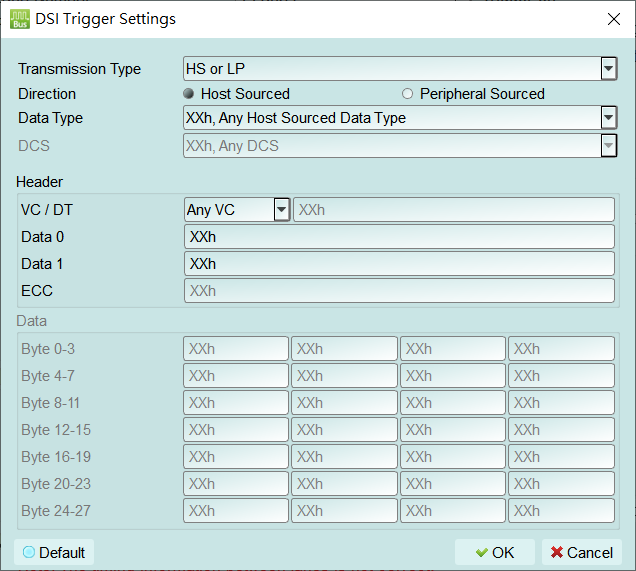

DSI Trigger Settings

MIPI DSI: DSI Trigger Settings (DSI Packet)
