USB PD 3 (USB Power Delivery)

USB PD (Power Delivery) 2.0/3.0 uses BMC (Biphase Mark Coding) for Type-C power/charging (laptops, tablets, phones, power banks, etc.); up to 240 W (e.g. Rev 3.1).

Wrong CC wiring or VDM config affects decode and vendor messages. See Settings.

Decode Settings

Decode Settings

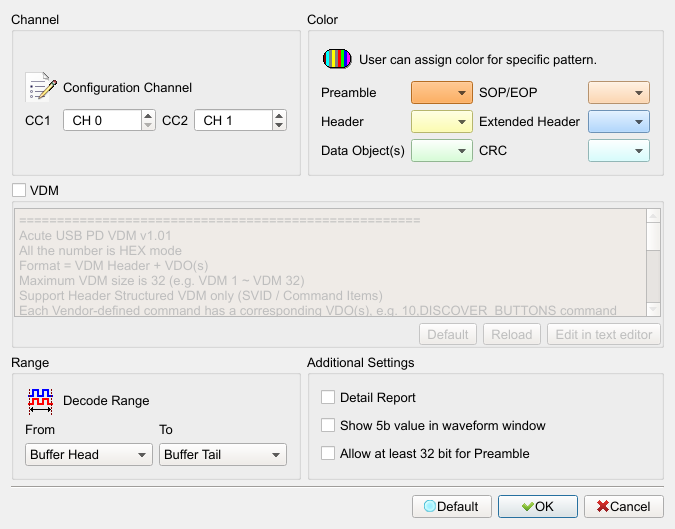

USB PD Decode Settings
  • Channel: Configuration Channel (CC) **CC1** and **CC2**.
  • VDM: When checked, field enabled (Enable) Vendor Defined Message; reads Structured VDM SVID/Command from the config file (Edit/Refresh).

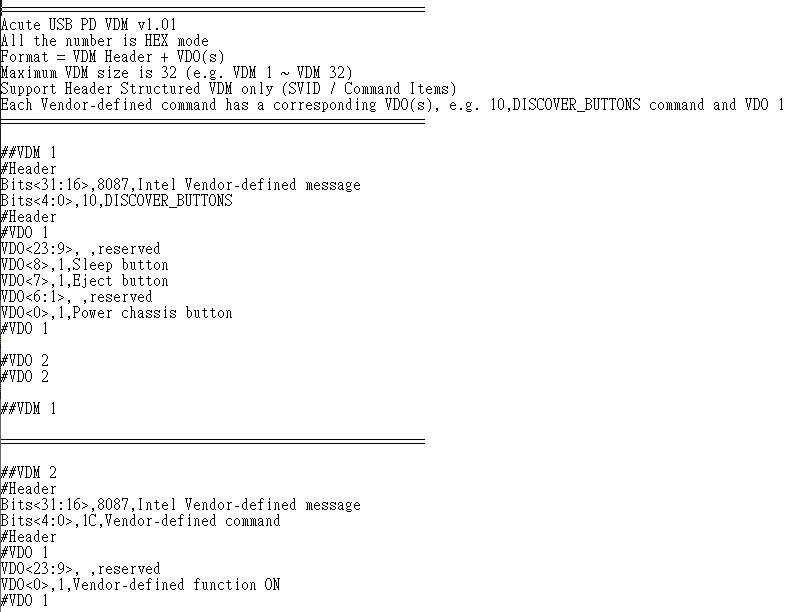

VDM file format

VDM configure file format
  • Up to 32 VDMs (##VDM1–##VDM32). Leading ##XXX is a keyword—do not reuse elsewhere. Each VDM has a Header (first Data Object) plus VDO(s) for the Command response.
  • Header is wrapped by two #Header lines for SVID/Command. Example: Bits<31:16>,8087,Intel Vendor-defined message; Bits<4:0>,10,DISCOVER_BUTTONS.
  • VDOs use #VDO 1, #VDO 2, … for bit fields (reserved or function bits). Other Commands (e.g. 1Ch) can be separate ##VDM blocks.
  • Show 5b value in waveform: Show 5b instead of 4b when checked. Default: cleared.
  • Details Report: Finer bit decode of Data Obj(s). Field enabled (Enable) when checked. Default: cleared.
  • Preamble 32b: Default: cleared.

Result

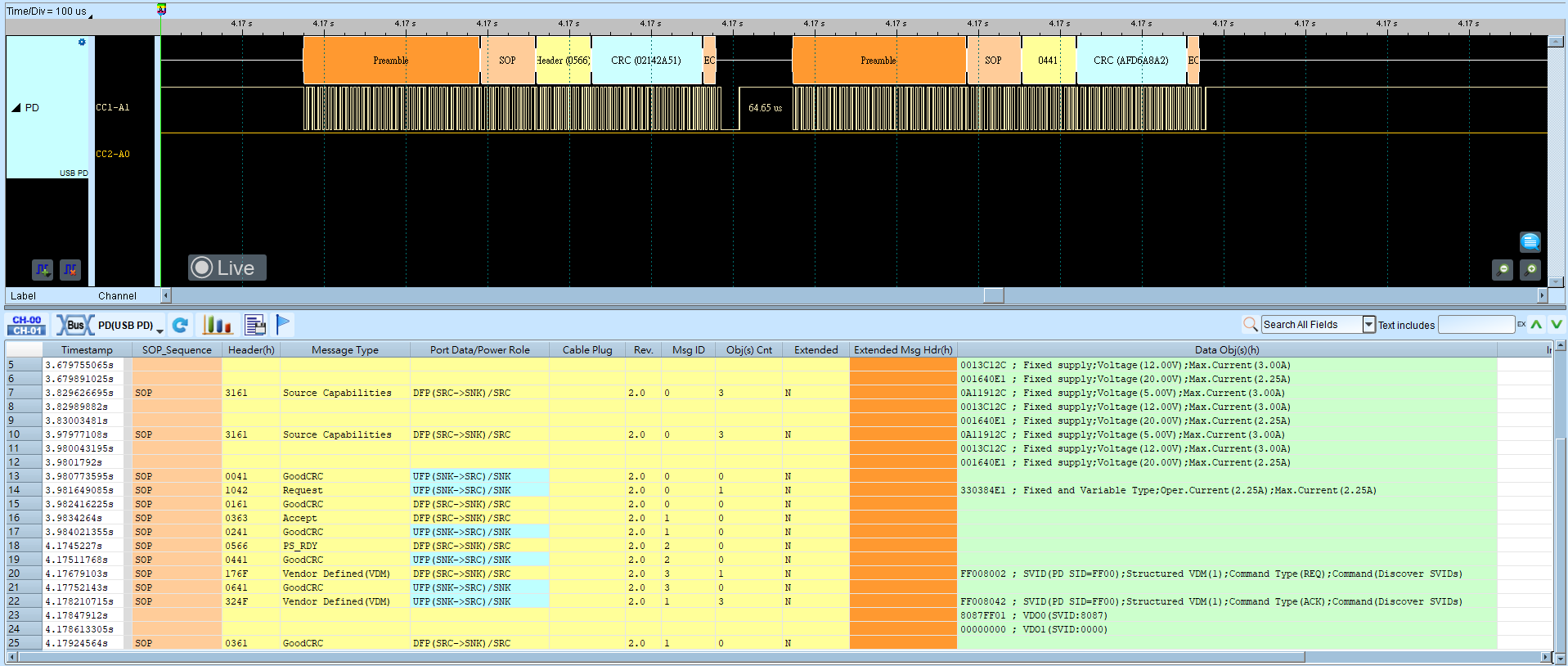

USB PD Result

USB PD decode result
