7-Segment

A seven-segment display is a common electronic device for showing decimal numerals by lighting combinations of seven LEDs; the adjacent dot is the decimal point.

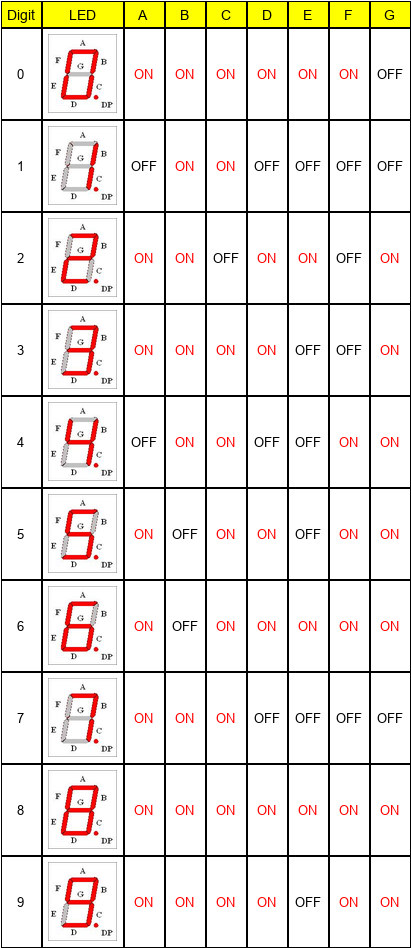

7-Segment segments

Seven-segment layout

See Settings for channel prefixes.

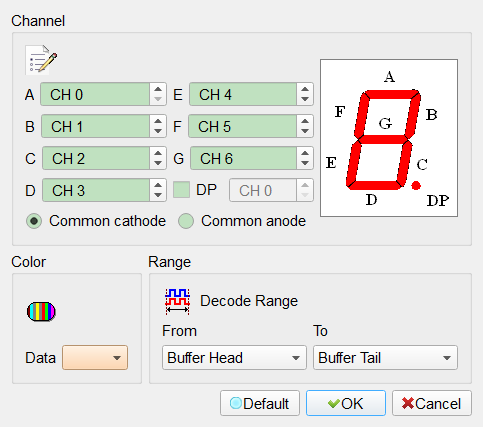

Decode Settings

Decode Settings

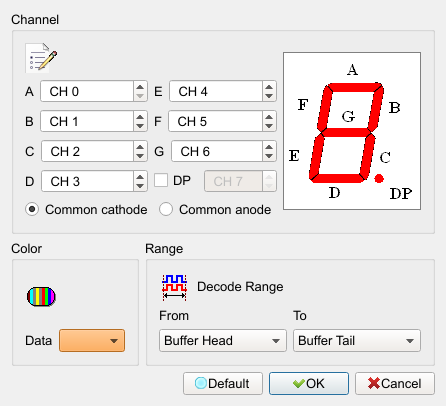

7-Segment Decode Settings
  • Channel: Assign 7-Segment pins (A–G) to logic analyzer channels.
  • DP: Decode the decimal point. Field enabled (Enable) when checked. Default: cleared.
  • Common cathode / anode: Common cathode (shared Low) or common anode (shared High). Default: Common cathode.

Result

7-Segment Result

7-Segment decode result
