MDDI (Mobile Display Digital Interface)
The Mobile Display Digital Interface (MDDI) is a cost-effective low-power solution that enables high-speed short-range communication with a display device using a digital packet data link for connecting portable computing, communication, and entertainment devices to wearable micro displays. This decoder is based on VESA Mobile Display Digital Interface Standard Version 1.2; only Type I communication is supported.
Wrong STB / D0+/- wiring or D0 source selection yields incorrect decode. For channel-prefix differences, see Settings.

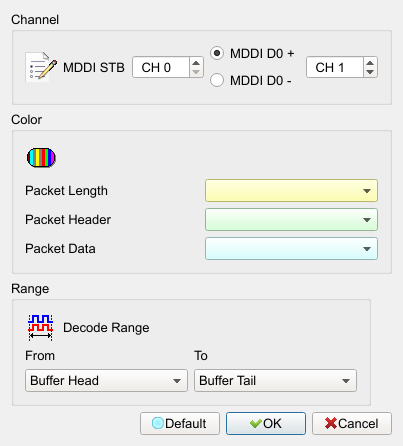

Decode Settings
- Channel Settings:
- MDDI STB: MDDI Strobe channel.
- MDDI D0+/-: MDDI Data 0 channel. Choose the data source from Data 0+ or Data 0−. Default: MDDI D0 +.

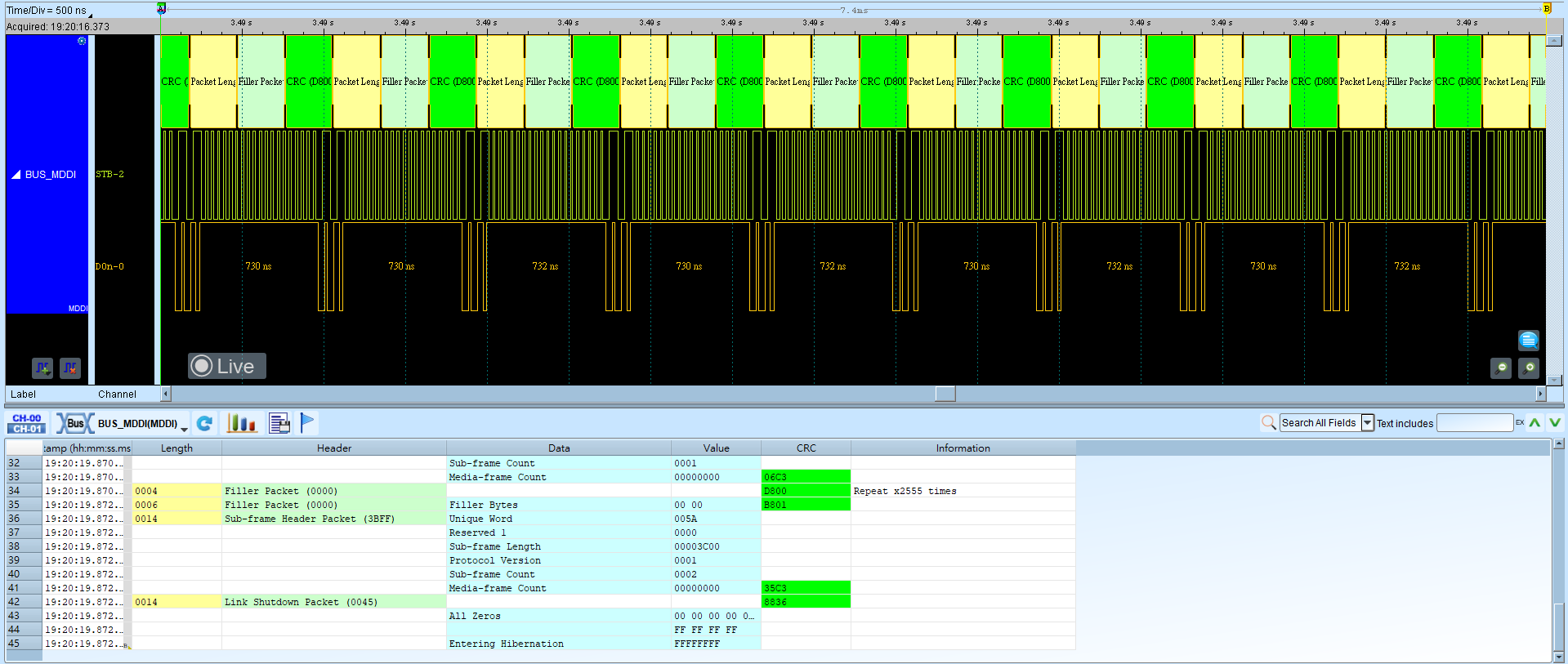

Result
