ITU-R BT.656 (CCIR656)

ITU-R BT.656 (CCIR656), from the ITU Radiocommunication Sector, is a digital video data format. It uses YUV color coding (luminance and two chrominance signals), which needs less bandwidth than RGB coding.

Data Bits or channel assignment must match the source; otherwise decode fails. For channel-prefix differences, see Settings.

Decode Settings

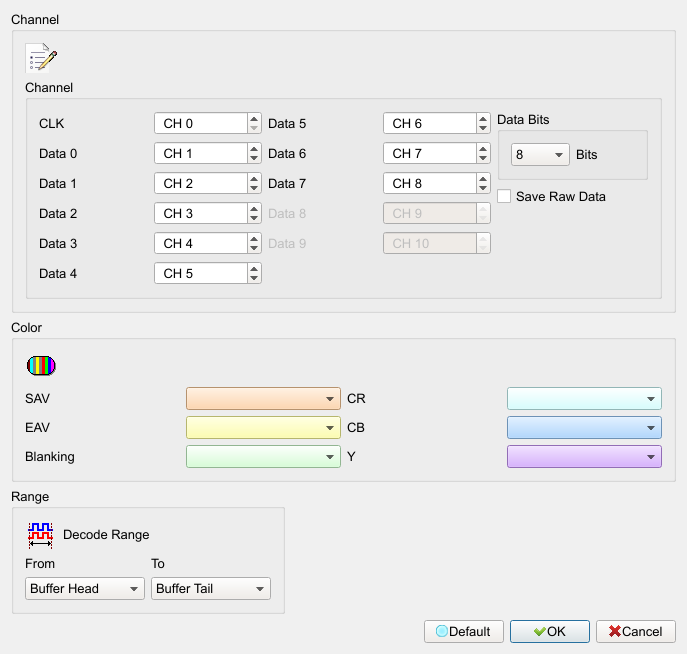

Decode Settings

ITU-R BT.656 Decode Settings
  • Channel: Assign the DUT signal pins to logic analyzer channels.
  • Data Bits: Data bus width (8/10). Default is 8. In 8-bit mode, D8/D9 are Field disabled (Disable); in 10-bit mode those channels are Field enabled (Enable).
  • Save Raw Data: Save the analysis result as a .bin file. Field enabled (Enable) when checked. Default is unchecked.
