Line Encoding

Digital information can be encoded as a digital signal. Choice of line code depends on requirements, medium, and equipment. The simplest mapping assigns voltage levels to binary 0 and 1; more complex codes improve performance.

Common codes:

NRZI (Non return to zero, inverted): Two modes:

NRZI (Transition occurs for a one): A 1 causes a transition; a 0 does not. Example: "110100110" with initial 1 → "011000100".

NRZI (Transition occurs for a zero): A 0 causes a transition; a 1 does not. Example: "001011001" with initial 1 → "011000100".

Manchester: A mid-bit transition every bit period.

Manchester (Thomas): High-to-low is 1; low-to-high is 0. Example: "0010110010" → "01 01 10 01 10 10 01 01 10 01".

Manchester (IEEE802.3): High-to-low is 0; low-to-high is 1. Example: "0010110010" → "10 10 01 10 01 01 10 10 01 10".

Differential Manchester: Always a mid-bit transition; a start-of-bit transition means 0, otherwise 1. Example: "0011101011" → "10 10 01 10 01 01 10 10 01 10".

AMI (Alternate Mark Inversion): Three levels (positive / zero / negative).

AMI (Standard): 0 is level 0; 1 alternates +/-.

AMI (B8ZS): Special substitution for eight consecutive zeros (e.g. if 1 is +, 00000000 → 000+-0-+).

AMI (HDB3): Special handling for four consecutive zeros (by parity and prior 1 polarity).

MLT-3: 0 holds level; 1 steps through 0, +, 0, -.

Pseudoternary: 0 alternates +/-; 1 is level 0.

CMI: 0 is "01"; 1 alternates "00" / "11".

Biphase Mark: Example: "0010110010" → "11 00 10 10 10 11 01 00 10 10".

Miller: Used in RFID. Example: "0010110010" → "11 00 01 11 10 01 11 00 01 11".

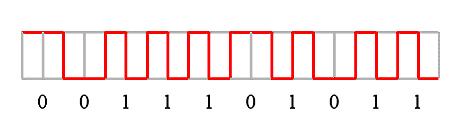

Modified Miller: Idle high; example "1011001010":

Modified Miller

Modified Miller encoding example

Wrong Format or Data Rate yields incorrect encode/display; with Auto-Detect Data Rate checked, the manual rate field is disabled (Disable). For channel-prefix differences, see Settings.

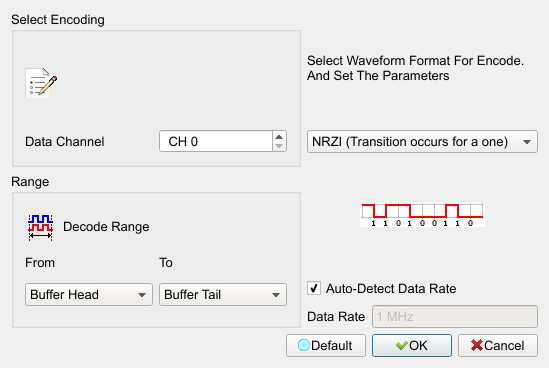

Decode Settings

Decode Settings

Line Encoding Decode Settings
  • Channel: Assign the signal channel0.
  • Format: Select the line code. Default: NRZI (Transition occurs for a one).
    • NRZI (Transition occurs for a one)
    • NRZI (Transition occurs for a zero)
    • Manchester (Thomas)
    • Manchester (IEEE802.3)
    • Differential Manchester
    • AMI (Standard)
    • AMI (B8ZS)
    • AMI (HDB3)
    • Pseudoternary
    • MLT-3
    • CMI
    • Biphase Mark Encode
    • Miller
    • Modified Miller
  • Auto-Detect Data Rate: Auto-detect the data rate; when checked, the manual Data Rate field is disabled (Disable). Default: checked. Manual placeholder text: 1 MHz.

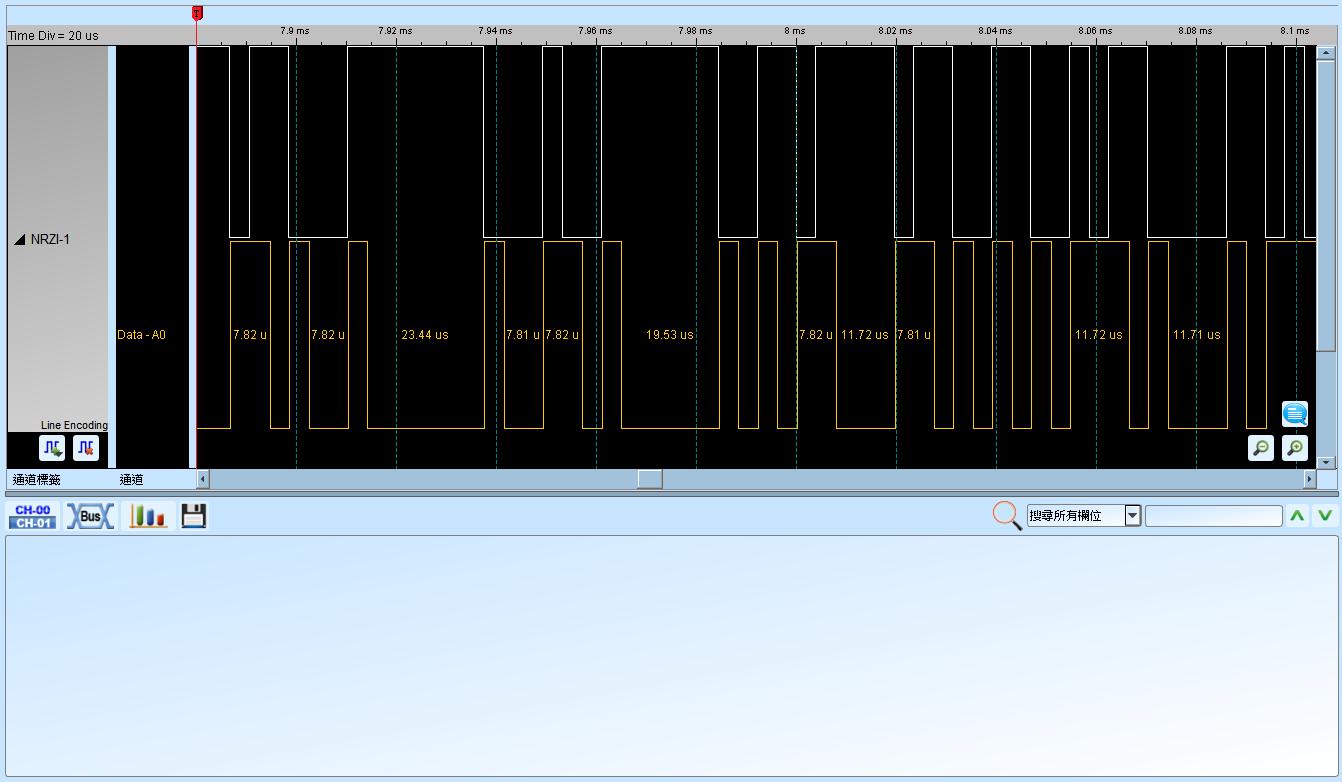

Result

Line Encoding Result

Line Encoding decode result
