DALI (Digital Addressable Lighting Interface)

Digital Addressable Lighting Interface (DALI) is a non-proprietary lighting-control standard for network-based building lighting. It sends 19-bit addresses and receives 11-bit replies, supporting up to 64 ballast addresses and 16 group broadcasts.

Wrong Data channel prevents decode. For channel-prefix differences, see Settings.

Decode Settings

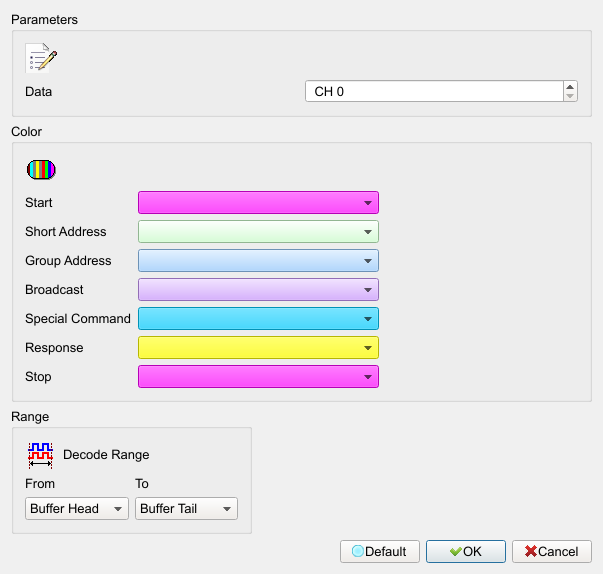

DALI Decode Settings

• Data Channel: Assign the DALI data signal channel.

Result

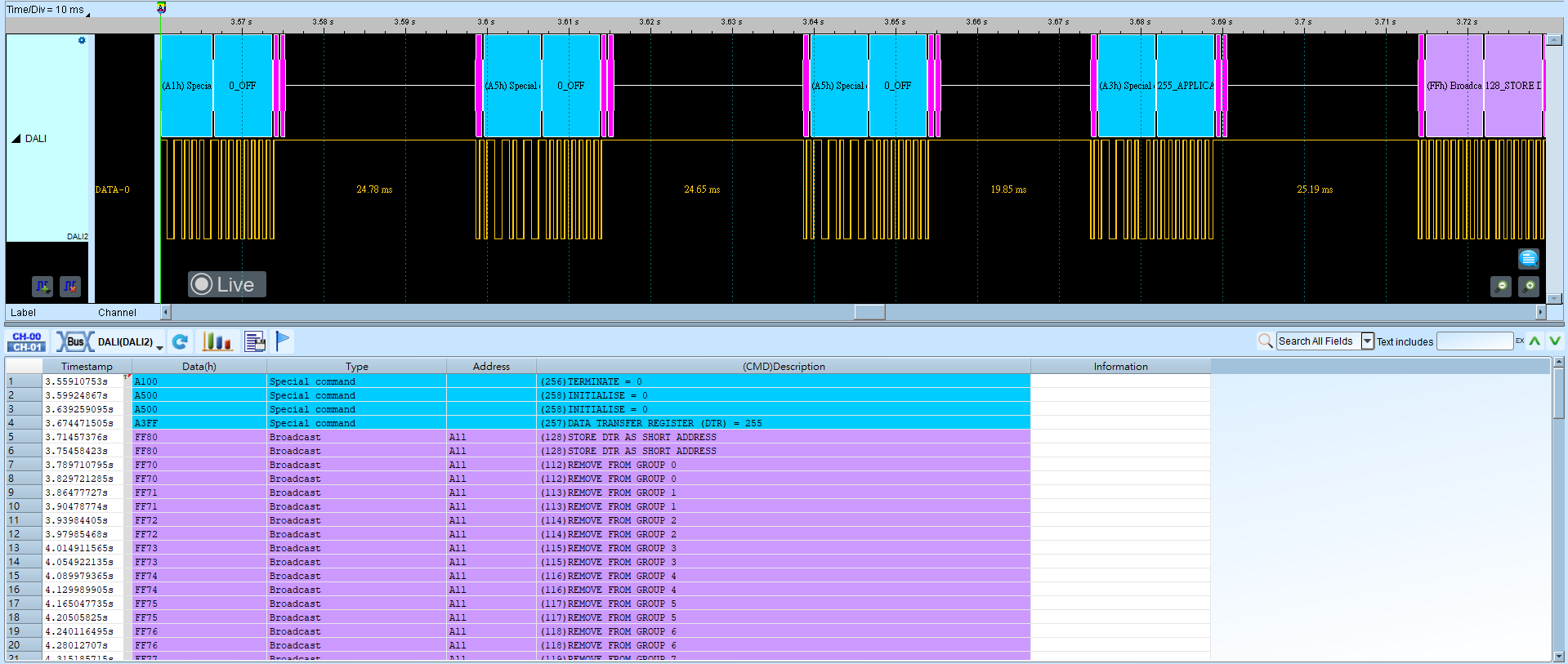

DALI decode result

See also

• DALI — Protocol Analyzer settings
