ISELED Digital RGB (ISELED Digital RGB LED)

ISELED (Integrated Smart Embedded LED) is a smart embedded LED technology that combines LED luminous performance with IC control for precise, flexible lighting control in automotive, architectural, and consumer electronics.

Wrong channel assignment prevents correct decode. For channel-prefix differences, see Settings.

Decode Settings

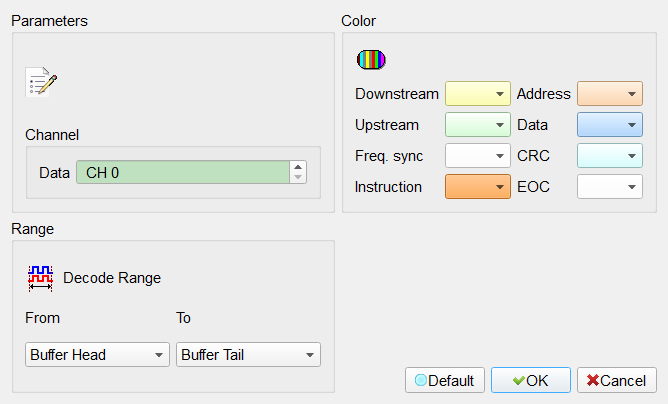

ISELED Digital RGB Decode Settings

• Channel: Assign the ISELED data signal channel on the logic analyzer.

Result

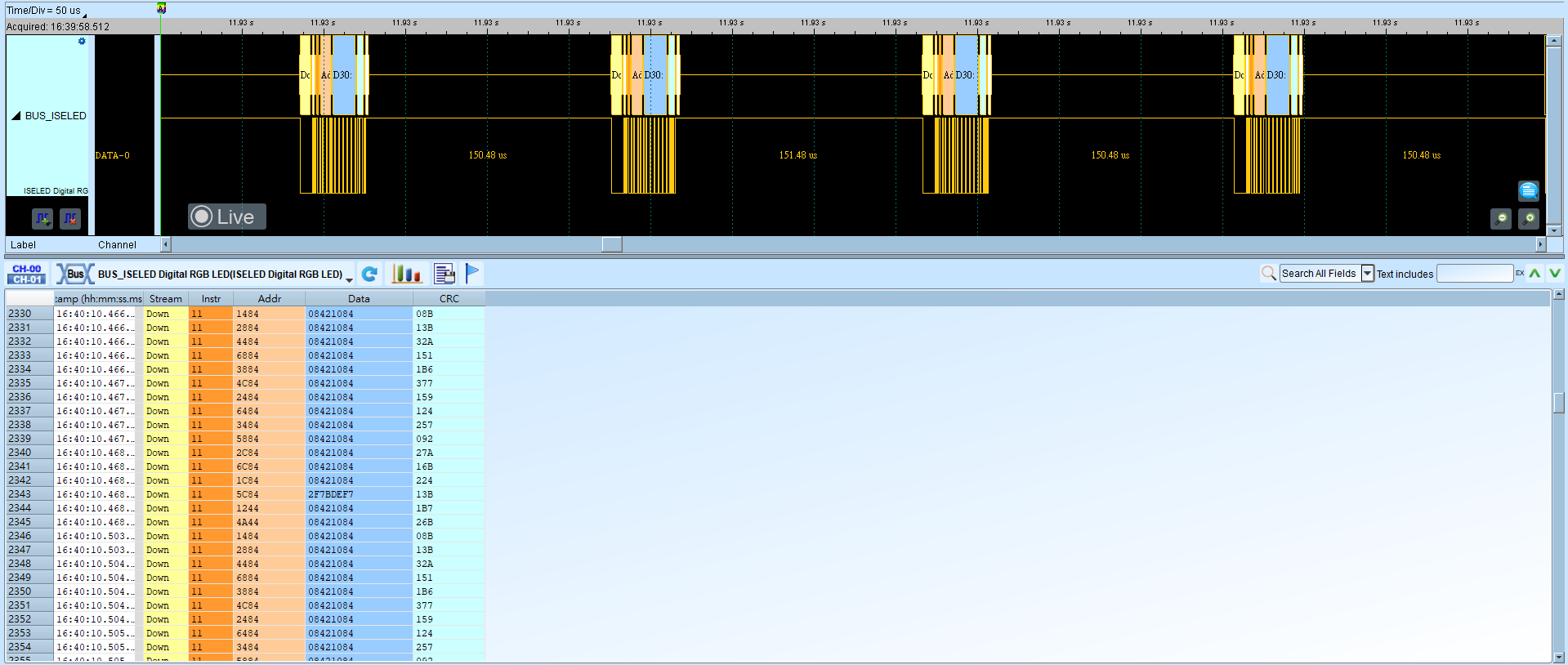

ISELED Digital RGB decode result
