BSD (Bit Serial Device)

BSD (Bit Serial Device) is a serial communications protocol for battery monitoring in automotive applications.

See Settings for channel prefixes.

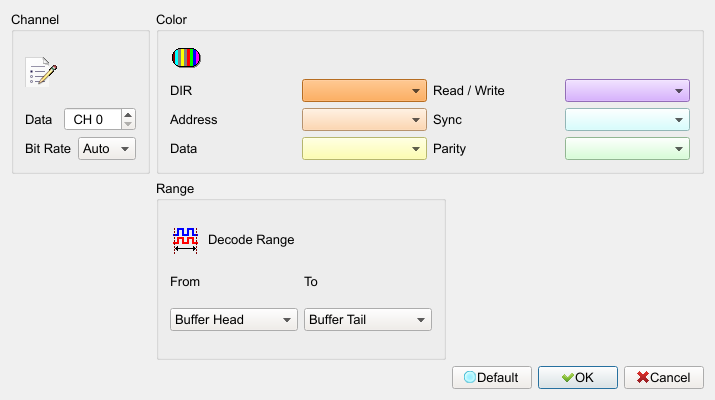

Decode Settings

BSD Decode Settings

• Data: Assign the BSD data channel2.
• Bit rate: Auto (detect) or 1200. Default: Auto.

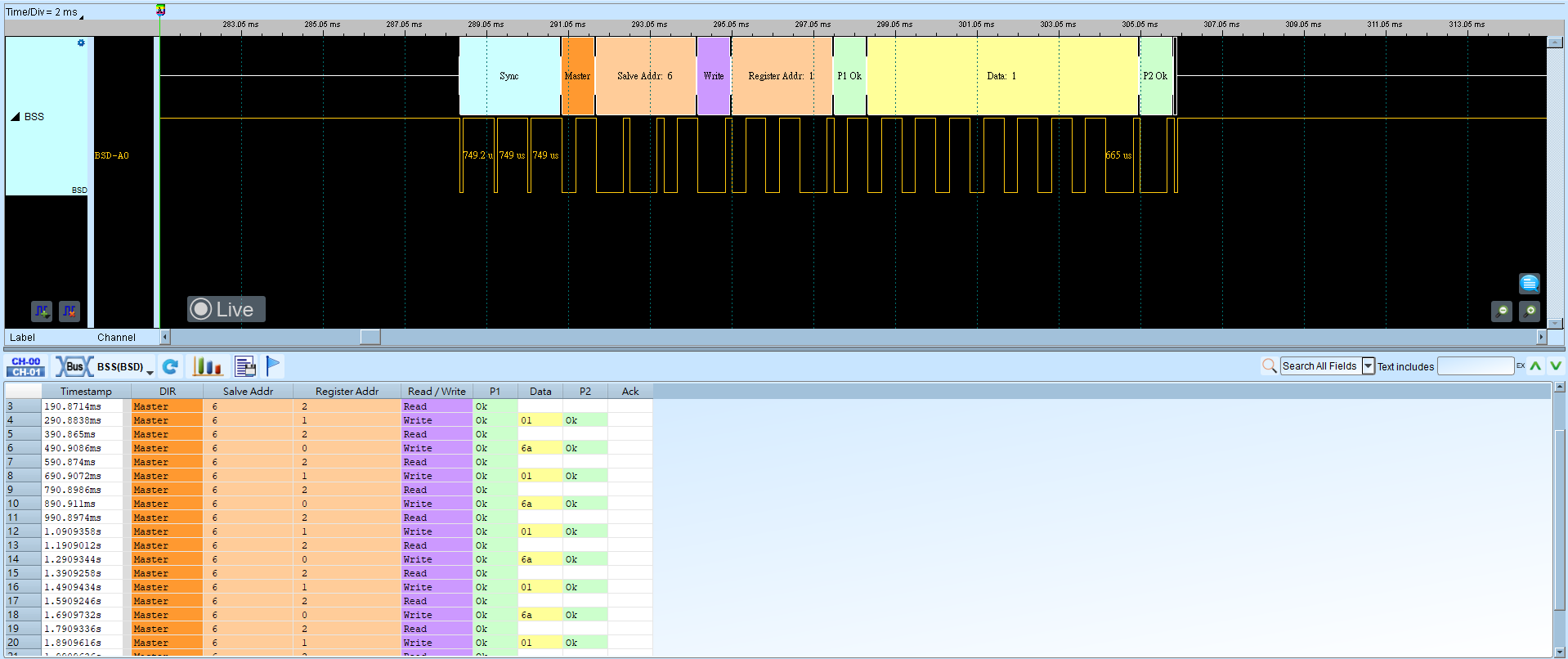

Result

BSD decode result
