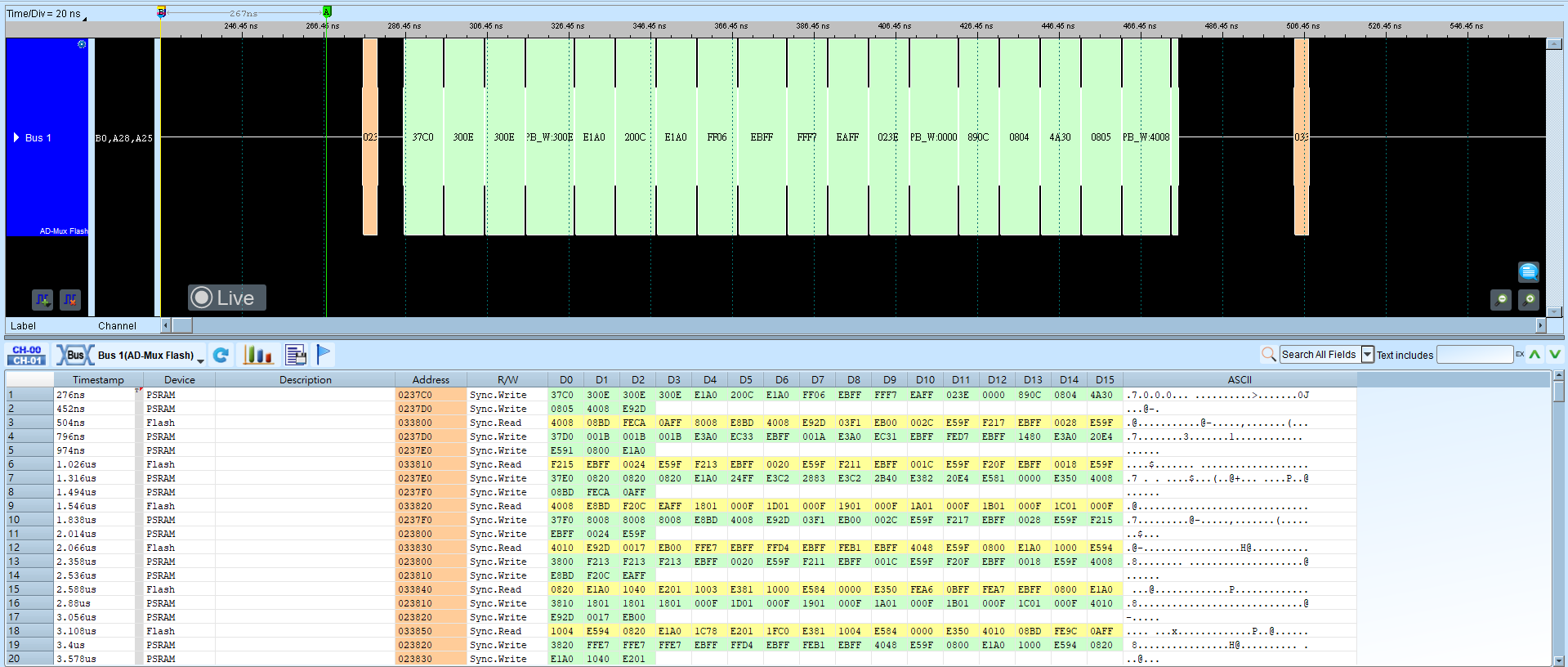

A/D Mux Flash (A/D Multiplexed Flash)

AD-Mux Flash is a parallel flash that uses an Address/Data multiplexed interface to reduce pin count versus a full parallel Address+Data bus.

See Settings for channel prefixes.

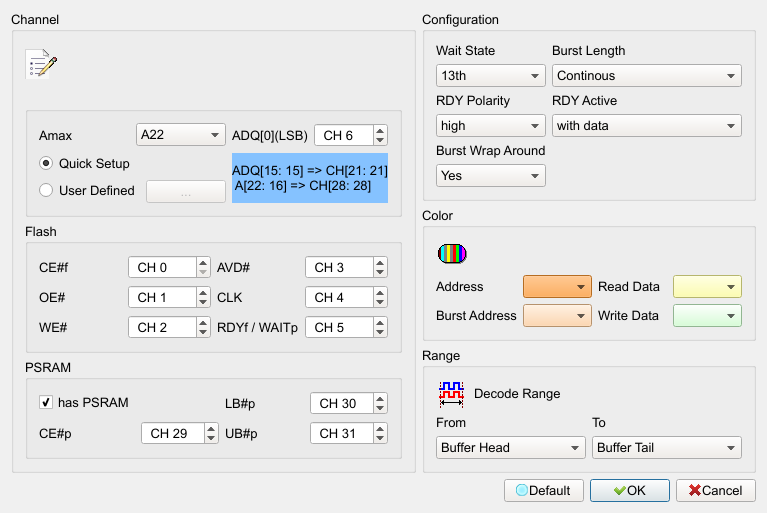

Decode Settings

Amax: Number of address pins (depends on density). Default: A22.

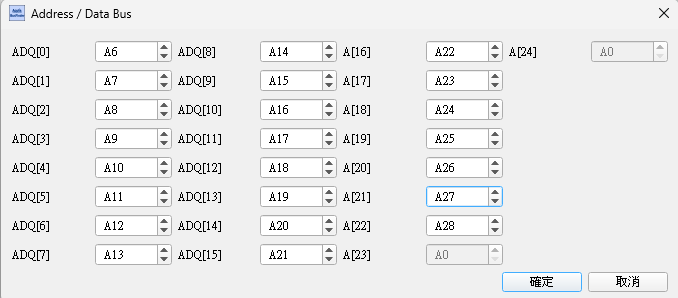

Quick Setup / User Defined: Quick Setup only needs ADQ[0] (LSB); other channels auto-increment. User Defined opens the channel dialog. Default: Quick Setup.

Flash: Flash control pins (CE#f, OE#, WE#, AVD#, CLK, RDYf/WAITp, etc.).
PSRAM: PSRAM control pins. Some MCPs include Flash and PSRAM; checking has PSRAM decodes PSRAM and enables (Enable) CE#p / LB#p / UB#p. Default: checked.
Configuration: Command-programmable parameters; set the actual register values here so capture analysis matches the device.
- Wait State: Default: 13th.
- Burst Length: Default: Continous (Continuous).
- RDY Polarity: Default: high.
- Burst Wrap Around: Default: Yes.
- RDY Active: Default: with data.
