HD Audio (High Definition Audio)
HD Audio (Intel High Definition Audio) is an Intel audio technology introduced in 2004 that advances on-board audio beyond AC97.
Wrong Direction (SDI / SDO) changes analysis rules and field color options. For channel-prefix differences, see Settings.

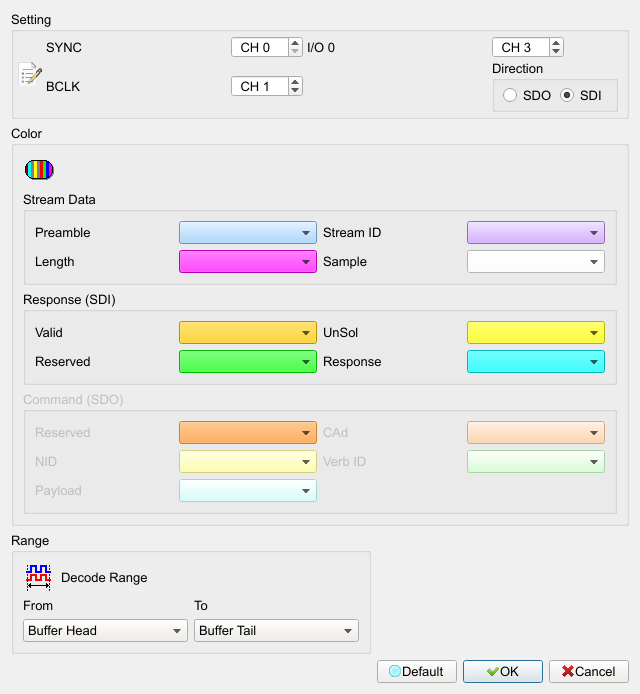

Decode Settings
- Channel:
- SYNC: Assign the SYNC channel0.
- BCLK: Assign the BCLK channel.
- I/O 0: Assign the I/O data channel.
- Direction: Decode I/O as SDI or SDO; this changes analysis rules and the color-coded options below. Default: SDI.

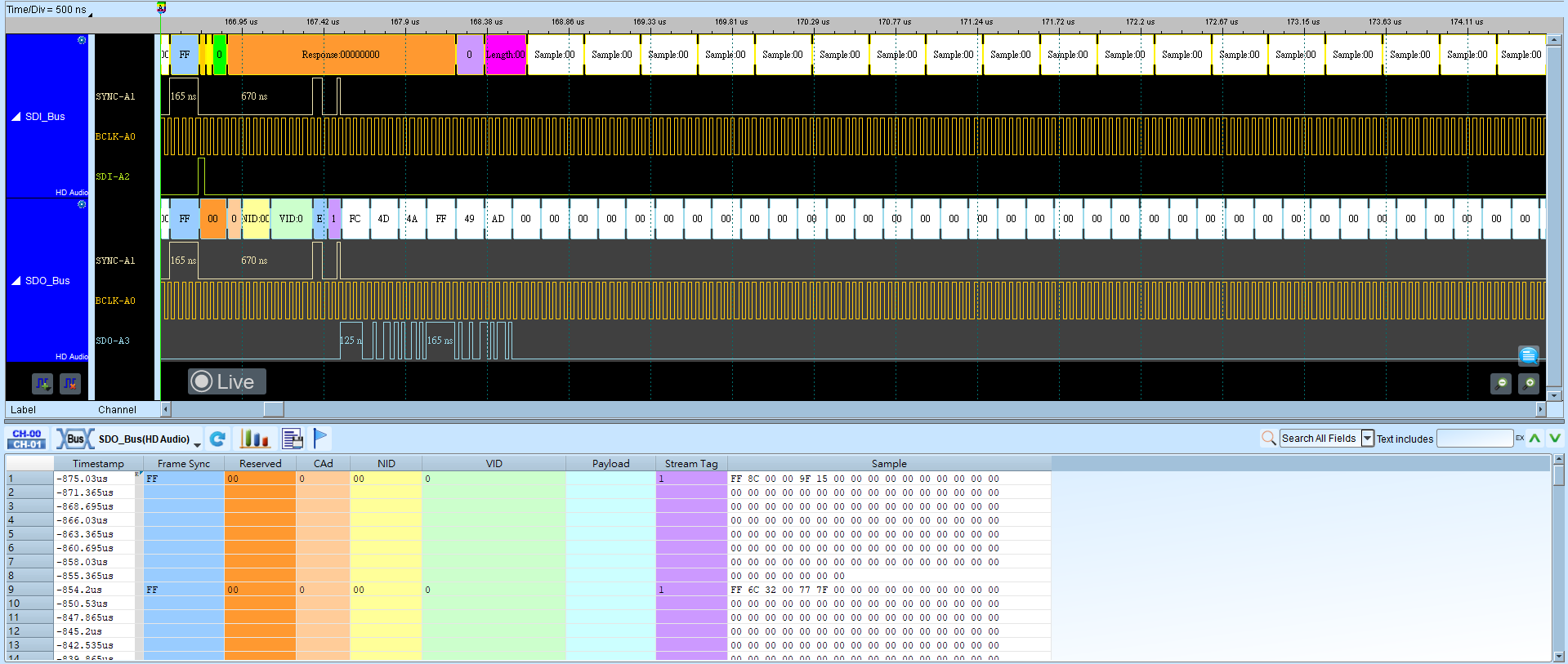

Result
