LPT (Parallel Port)
LPT (Line Printer Terminal Port) has been a common PC parallel interface since the 1980s, primarily for printers and other peripherals. This decode supports EPP Mode only.
When /nInit or /nIntr is cleared, that channel is field disabled (Disable). For channel-prefix differences, see Settings.

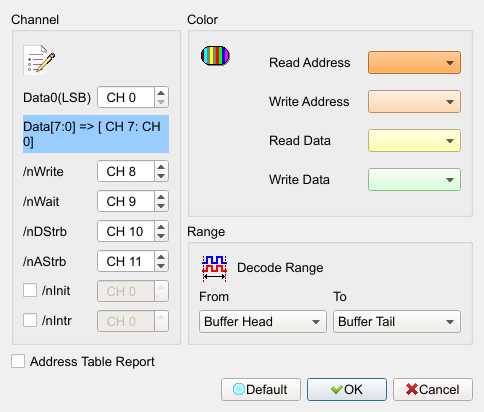

Decode Settings
- Data0 (LSB): Eight data channels; set only the LSB—others are assigned automatically.
- /nWrite: Indicates transfer direction.
- /nWait: Acknowledges that a transfer has finished.
- /nDStrb: Indicates a data cycle.
- /nAStrb: Indicates an address cycle.
- /nInit: Termination to return to Compatibility mode; optional. Field enabled (Enable) when checked. Default: cleared.
- /nIntr: Interrupt signal; optional. Field enabled (Enable) when checked. Default: cleared.
- Report: Report-type option. Field enabled (Enable) when checked. Default: cleared.

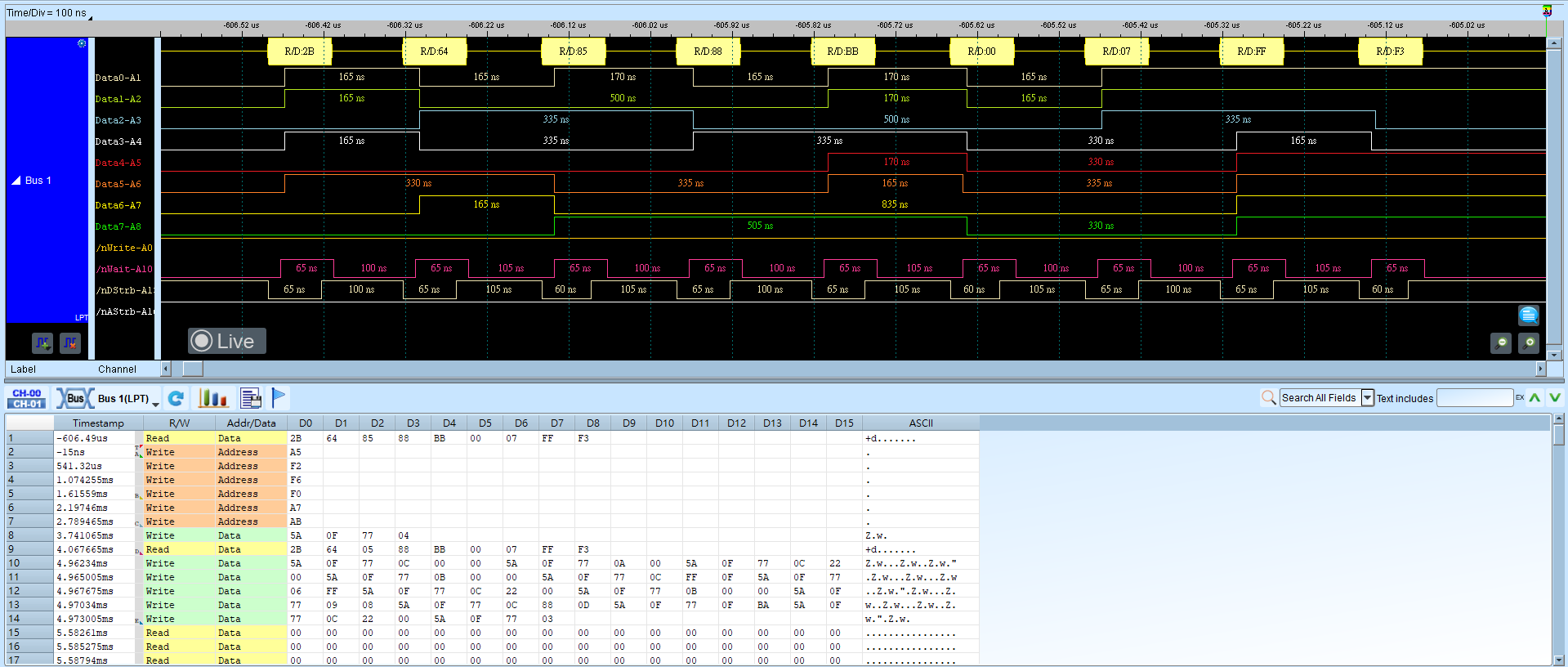

Result
