Special protocol decodes

Most protocol decodes display data as text, but some can show the data in its original form, such as audio (I2S decode), images, or analog waveforms (ADC decode).

UART / CAN / FlexRay protocol decodes (since 2009/09, LA Viewer Ver 2.0): The data is displayed by bit position so you can count the bit number.

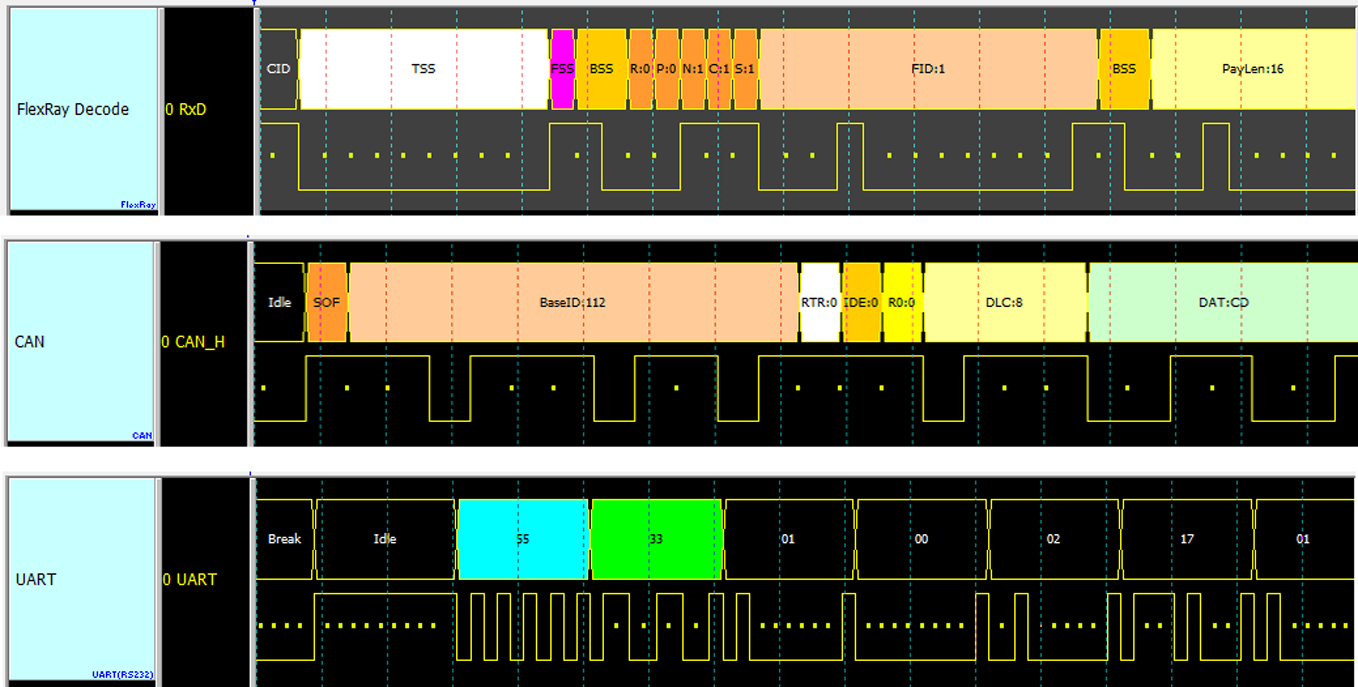

UART / CAN / FlexRay decode with data shown by bit position

S/PDIF analysis (since 2010/11, LA Viewer Ver 2.5): Display the data as a sound waveform.

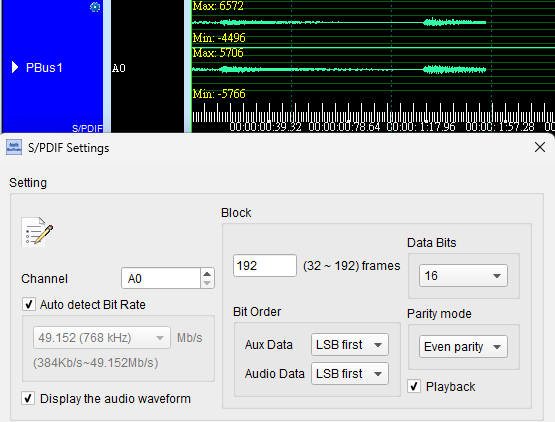

S/PDIF decode shown as a sound waveform

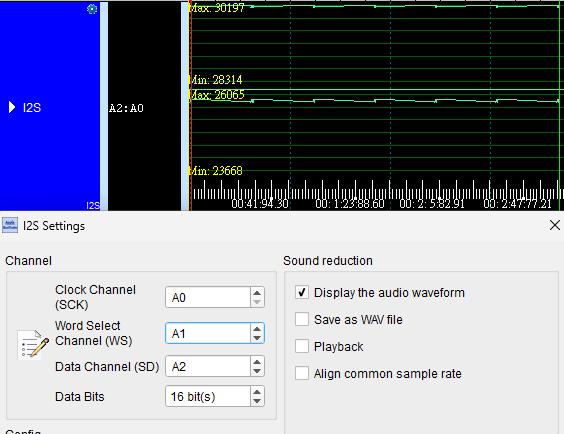

I2S analysis (since 2011/09, LA Viewer Ver 2.6.3): Display the data as a sound waveform.

ADC protocol decode: Display the input data as a graph.

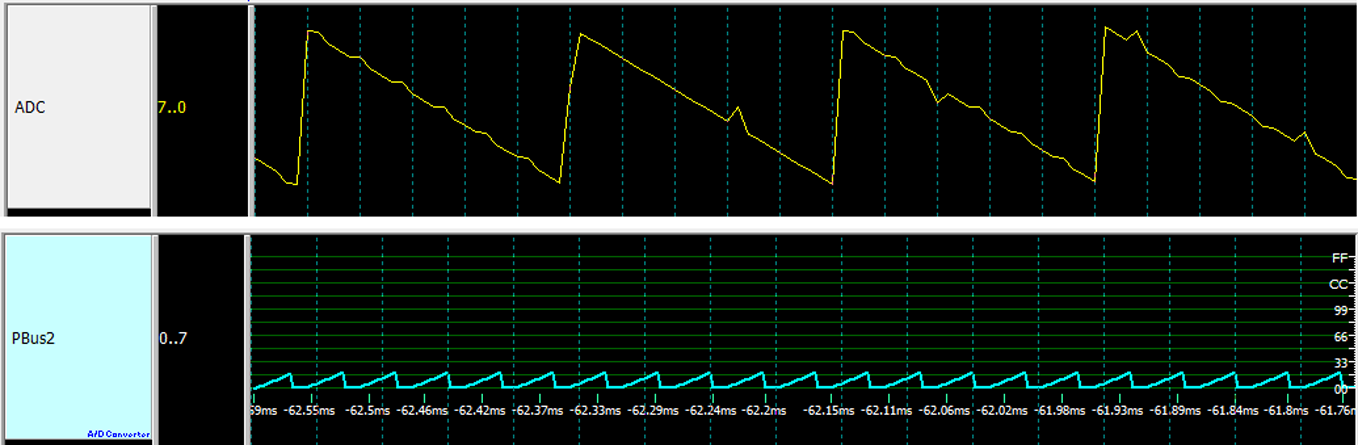

ADC decode with input data plotted as a graph

PWM analysis (since 2012/08, LA Viewer Ver 2.7.3): Reconstruct and display the data in the waveform window as a percentage or frequency.

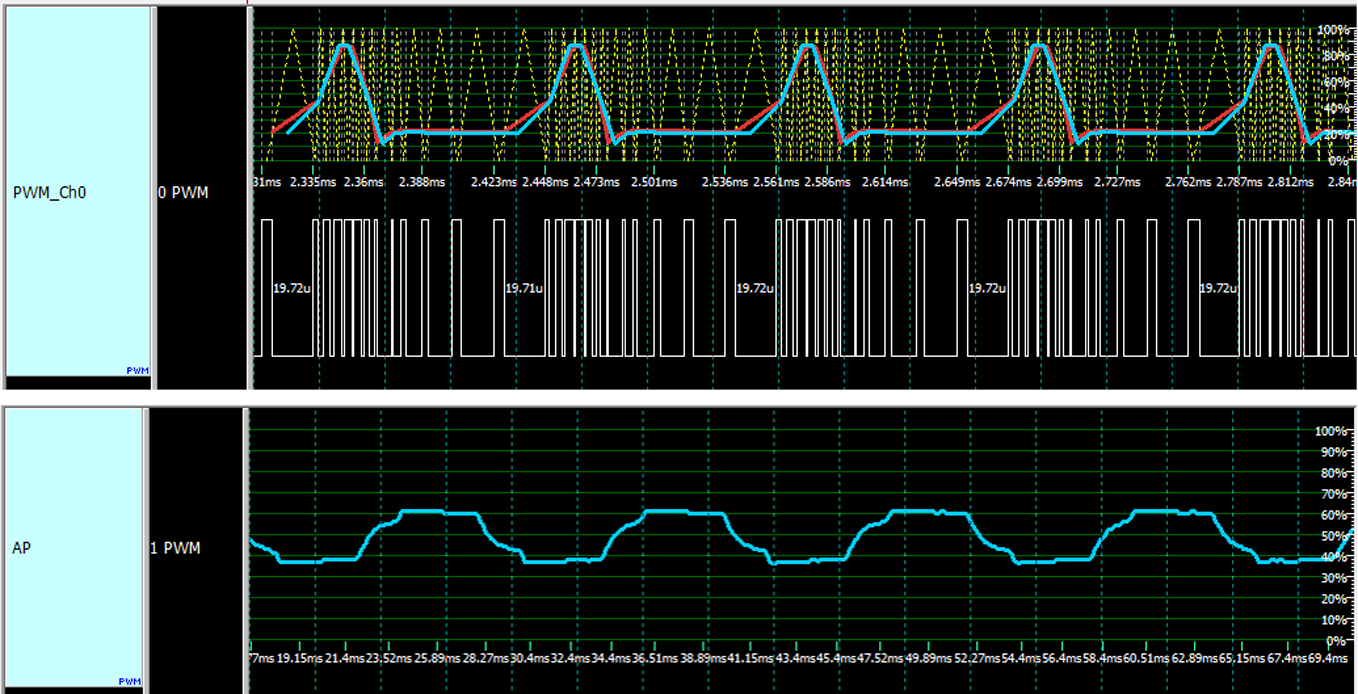

PWM decode reconstructed in the waveform window as percentage or frequency
