MHL-CBUS (Mobile High-Definition Link Communication BUS)

MHL (Mobile High-definition Link) is a mobile high-definition link interface; CBUS is the control-signal interface within MHL.

Wrong CBUS channel assignment prevents correct decode. For channel-prefix differences, see Settings.

Decode Settings

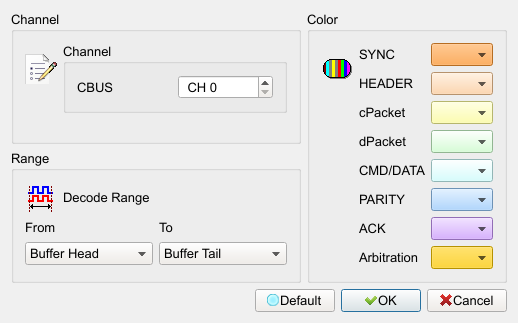

MHL-CBUS Decode Settings

• Channel: Assign the CBUS signal channel on the logic analyzer.

Result

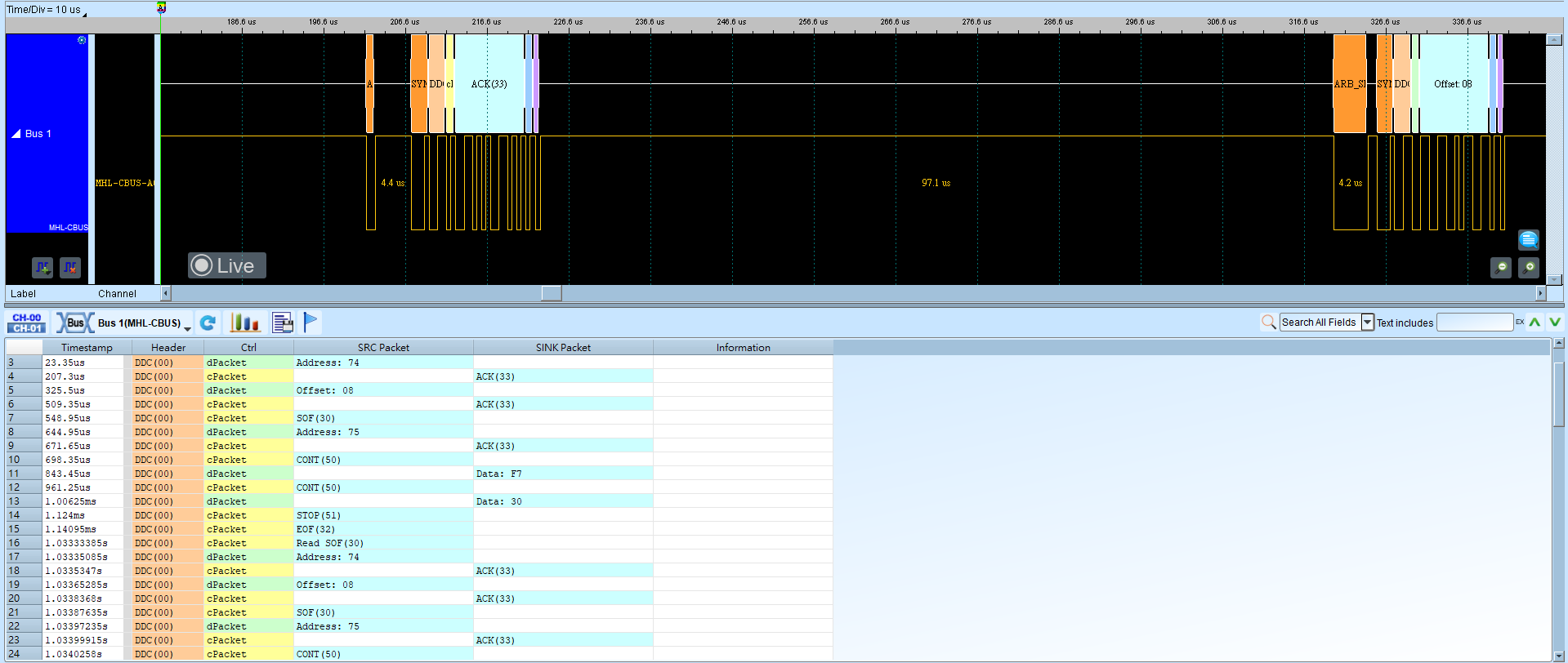

MHL-CBUS decode result
