HTSensor (Humidity & Temperature sensor)
An HTSensor measures and monitors environmental conditions such as temperature and humidity, and provides the data to a system or device for processing or control. These sensors are widely used in smart homes, automation systems, climate control, medical devices, and similar applications.
Wrong Model or timing parameters versus the device under test cause decode failures. For channel-prefix differences, see Settings.

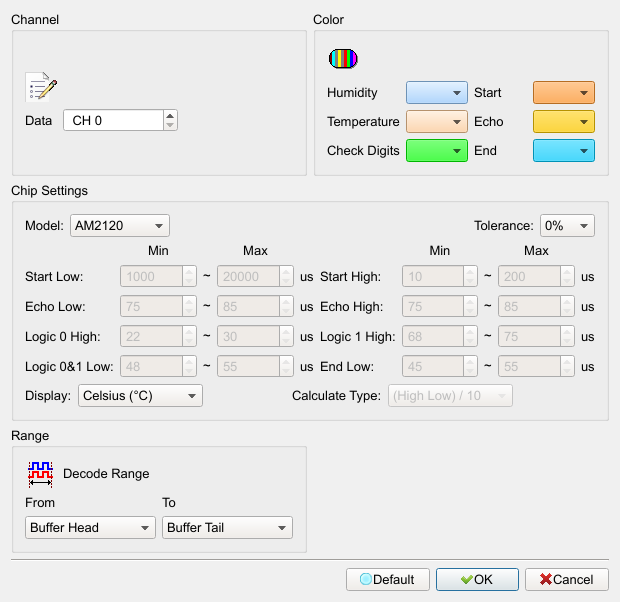

Decode Settings
- Data: Assign the Logic Analyzer channel for the sensor data signal.
- Chip Setting: Select a supported chip model or define custom chip timing parameters.
- Model: Chip model (AM2120 / AM2320 / CHTA30 / DHT11 / Custom). Default: AM2120. With Custom, timing and Calculate Type fields are enabled (Enable); other models disable (Disable) those fields and load that model’s parameters.
- Display: Temperature display unit. Default: Celsius.
- Tolerance: Allowed error percentage. Default: 0%.
- Calculate Type: Humidity/temperature calculation method. Default follows the Model (AM2120: (High Low) / 10).

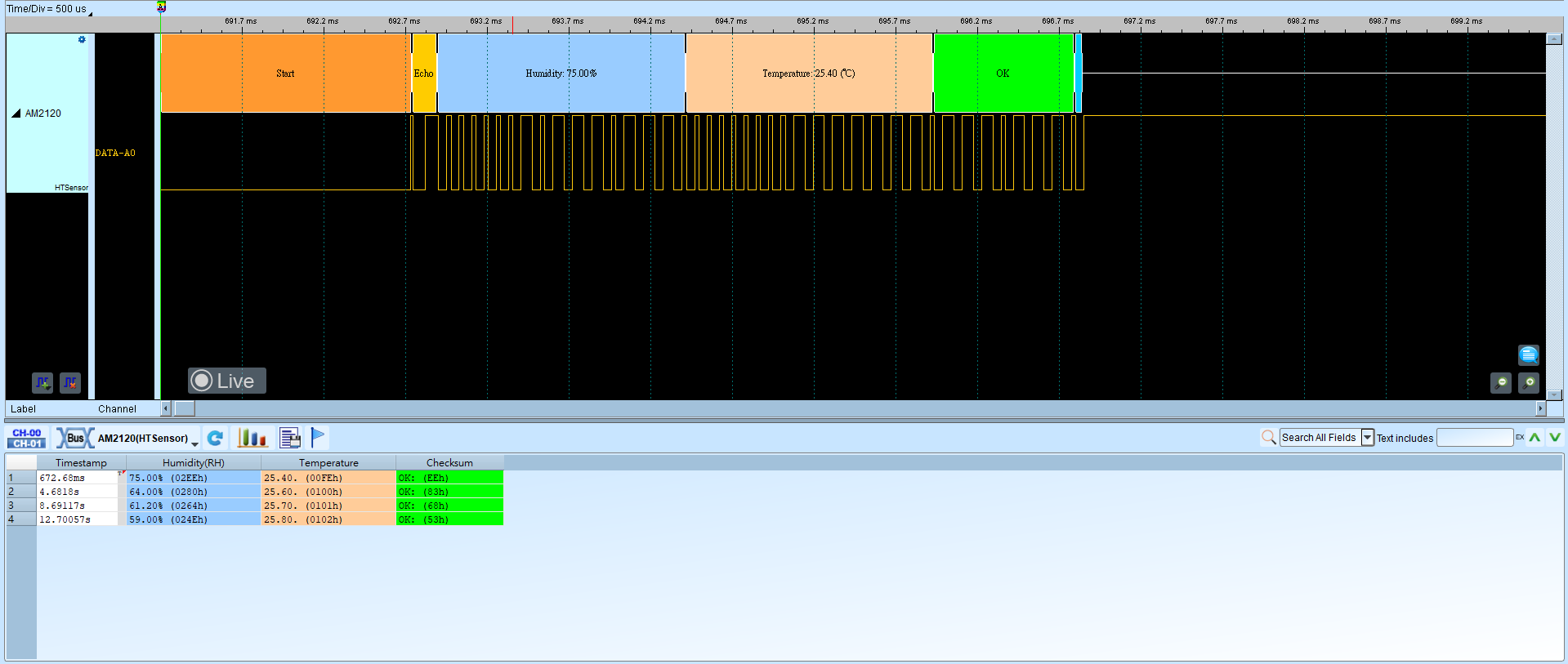

Result
