Microchip SWI
Microchip SWI (Single Wire Interface) is a single-wire protocol from Microchip Technology for simplifying device communication.
Wrong Data Sheet selection versus the DUT prevents correct decode. For channel-prefix differences, see Settings.

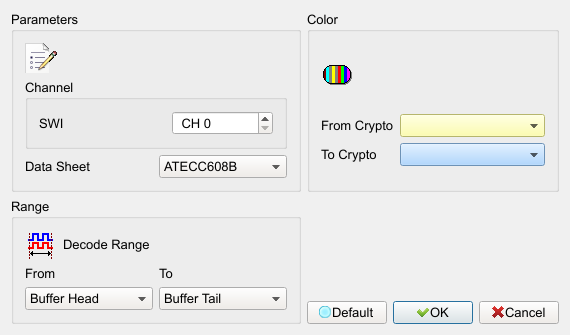

Decode Settings
- Channel: Assign the SWI signal channel on the logic analyzer.
- Data Sheet: Supported IC model. Default is ATECC608B.

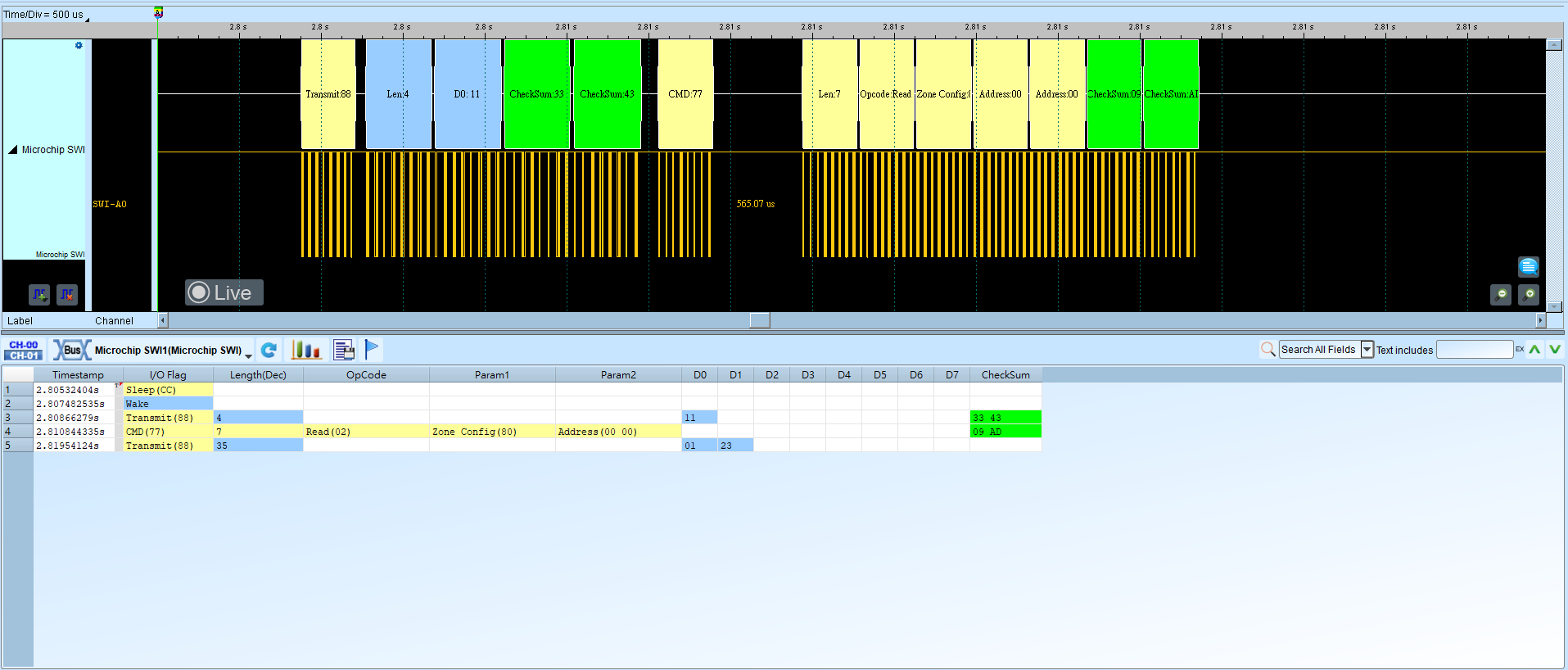

Result
