BSS (Bit Synchronous Single-wire)

Bit Synchronous Single-wire interface (BSS) links directly to the onboard Engine Control Unit (ECU). BSS provides real-time control of main electrical parameters such as voltage regulation and load response timing.

See Settings for channel prefixes.

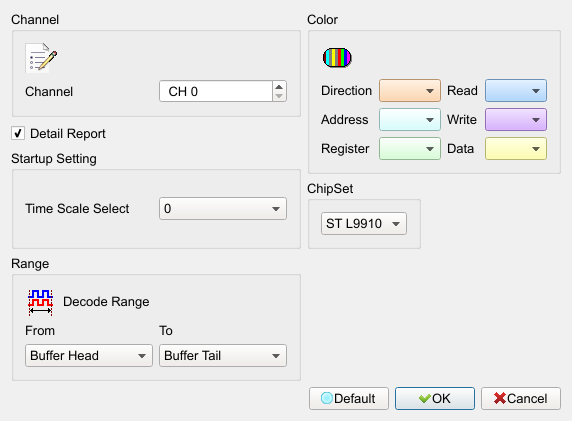

Decode Settings

Decode Settings

BSS Decode Settings
  • Channel: Assign the BSS signal channel.
  • Detail Report: Detailed analysis of byte content. Field enabled (Enable) when checked. Default: checked.
  • Startup Setting: Time Scale Select Bit (0 / 1). Default: 0 (Scale_3s).
  • ChipSet: Chipset to decode. Default: ST L9910.

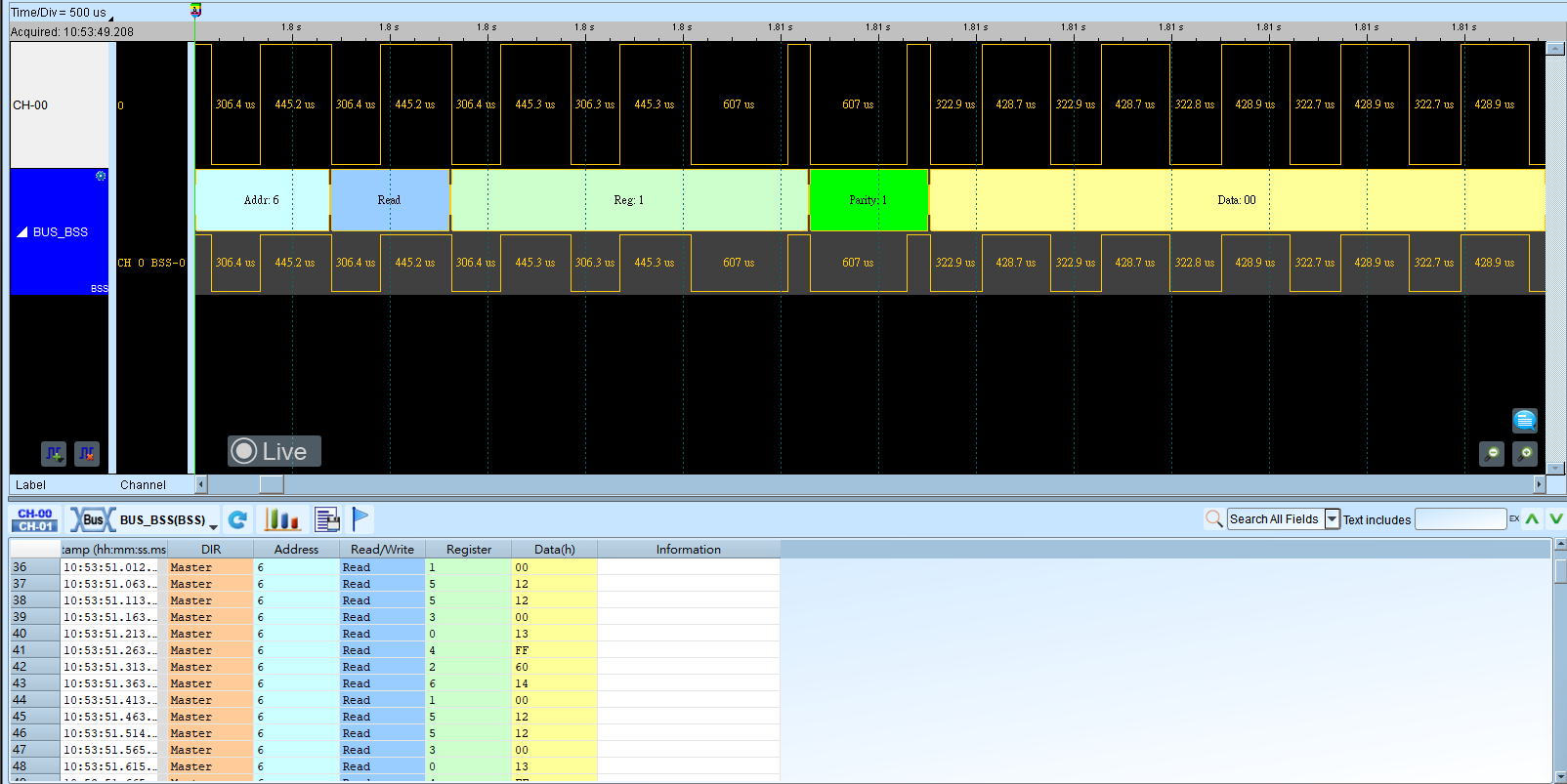

Result

BSS Result

BSS decode result

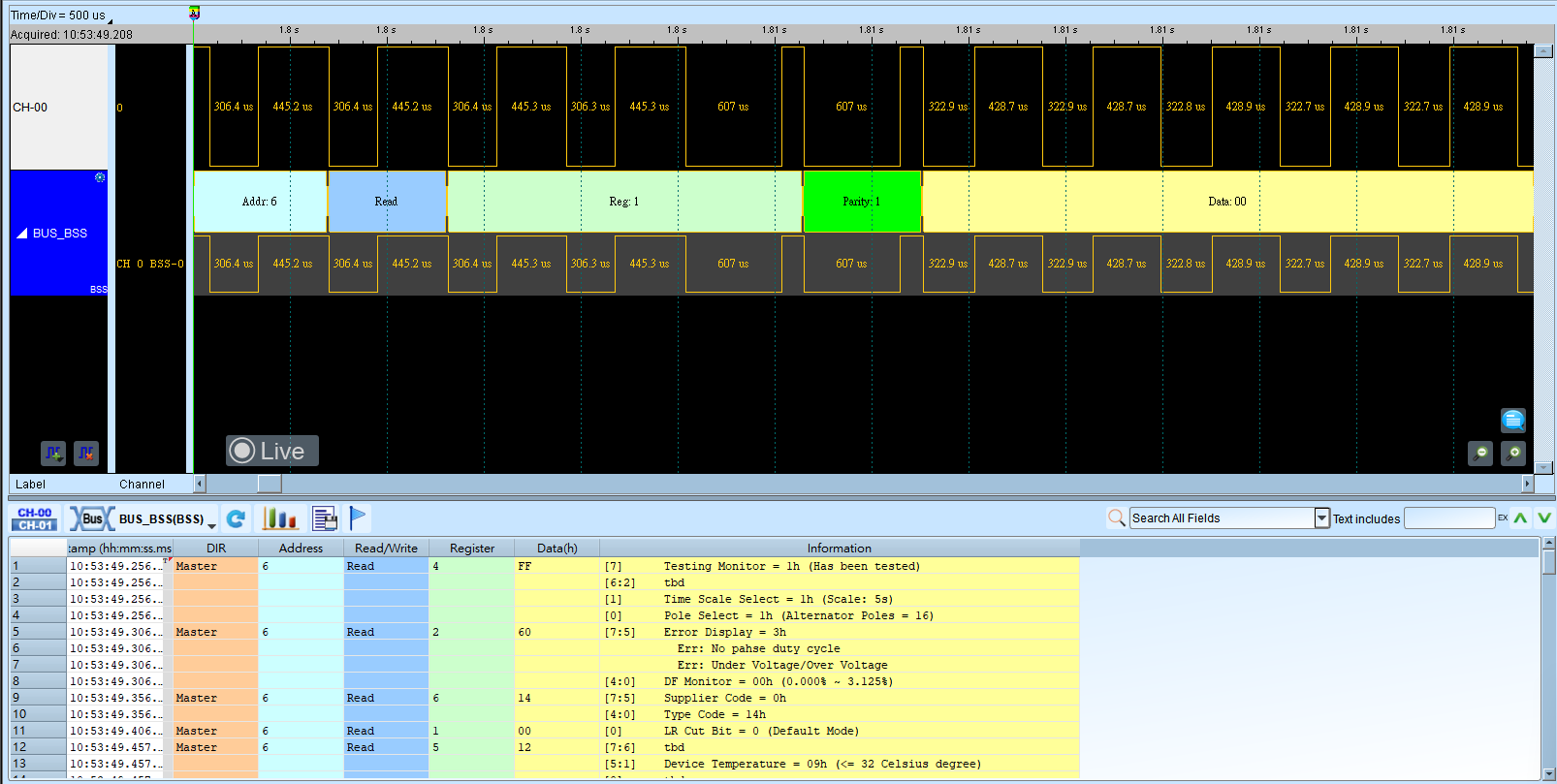

Detail Report:

BSS Detail Report

BSS Detail Report
