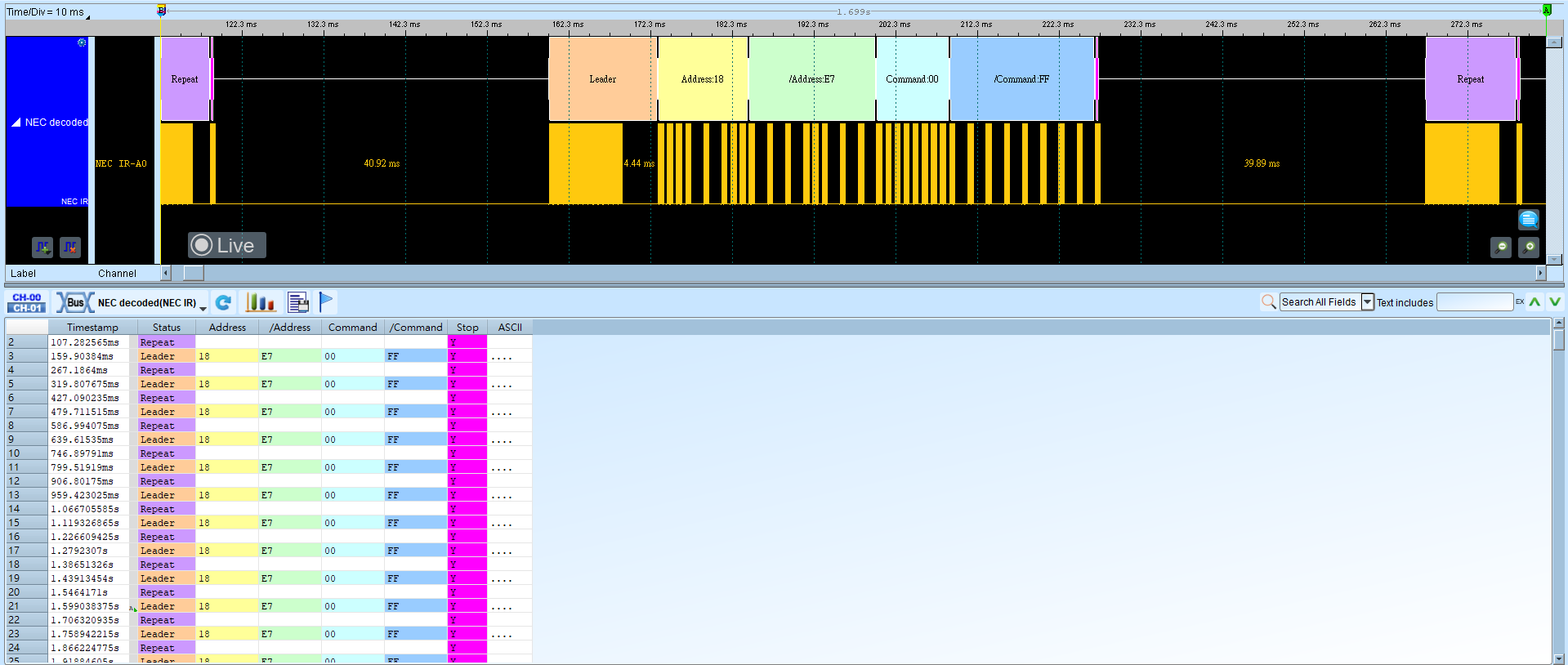

NEC IR (NEC Infrared Transmission Protocol)

NEC IR (NEC Infrared Transmission Protocol) is a common infrared remote-control encoding protocol used between remotes and receivers.

Wrong Extended/bit-order settings misread Address/Command fields. For channel-prefix differences, see Settings.

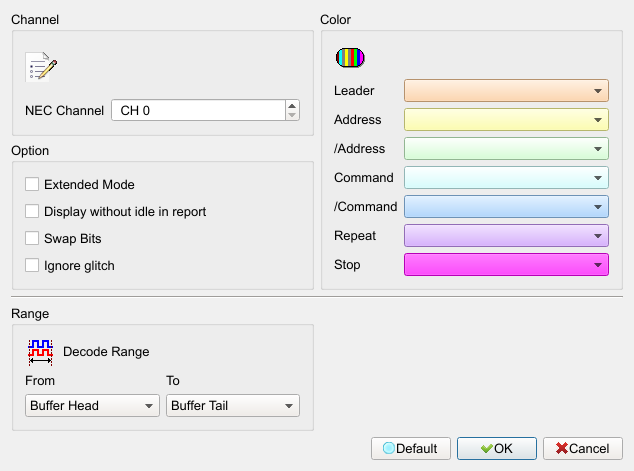

Decode Settings

Channel: Set the LA channel for the NEC signal.
Options:
- Extended Mode: Merges /Address and Address into a 16-bit Address, and /Command and Command into a 16-bit Command. Field enabled (Enable) when checked. Default is unchecked.
- Display without idle in report: Hides Idle rows in the report. Field enabled (Enable) when checked. Default is unchecked.
- Swap Bits: Switch from LSB First to MSB First. Field enabled (Enable) when checked. Default is unchecked.
- Ignore glitch: Ignore glitches during analysis. Field enabled (Enable) when checked. Default is unchecked.
