PECI 3.0 (Platform Environment Control Interface)
PECI (Platform Environment Control Interface) is an Intel bus for platform management, including thermal, power, and electrical error monitoring.
Report mode and SYNC options affect report detail. For channel-prefix differences, see Settings.

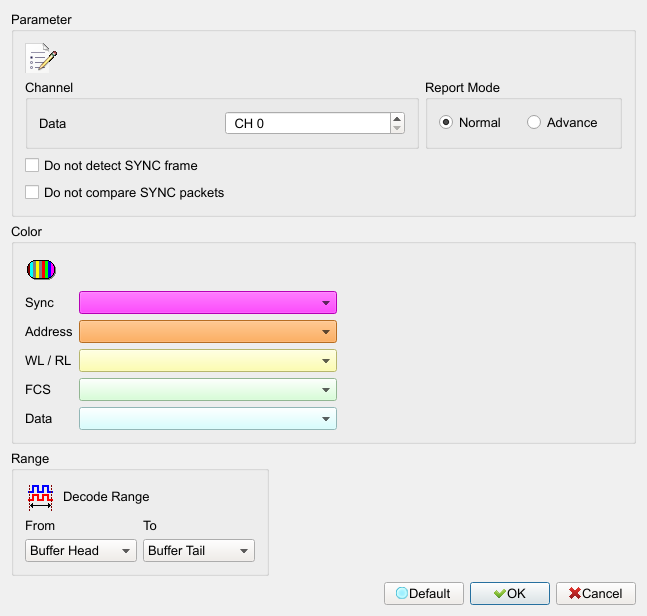

Decode Settings
- Channel: Data: PECI data channel.
- Report Mode: Normal/Advanced; Advanced shows more detail. Default is Normal.
- Do not detect SYNC frame: Do not detect SYNC frames. Field enabled (Enable) when checked. Default is unchecked.
- Do not compare SYNC packets: Do not compare SYNC packets. Field enabled (Enable) when checked. Default is unchecked.
Result

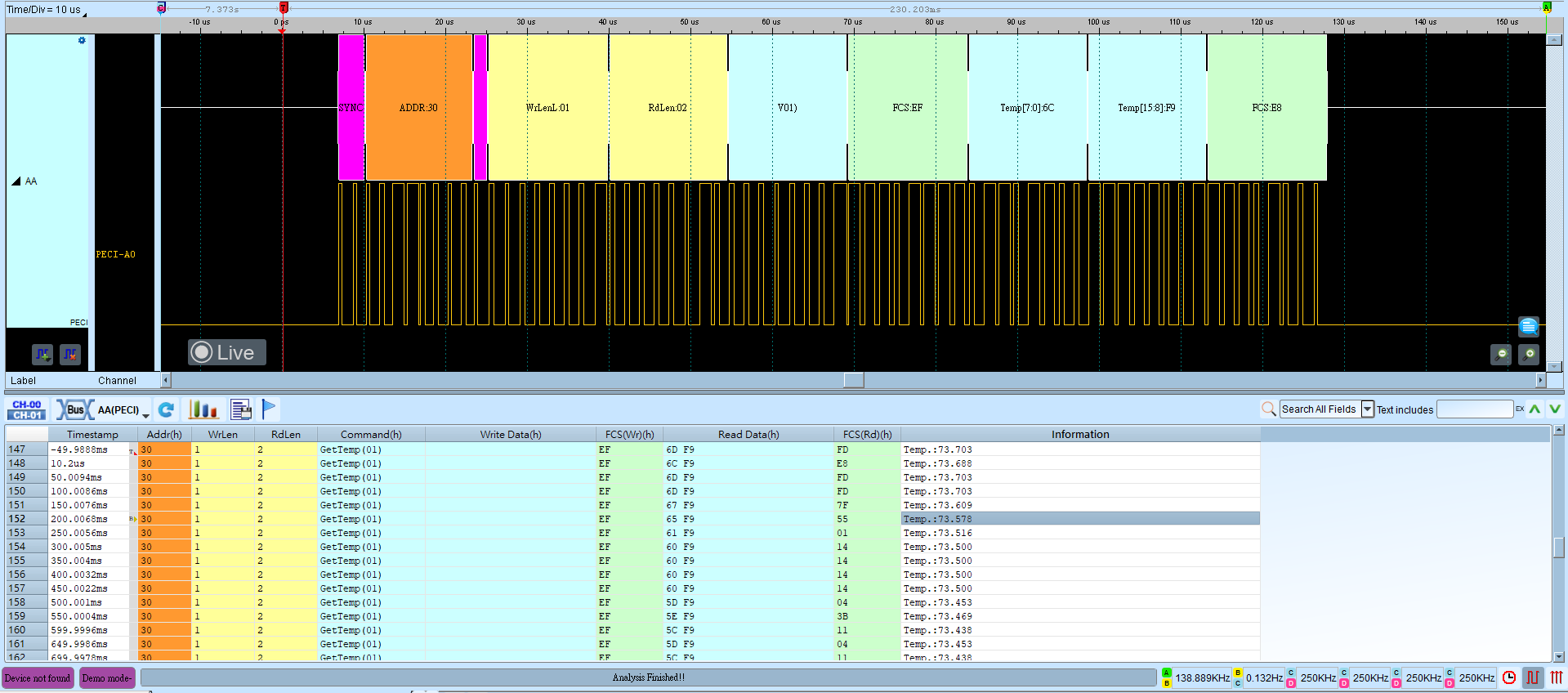

Normal mode report

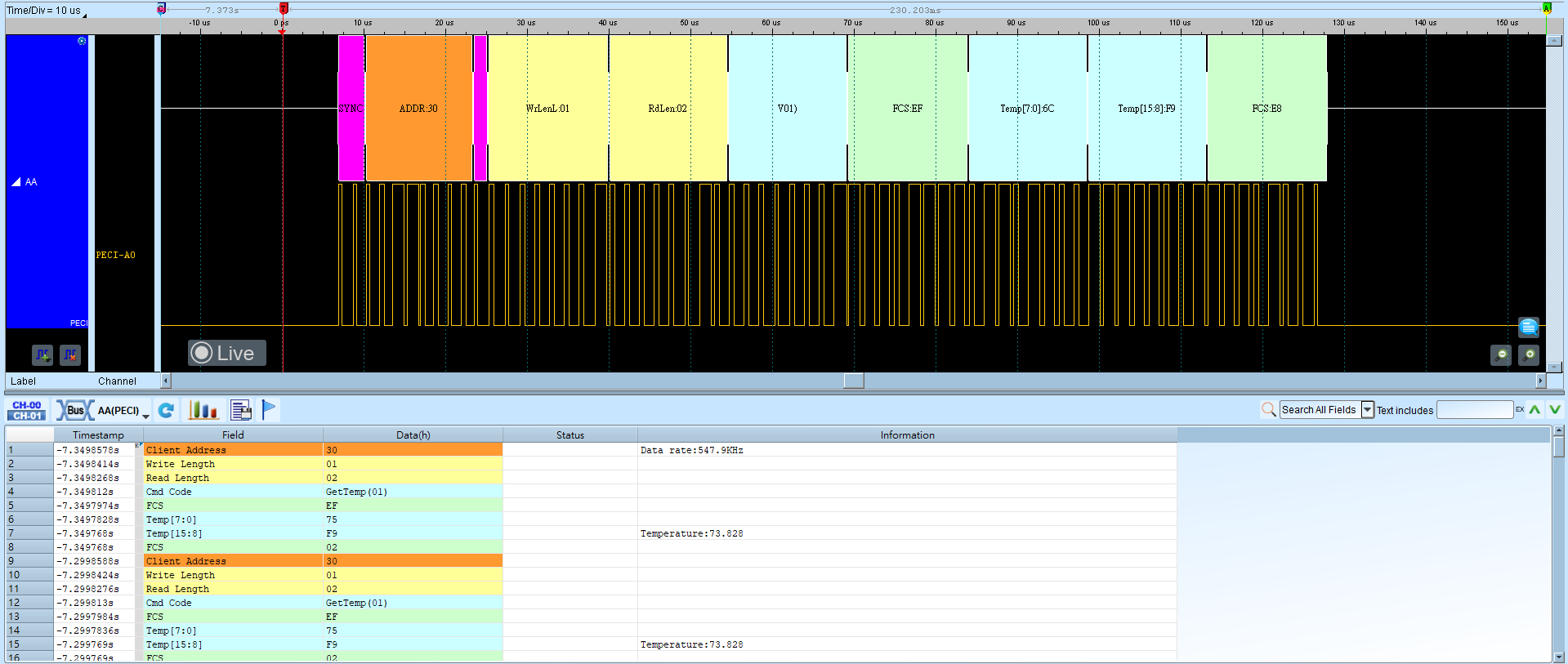

Advanced mode report
