APML (Advanced Platform Management Link)
APML (Advanced Platform Management Link) is an AMD out-of-band power-management and reliability link for Opteron platforms (available from 6-core Opteron).
See Settings for channel prefixes.

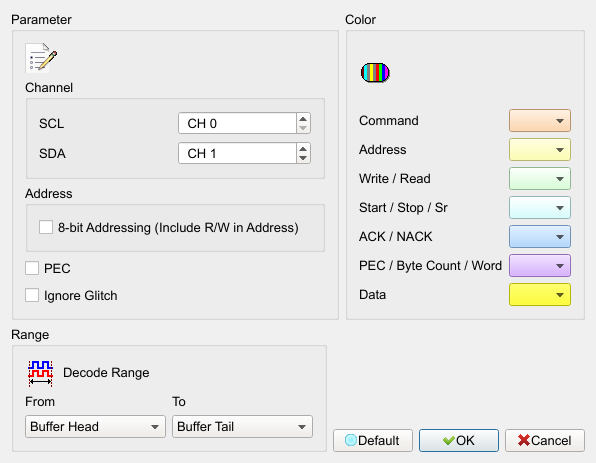

Decode Settings
- Channel: Assign CLK / Data on the logic analyzer.
- 8-bit addressing (Include R/W in Address): Show 8-bit addressing (7-bit address plus 1-bit R/W). Field enabled (Enable) when checked. Default: cleared.
- PEC: Packet Error Check. Field enabled (Enable) when checked. Default: cleared.
- Ignore Glitch: Ignore glitches from slow transitions. Field enabled (Enable) when checked. Default: cleared.

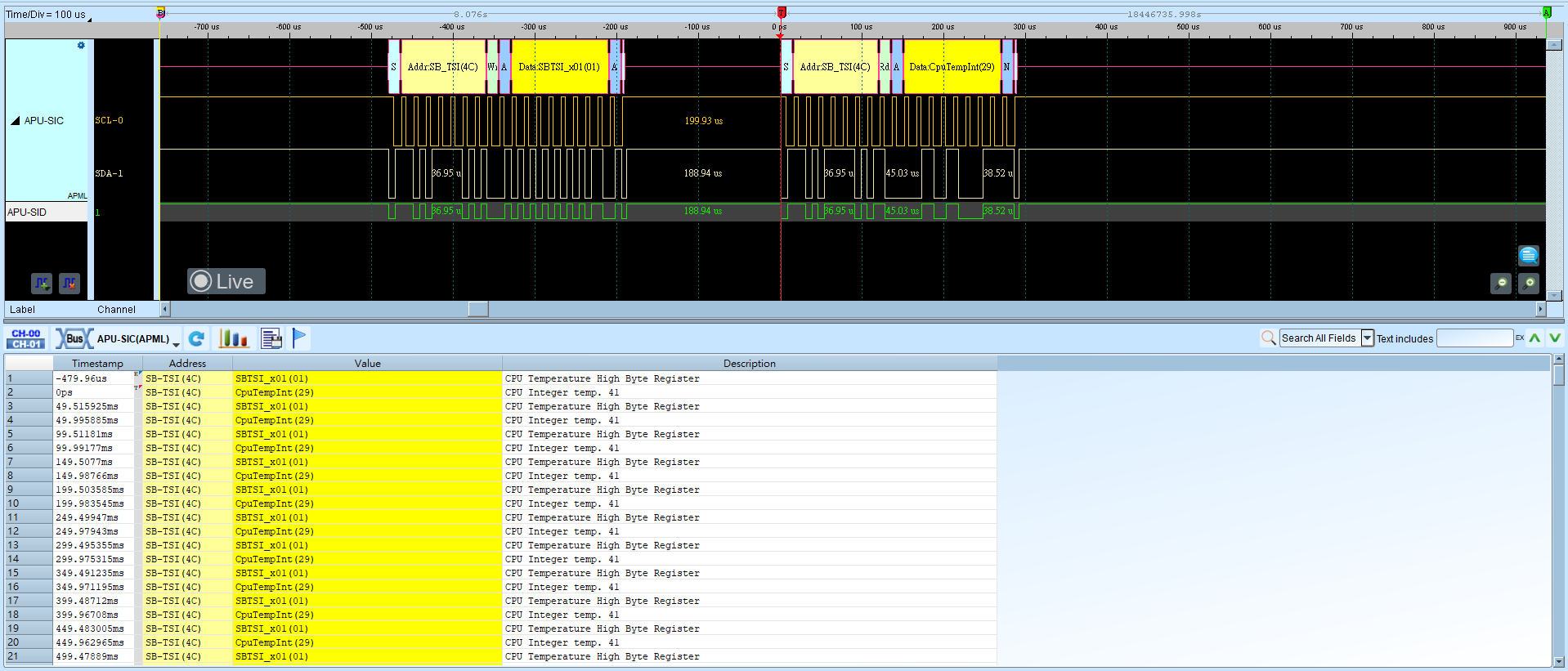

Result
