MIPI SPMI 2 (System Power Management Interface)
MIPI SPMI (System Power Management Interface) designed by the MIPI Alliance. SPMI is a serial interface that connects the integrated Power Controller (PC) with Power Management Integrated Circuits (PMIC).
Wrong SCLK/SDATA or Version yields incorrect decode. For channel-prefix differences, see Settings.

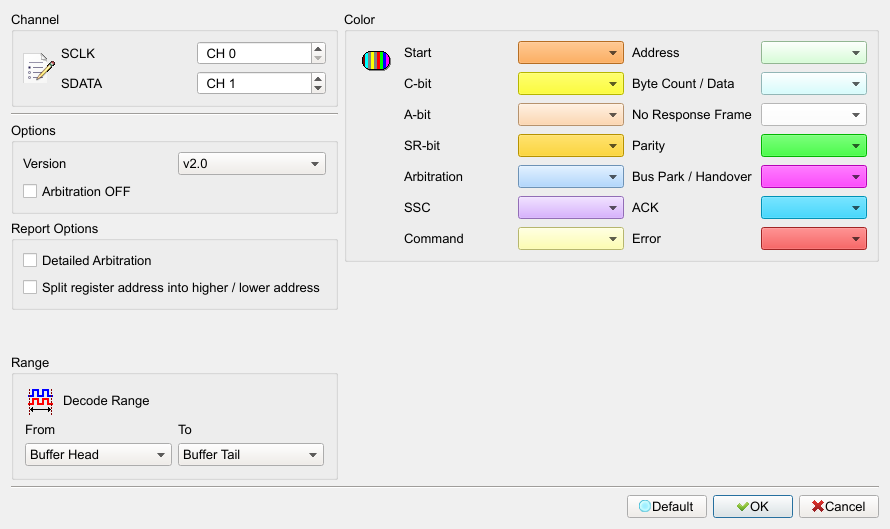

Decode Settings
- Channel: Assign SCLK and SDATA channels on the logic analyzer.
- Options:
- Version: v1.0/v2.0/Compatibility Mode. Default: v2.0.
- Arbitration OFF: No arbitration on the bus. Field enabled (Enable) when checked. Default: cleared.
- Report Options:
- Split register address into higher / lower address: Split register address in the report. Field enabled (Enable) when checked. Default: cleared.
- Detailed Arbitration: Show detailed arbitration in the report. Field enabled (Enable) when checked. Default: cleared.

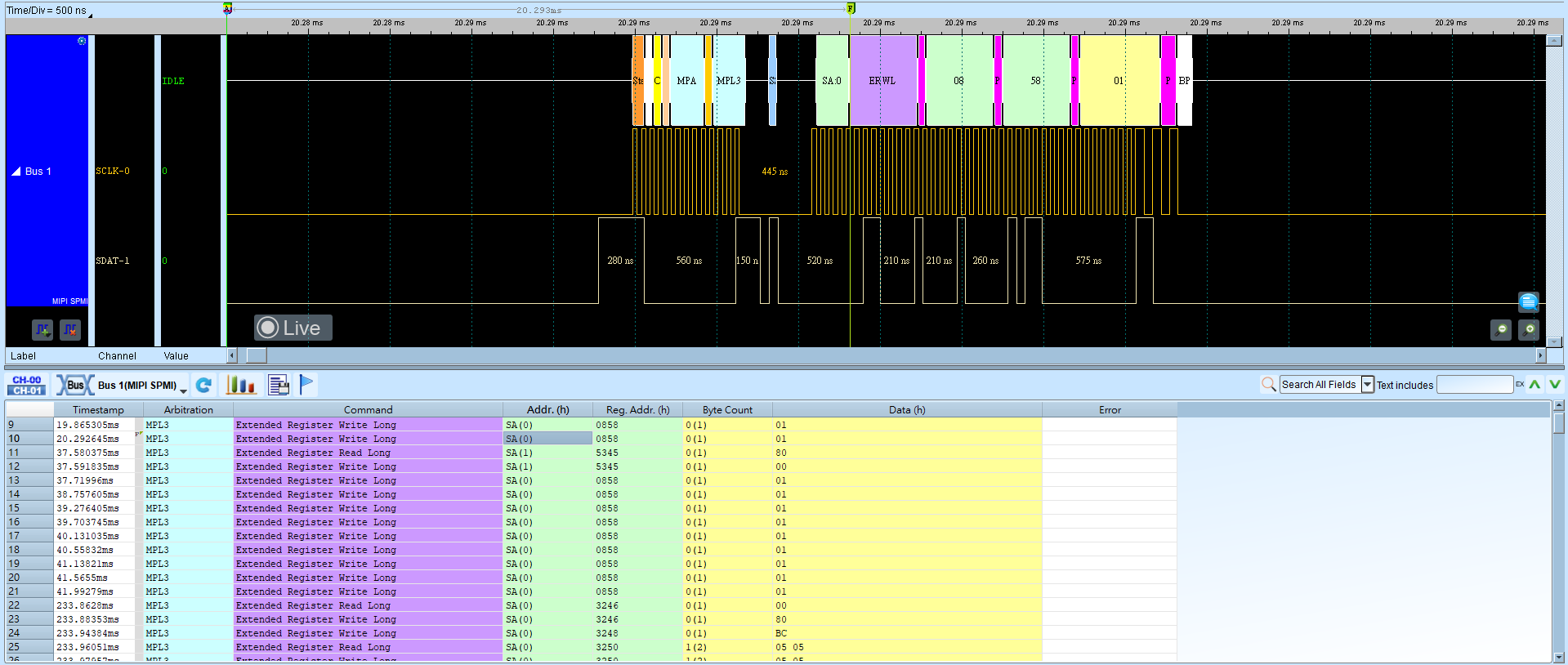

Result
