EDID (Extended Display Identification Data)
EDID (Extended Display Identification Data) is I2C-based monitor identification data carried on the DDC wire. HDMI, DVI, and VGA support this protocol.
Wrong Address Mode or SCL/SDA wiring yields decode failures. For channel-prefix differences, see Settings.

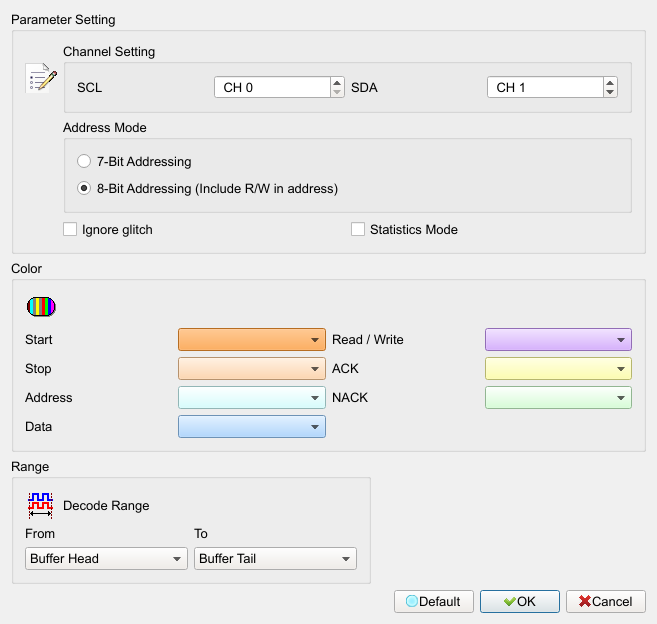

Decode Settings
- SCL: Assign the I2C clock (SCL) channel.
- SDA: Assign the I2C data (SDA) channel.
- Address Mode:
- 7-Bit Addressing: Show a 7-bit address.
- 8-Bit Addressing (Include R/W in address): Show an 8-bit address (7-bit address plus 1-bit Rd/Wr). Default: this mode selected.
- Ignore glitch: Ignore glitches from slow transitions. Field enabled (Enable) when checked. Default: cleared.
- Statistics Mode: Collect all data frames into one report by register address order. Field enabled (Enable) when checked. Default: cleared.

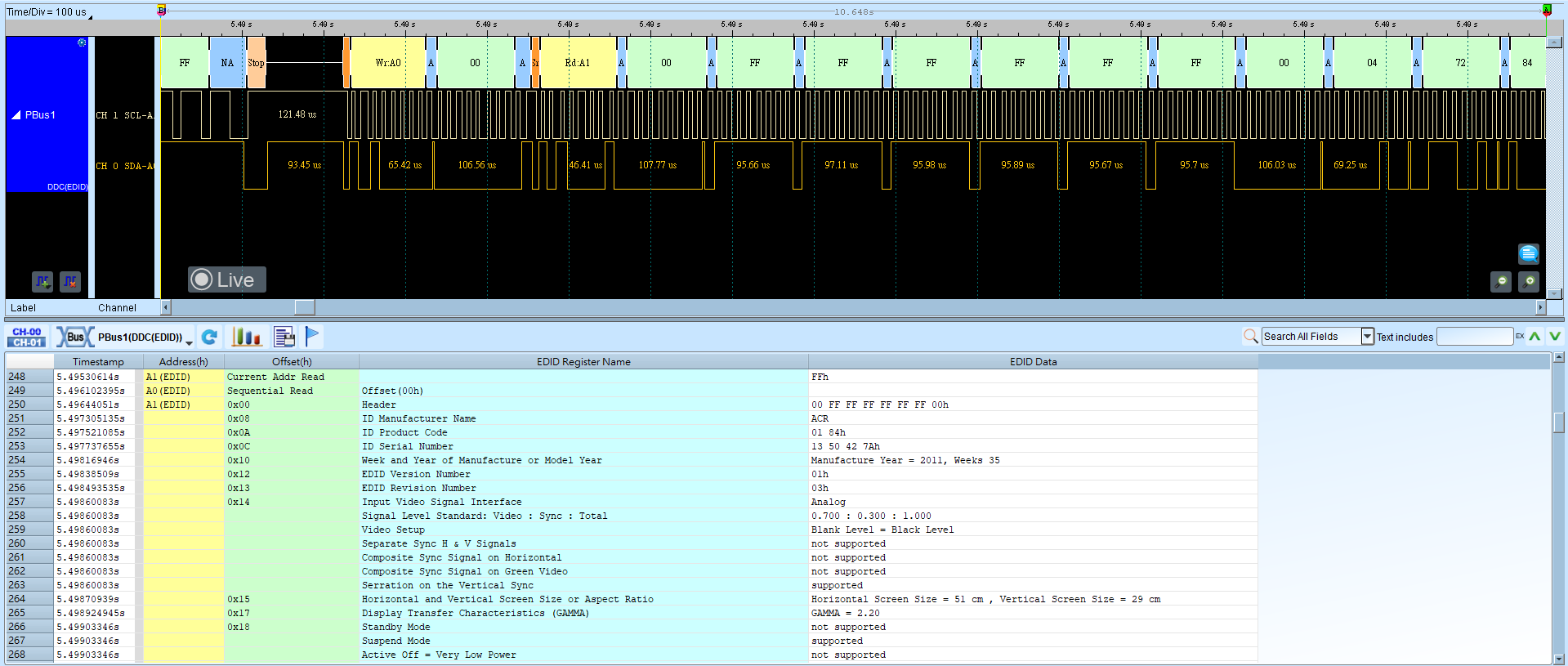

Result
