SDQ
Texas Instruments (TI) SDQ (Single-Wire EEPROM interface used by BQ202x devices) is a single-wire protocol for communicating with supported battery/EEPROM ICs. The decode plugin supports BQ2024, BQ2025, and BQ2026 models.
Wrong Model or Display mode yields incorrect fields. For channel-prefix differences, see Settings.

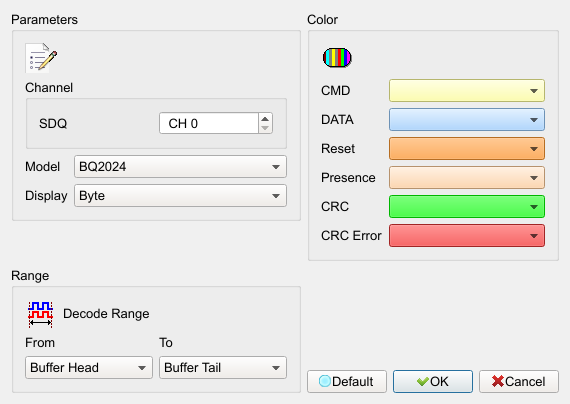

Decode Settings
- Channel: SDQ signal channel0.
- Model: IC model: BQ2024 / BQ2025 / BQ2026. Default: BQ2024.
- Display: Show decode results as Byte or Bit on the waveform. Default: Byte.

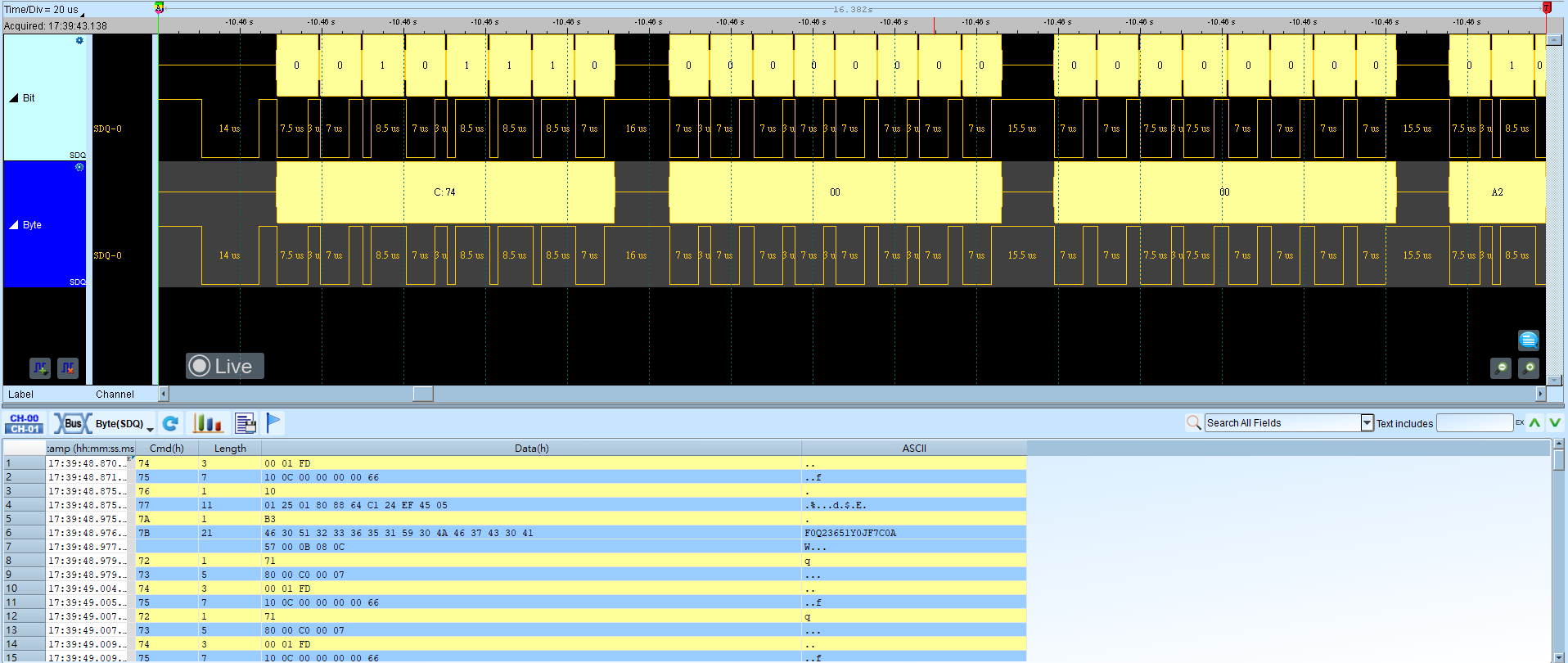

Result
