SWIM (Single Wire Interface Module)
SWIM is the single-wire debug interface for STM8 8-bit MCUs. While the CPU runs, SWIM allows non-intrusive on-the-fly read/write access to RAM and peripheral registers for debug.
For channel-prefix differences, see Settings.

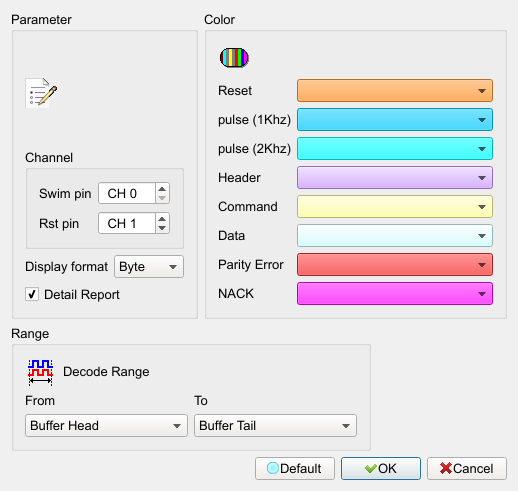

Decode Settings
- Swim pin: Assign the Swim channel.
- Rst pin: Assign the Reset channel.
- Display format: Waveform decode display (Byte/Bit). Default: Byte.
- Detail Report: Show detailed SWIM decode information. Field enabled (Enable) when checked. Default: checked.
Result

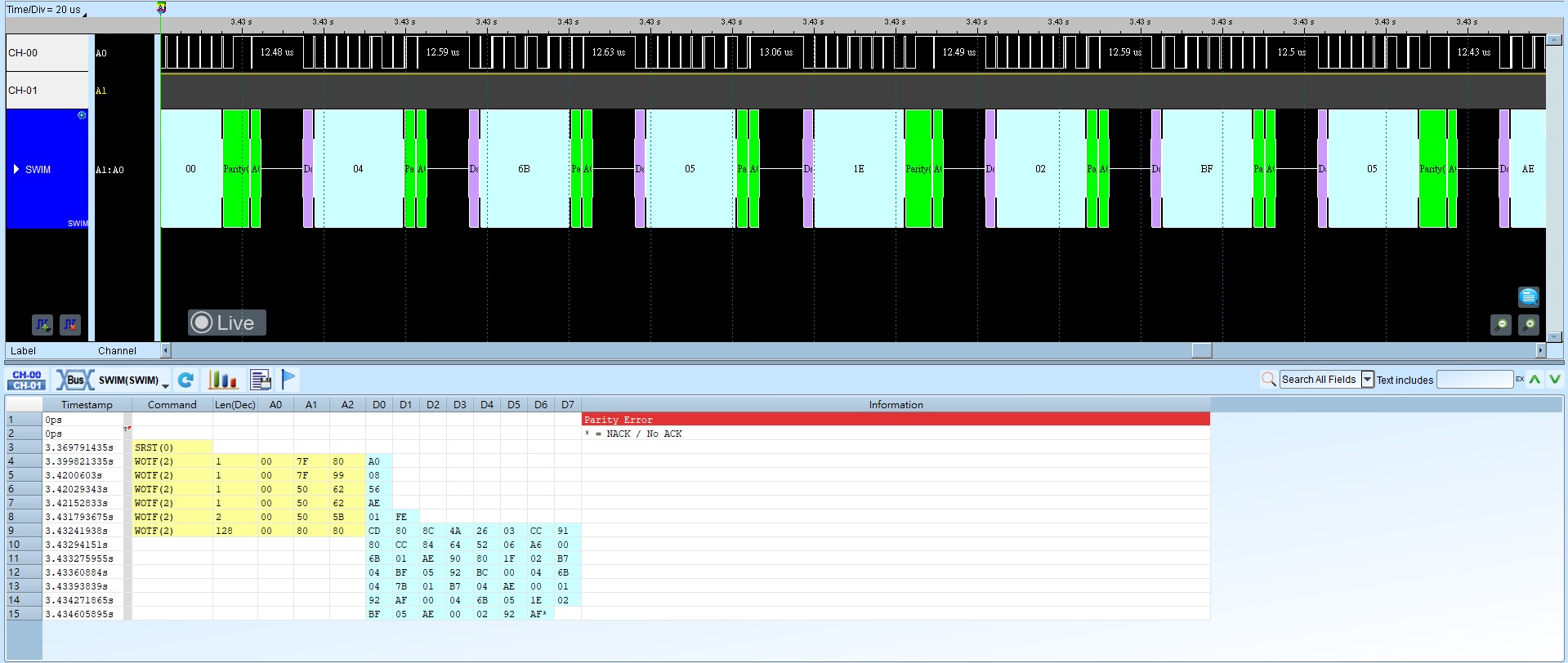

Normal result:

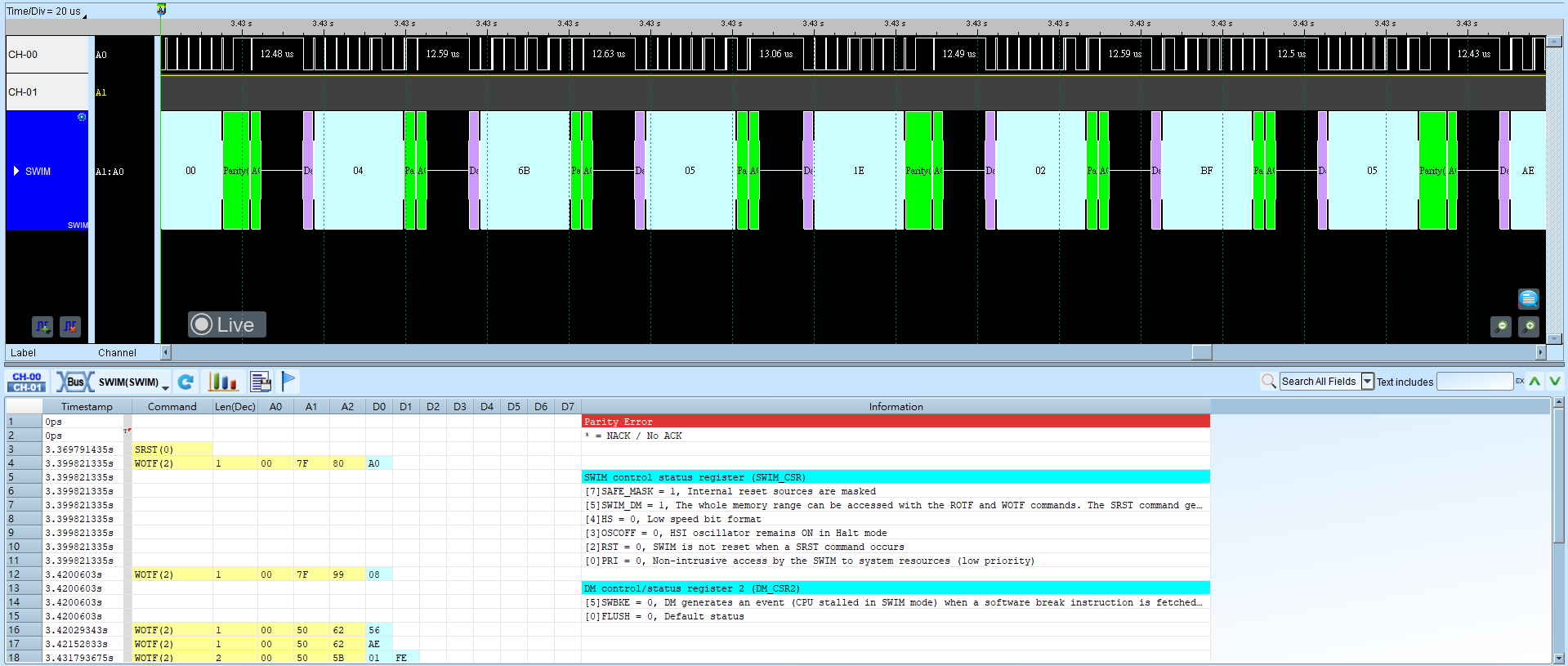

Detail Report:
