CEC
CEC (Consumer Electronics Control) carries AV Link protocol signals so one remote can operate multiple AV devices. It is a single-wire bidirectional serial bus.
For channel-prefix differences, see Settings.

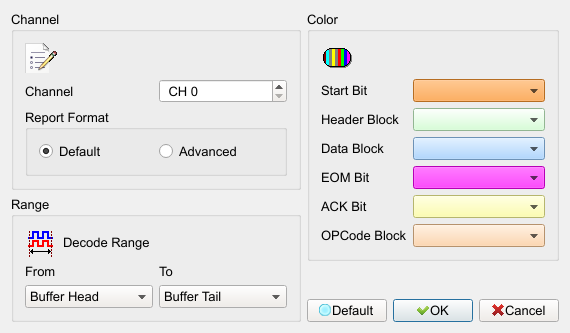

Decode Settings
- Channel: Assign the CEC channel on the logic analyzer.
- Report Format: Report format.
- Default: Normal report. Default: this mode selected.
- Advanced: Explains Header and OPCode meanings in the waveform.
Result

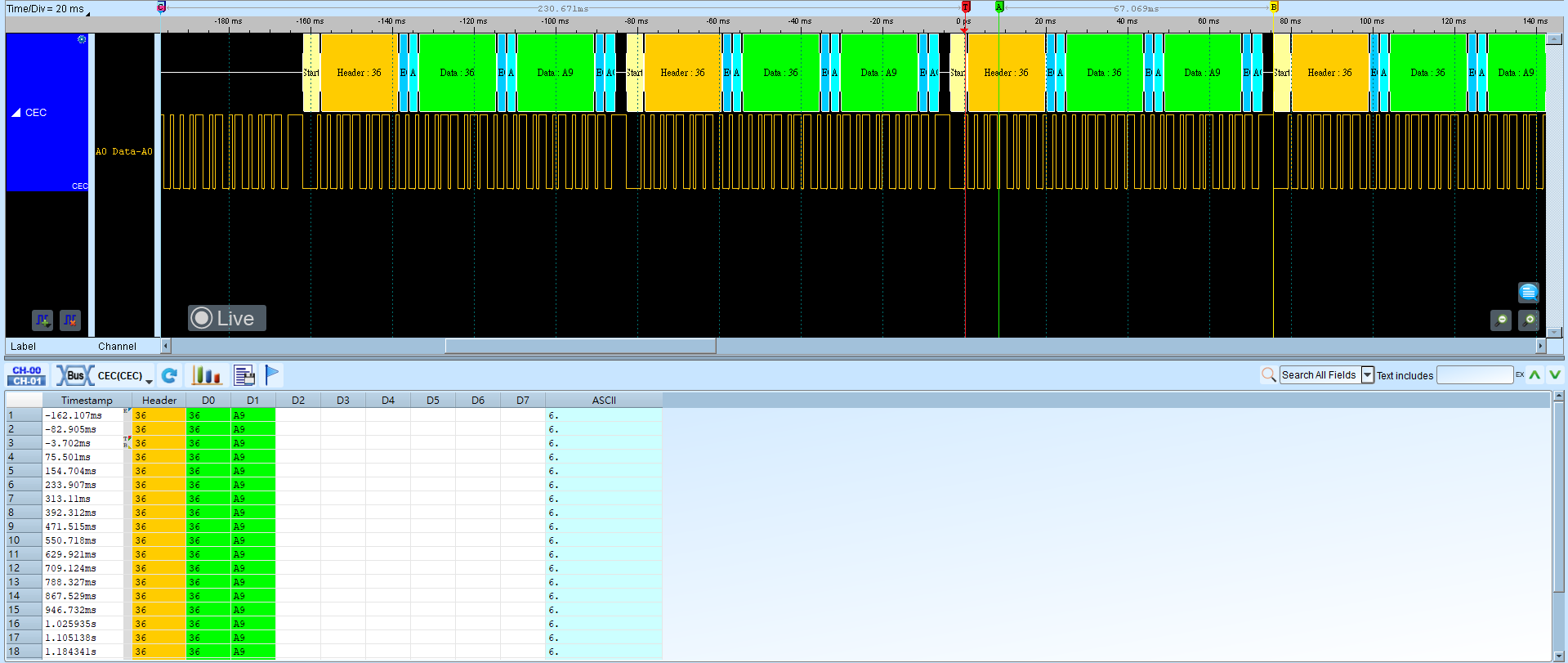

Normal report

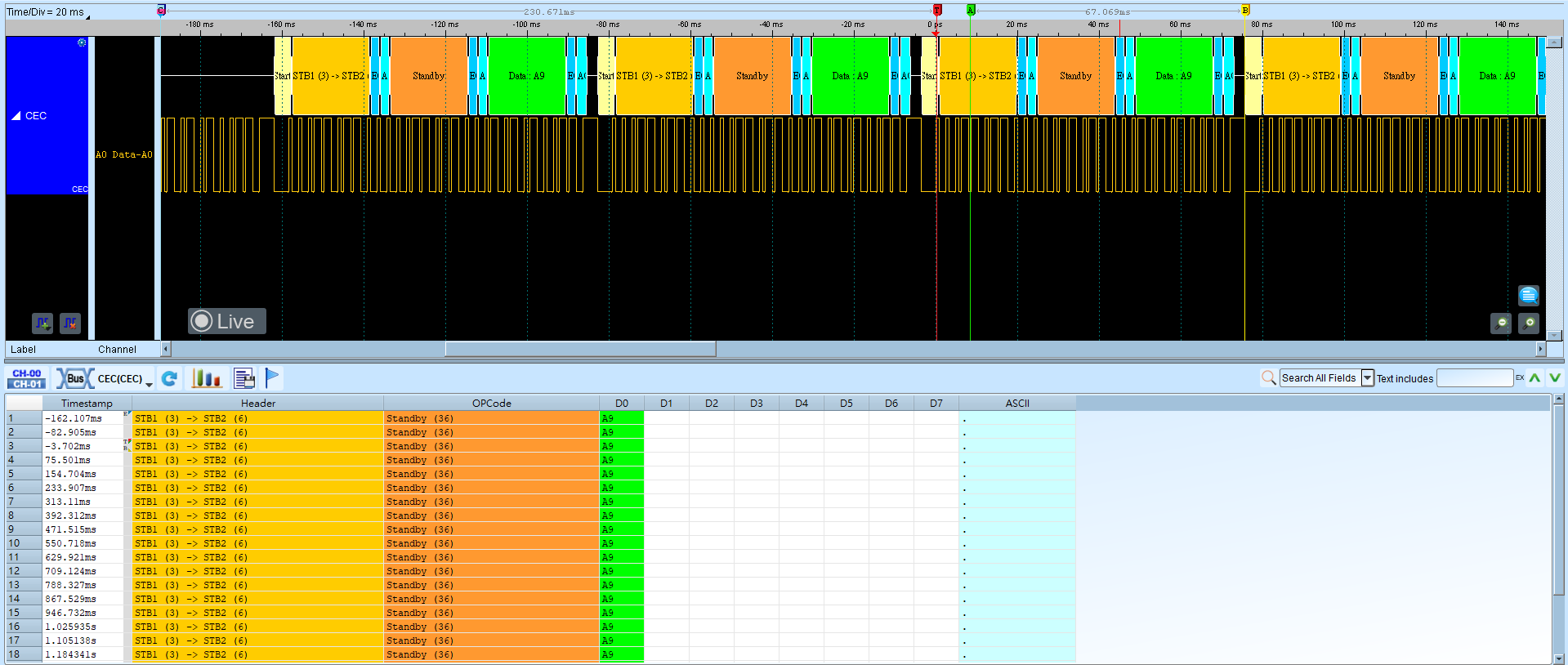

Advanced report
