AVSBus (Adaptive Voltage Scaling Bus)
AVSBus (Adaptive Voltage Scaling Bus) is a serial bus for adaptive voltage scaling / power management (commonly PMBus Part III). Decode supports MData / SData and Spec Ver.
See Settings for channel prefixes.

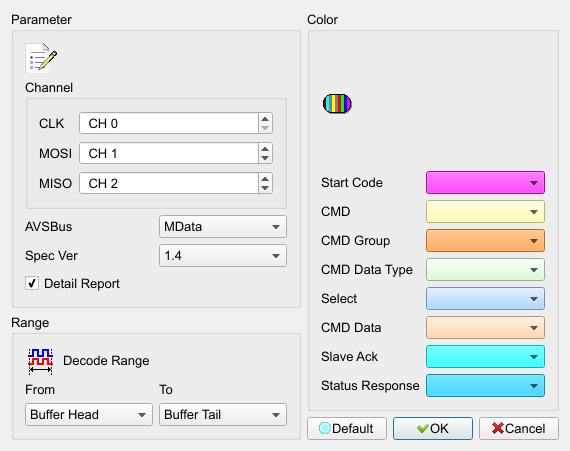

Decode Settings
- Channel: Assign CLK / MOSI / MISO on the logic analyzer.
- AVSBus: Decode data type (MData / SData). Default: MData.
- Spec Ver: Specification version (1.3 / 1.3.1 / 1.4 / 2.0). Default: 1.4.
- Detail Report: Show details in the report. Field enabled (Enable) when checked. Default: checked.

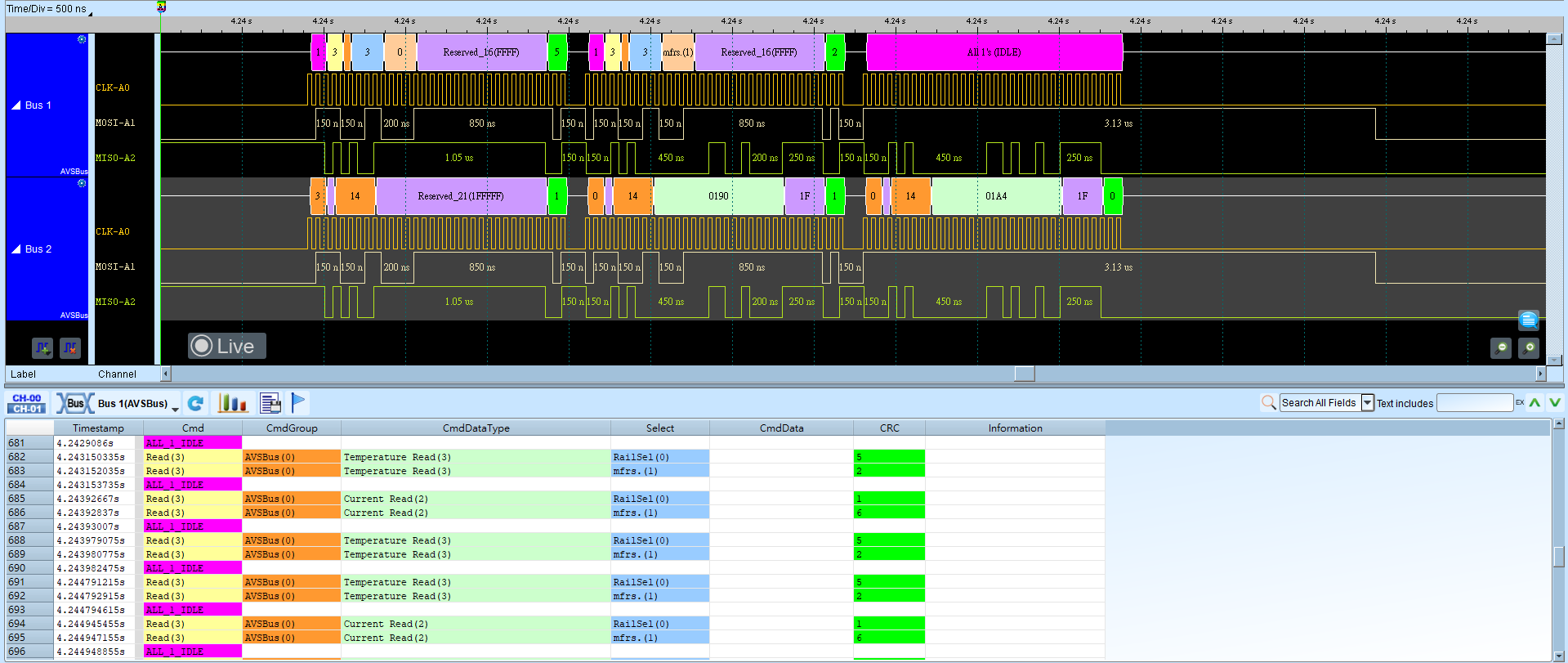

Result
