UNI/O
UNI/O is a Microchip single-wire bus protocol mainly used with EEPROM. It targets fewer I/O pins in compact embedded systems and uses Manchester Encoding at about 10 kbps–100 kbps.
Wrong address width or tolerance settings cause decode failures. For channel-prefix differences, see Settings.

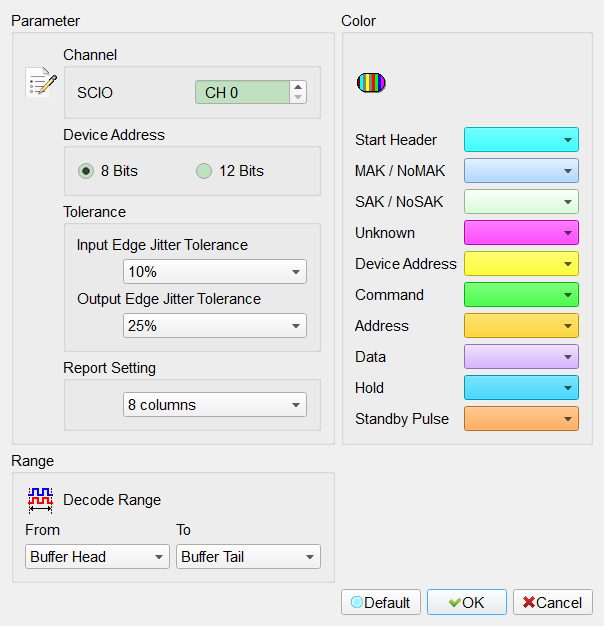

Decode Settings
- Channel: Assign the SCIO channel on the logic analyzer.
- Device Address: Device address width (8 Bits / 12 Bits). Default is 8 Bits.
- Tolerance: Input / Output edge jitter tolerance. Default is Input 10% and Output 25%.
- Report Setting: Data columns in the report (8 / 16). Default is 8 columns.

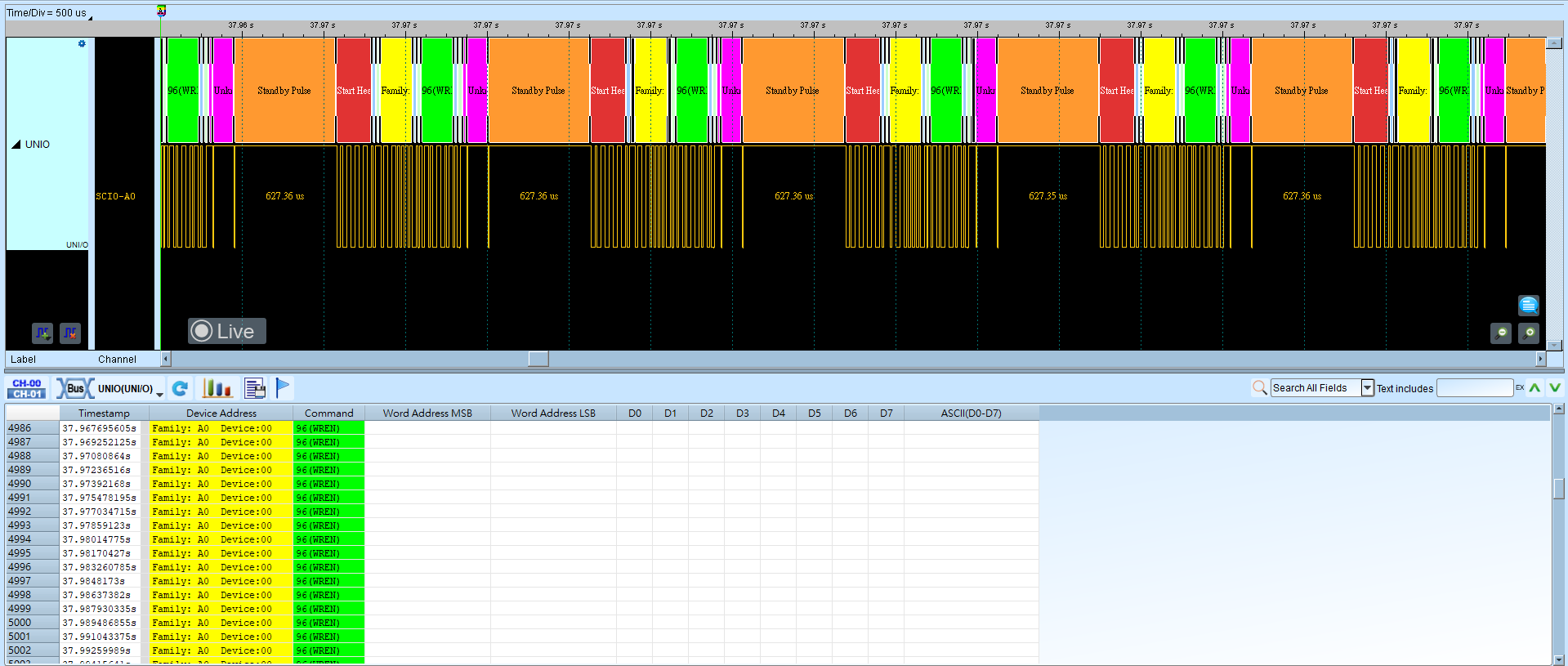

Result
