SGPIO (Serial General Purpose Input/Output)

SGPIO (Serial General Purpose Input/Output) is a serial general-purpose I/O interface that you can control for input and output.

Incorrect Mode, latch, or Significant Bit settings can cause decode failure. For channel-prefix differences, see Settings.

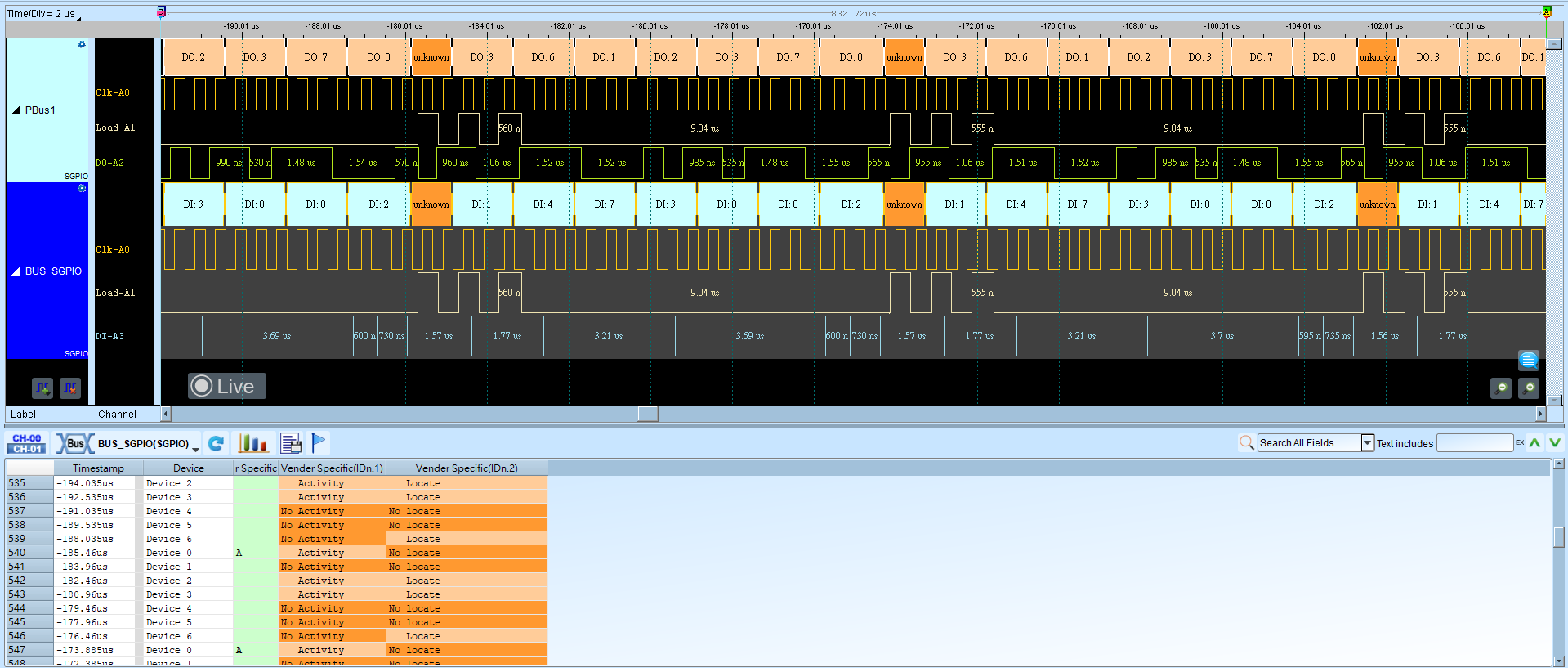

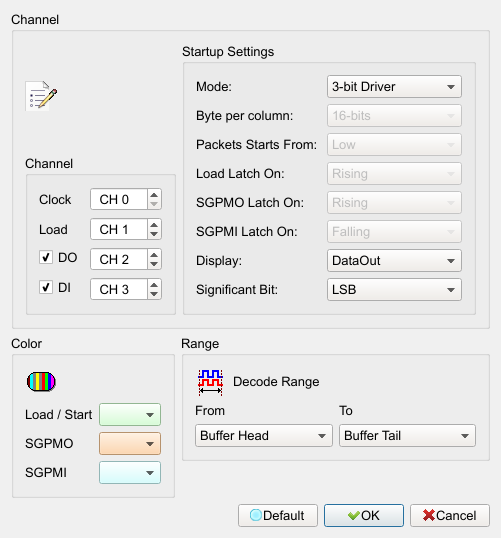

Decode Settings

Channel: Assign Clock, Load, Data Out (DO), and Data In (DI); enable DO only, DI only, or both (at least one required). Default is DO/DI both checked.
Mode: Decode mode.
- 3-bit Driver: 3-bit driver mode. Default selects this mode.
- User Defined Data: Custom data mode; Byte/Packet/Latch settings below are field enabled (Enable) only in this mode.
Byte per column: Bits per column (8-bits/16-bits). Default is 16-bits.
Packets Starts From: Packet starts from High or Low. Default is Low.
Load Latch On: Latch on Rising or Falling edge of Load. Default is Rising.
SGPMO Latch On: Latch on Rising or Falling edge of SGPMO. Default is Rising.
SGPMI Latch On: Latch on Rising or Falling edge of SGPMI. Default is Falling.
Display: Show DataOut or DataIn in the waveform area. Field enabled (Enable) when both DO and DI are on. Default is DataOut.
Significant Bit: LSB or MSB first. Default is LSB.
