MICROWIRE

A serial signal format developed by National Semiconductor; the hardware structure and signal operation are the same as SPI (Serial Peripheral Interface). The line structure includes device selection (CS: Chip Select), clock (SK: Serial Clock), and data input/output (DI: Data Input / DO: Data Output).

Wrong CS/CLK/DI/DO, Chip Select Edge, or Data Edge yields incorrect decode. For channel-prefix differences, see Settings.

Decode Settings

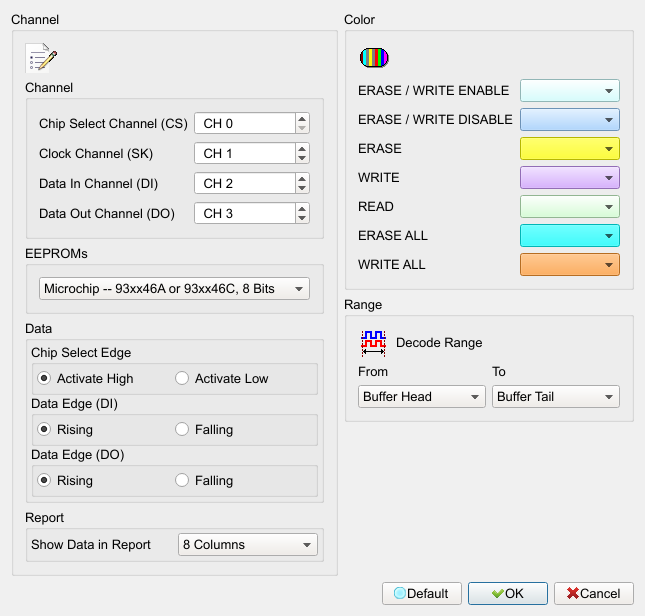

MICROWIRE Decode Settings

• Chip Select Channel (CS): MICROWIRE CS channel.
• Clock Channel (CLK): MICROWIRE clock channel.
• Data In Channel (DI): MICROWIRE Data In channel.
• Data Out Channel (DO): MICROWIRE Data Out channel.
• Chip Select Edge: Activate High or Activate Low. Default: Activate High.
• Data Edge (DI): Rising or Falling latch for DI. Default: Rising.
• Data Edge (DO): Rising or Falling latch for DO. Default: Rising.
• EEPROMs: Select the EEPROM chipset. Default: Microchip -- 93xx46A or 93xx46C (8 Bits; first item after sort).
• Report: Show data in report (8 Columns/16 Columns). Default: 8 Columns.

Result

Read

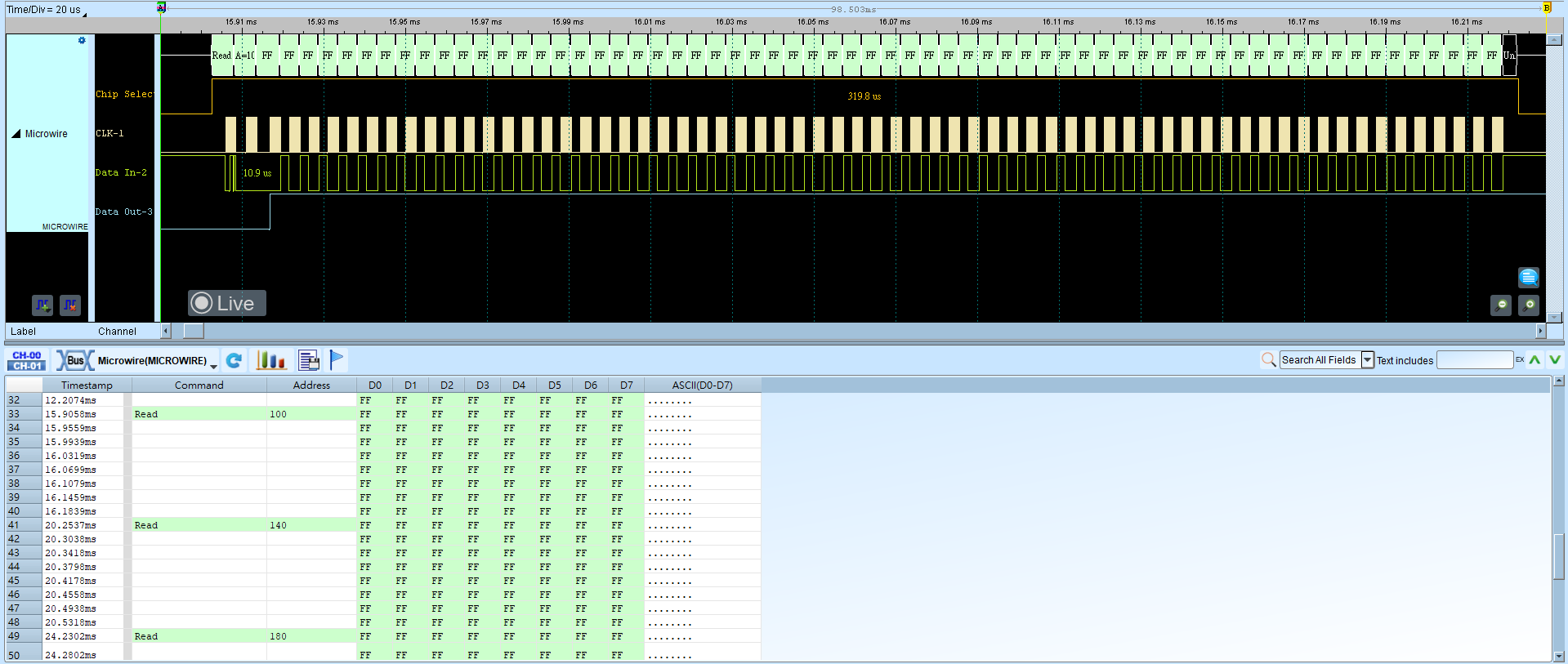

MICROWIRE Read

Write

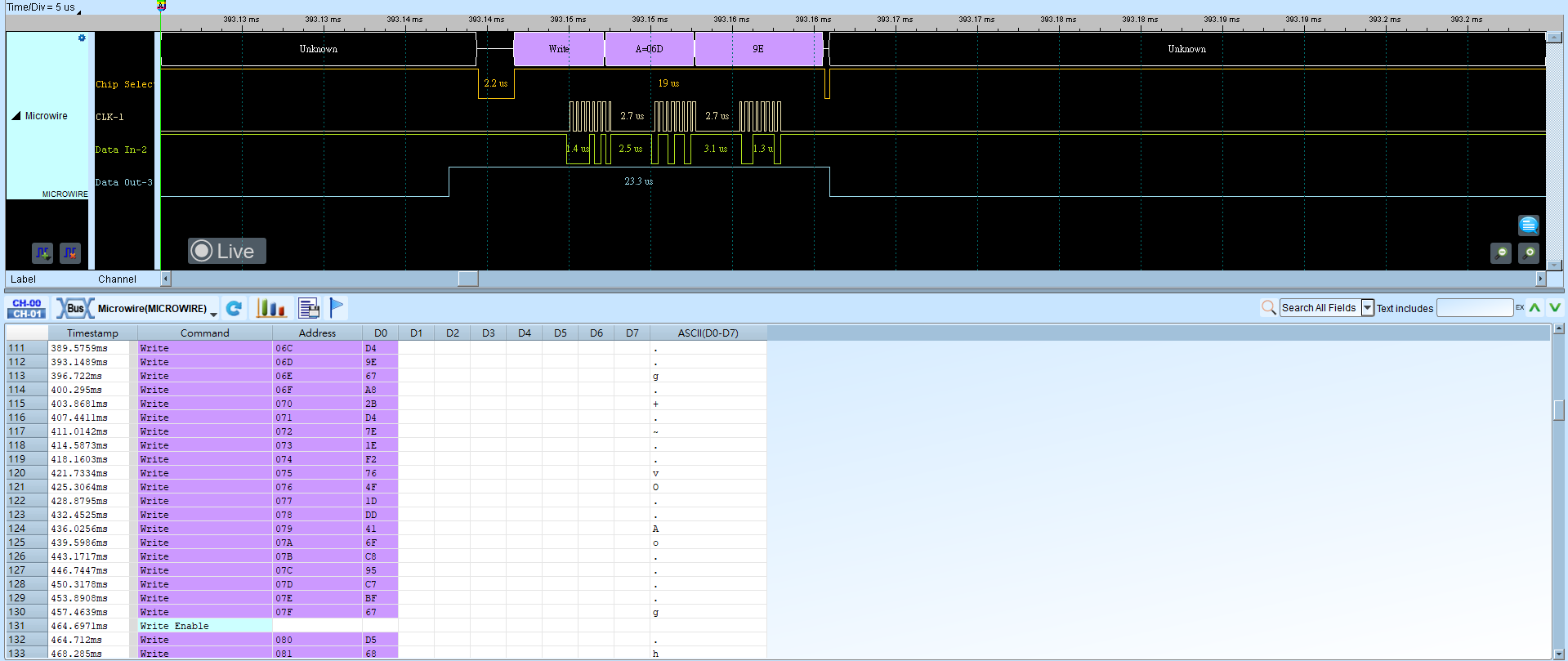

MICROWIRE Write
