Mini/Micro LED

The die positioning of display panel in Mini LED is 100–200 μm, and Micro LED is below 50 μm.

Wrong DCLK/Data/LE, Model, or timing options yields incorrect decode. For channel-prefix differences, see Settings.

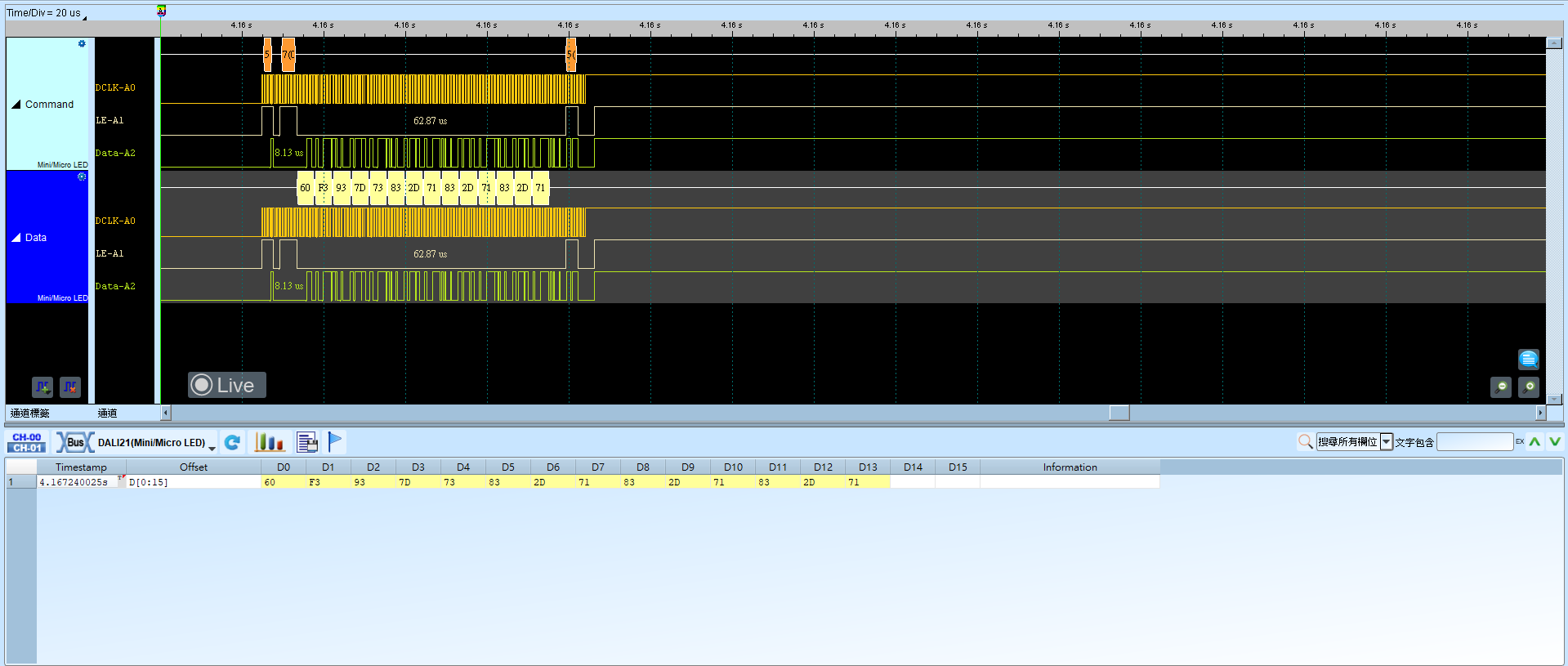

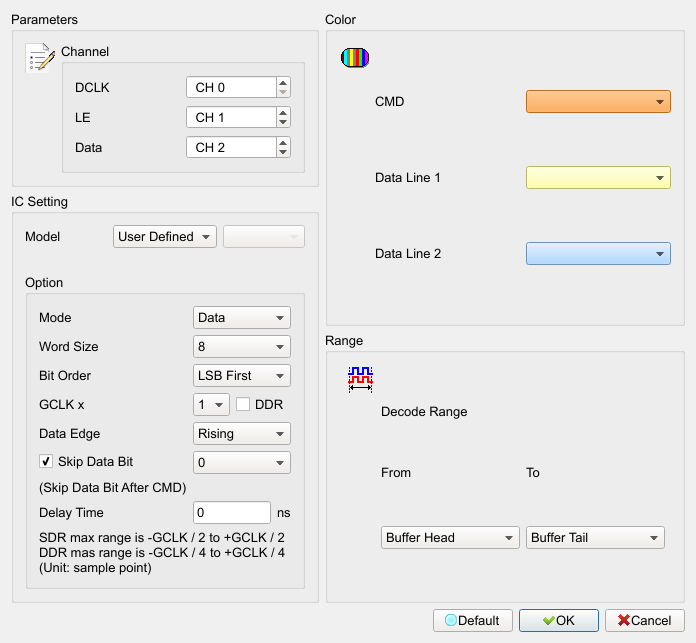

Decode Settings

Channel:
- DCLK: Clock channel.
- Data: Data channel.
- LE: Channel that switches CMD or DATA.
IC Setting:
- Model: IC model family (ICND/MBI/User Defined); after selecting the family, select the IC number when applicable. Default: User Defined.
- Mode: Data or Command. Default: Data.
- Word size: Number of data bits (8–16). Default: 8. Field enabled (Enable) when Model is User Defined.
- Bit order: LSB First/MSB First. Default: LSB First. Field enabled (Enable) when Model is User Defined.
- GCLK: Magnification of DCLK (1/2/4/8). Default: 1. Field enabled (Enable) when Model is User Defined.
- DDR: DDR mode. Field enabled (Enable) when checked (and Model is User Defined). Default: cleared.
- Data Edge: Rising/Falling latch. Default: Rising. Field enabled (Enable) when Model is User Defined.
- Skip Data Bit: Number of bits to skip after LE falling (0–15). Field enabled (Enable) when checked (and Model is User Defined). Default: checked, 0.
- Delay Time: Lead/delay time on the data line. Default: 0. Field enabled (Enable) when Model is User Defined.
