HID over SPI
HID Over SPI (Human Interface Device Over SPI) is mainly used on Windows 8 ARM platforms. Compared with HID Over I2C, HID Over SPI uses more pins and offers higher bandwidth, higher clock rates, and lower latency.
Wrong channel assignment prevents correct decode. For channel-prefix differences, see Settings.

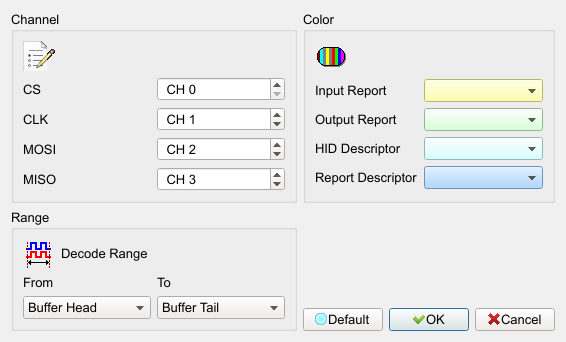

Decode Settings
- Channel: Assign Logic Analyzer channels for CS, CLK, MOSI, and MISO.

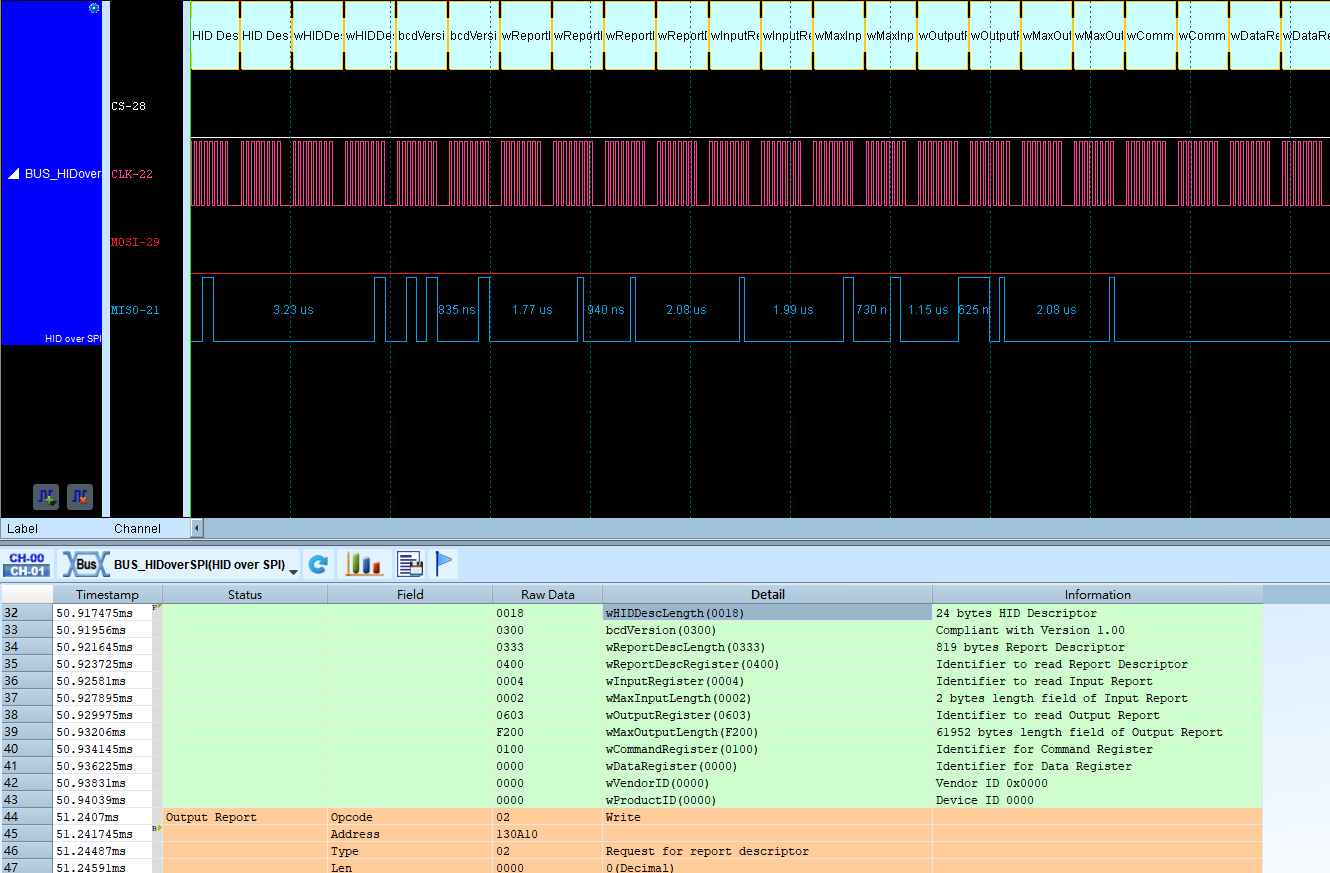

Result
