RC-5 (Philips RC-5 Protocol)
RC-5 is an infrared remote-control protocol defined by Philips for low-cost remote control. It defines device types (such as home entertainment systems) for compatibility. The newer RC-6 protocol adds more features, but many products still use RC-5 format.
Wrong encoding (with/without carrier) or Extended mode yields incorrect commands. For channel-prefix differences, see Settings.

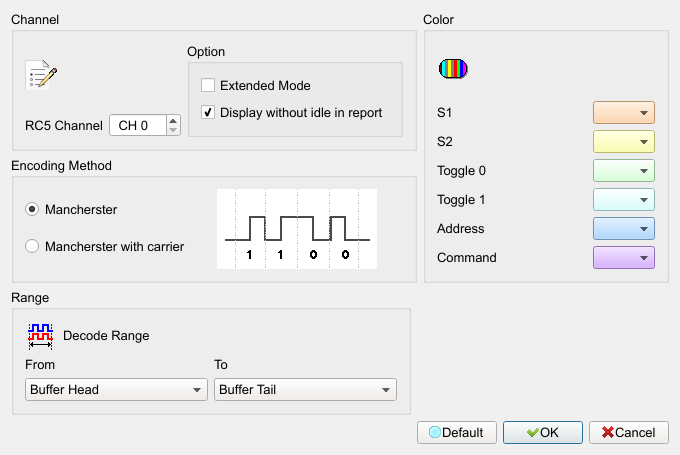

Decode Settings
- Channel: RC-5 signal channel.
- Enable Extended mode: When enabled, S2 becomes the 7th Command bit and the waveform shows Extend Command. Field enabled (Enable) when checked. Default: cleared.
- Display without idle in report: Omit Idle rows in the report. Field enabled (Enable) when checked. Default: checked.
- Encoding Method:
- Mancherster: Manchester without carrier. Default: this mode selected.
- Mancherster with carrier: Manchester with carrier.
Result

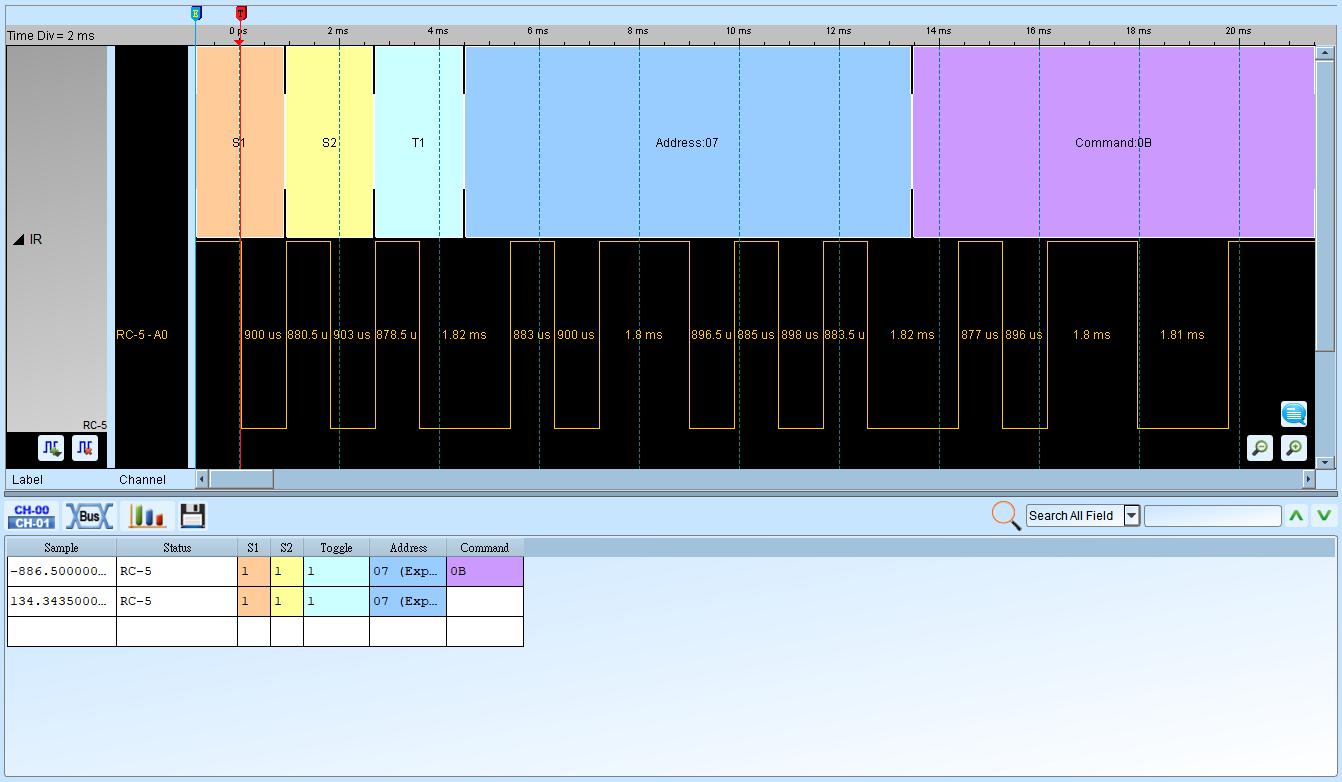

RC-5 without carrier:

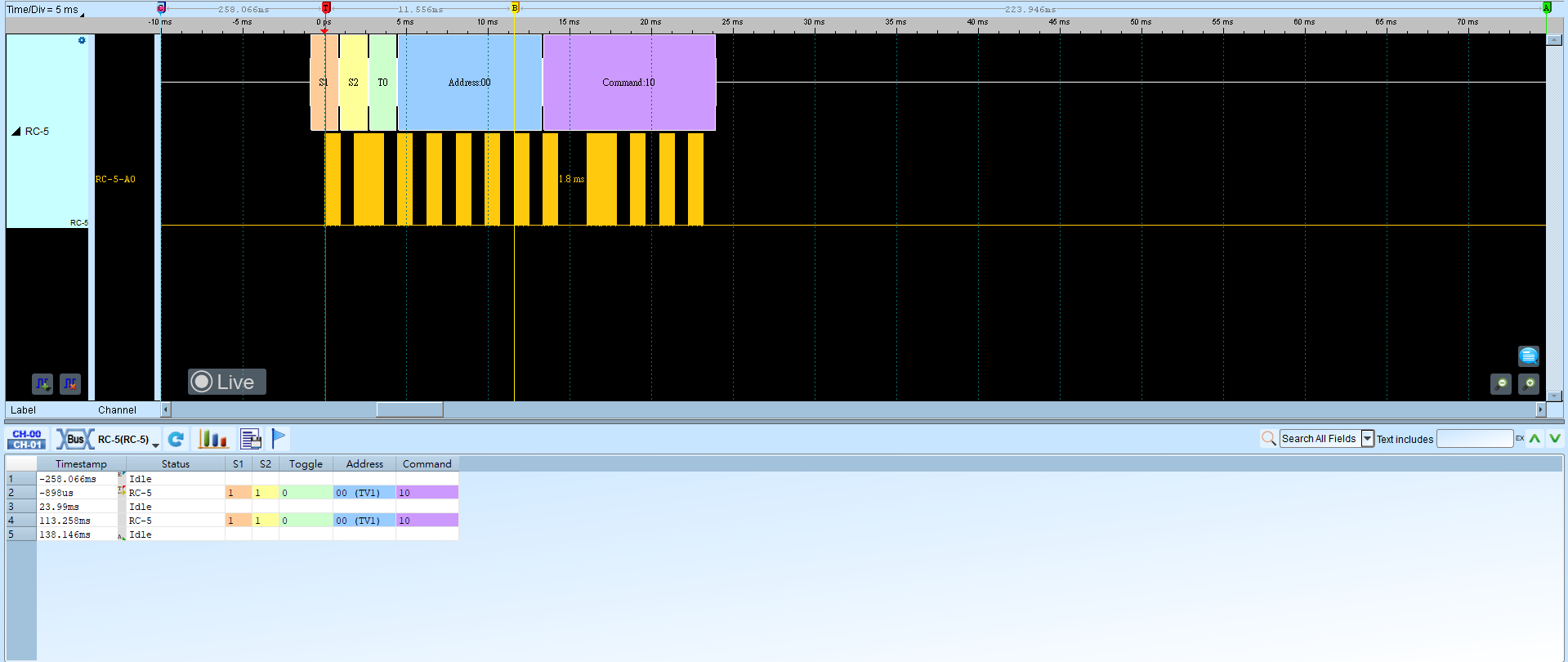

RC-5 with carrier:
