RC-6 (Philips RC-6 Protocol)
RC-6 is an infrared communications protocol defined by Philips. It inherits the RC-5 architecture and adds more features, with different operating modes and command lengths for different uses.
Wrong encoding, Addr & Cmd Bits, or idle display options yields incorrect frames. For channel-prefix differences, see Settings.

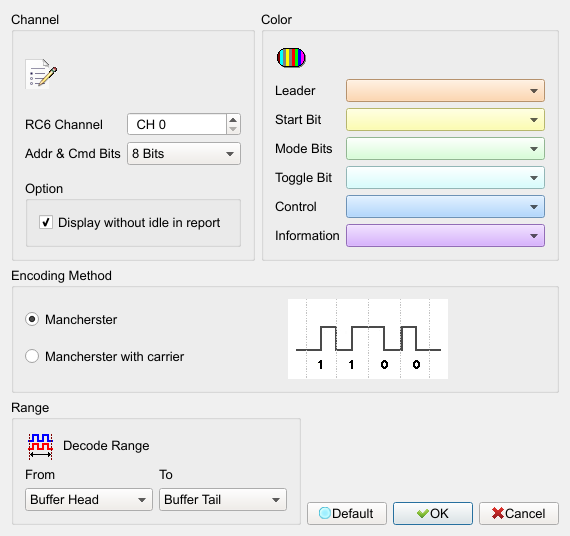

Decode Settings
- RC6 Channel: RC-6 signal channel.
- Addr & Cmd Bits: Address (Control) and Command (Information) width: 8 Bits or 16 Bits. Default: 8 Bits.
- Display without idle in report: Omit Idle rows in the report. Field enabled (Enable) when checked. Default: checked.
- Encoding Method:
- Mancherster: Manchester without carrier. Default: this mode selected.
- Mancherster with carrier: Manchester with carrier.
Result

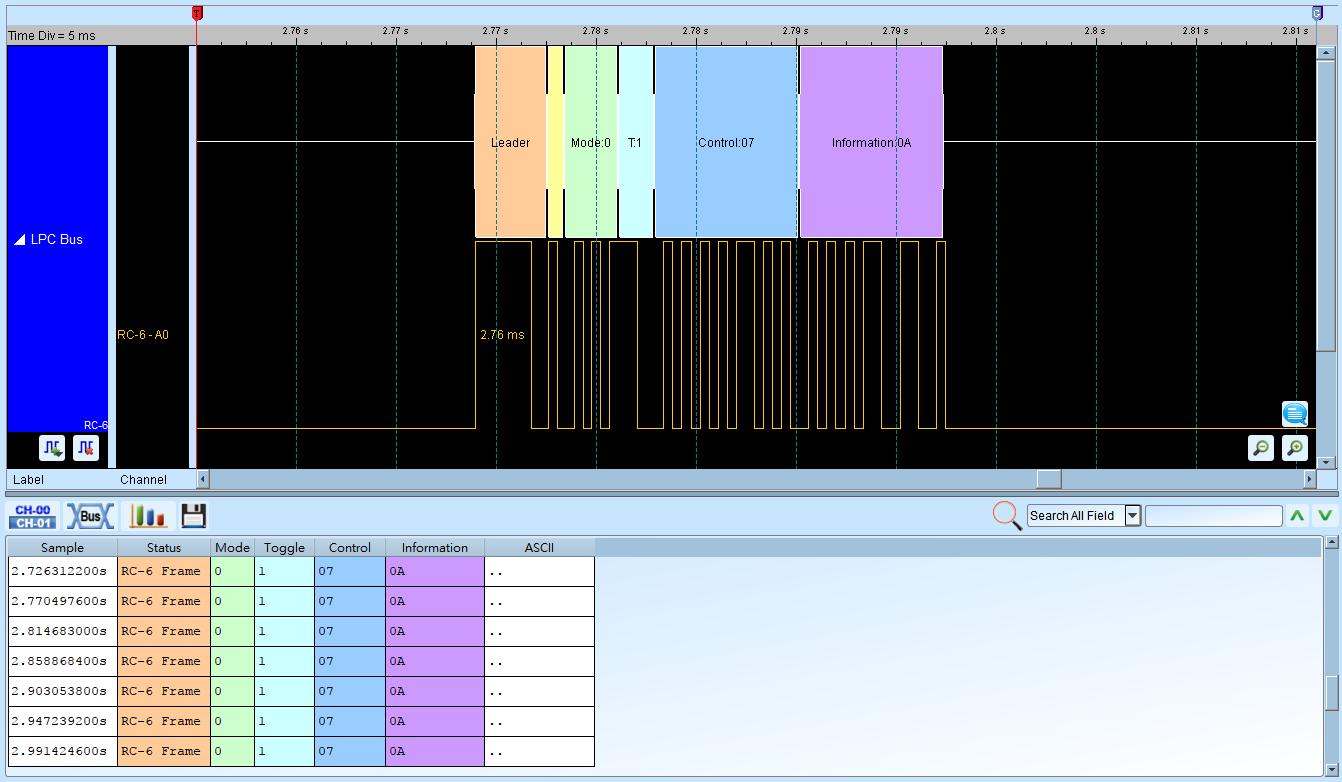

RC-6 without carrier:

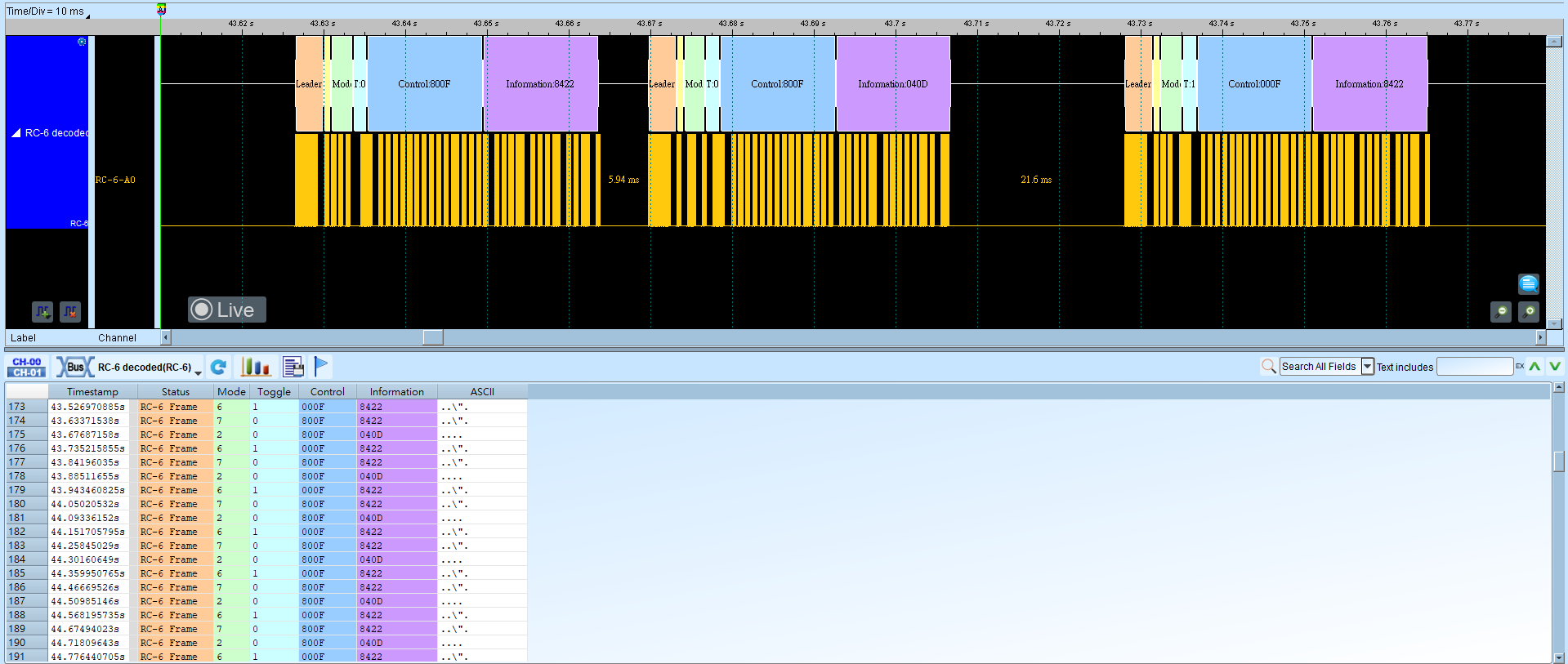

RC-6 with carrier:
