MIPI I3C 1.2
MIPI I3C is an extension of the I2C interface, so it still maintains the two-wire SCL (clock) and SDA (data) as I2C. The frequency of MIPI I3C SCL clock is defined in the spec up to 12.9 MHz, and generally it is 12.5 MHz. It supports three operating voltages: 1.2 V/1.8 V/3.3 V.
MIPI I3C is a new generation sensor interface specification that integrates multiple sensor interfaces in a unified specification, mainly to simplify sensor integration in smart phones, IoT devices, and automotive systems.
Wrong SCL/SDA or Startup mode yields incorrect decode. For channel-prefix differences, see Settings.

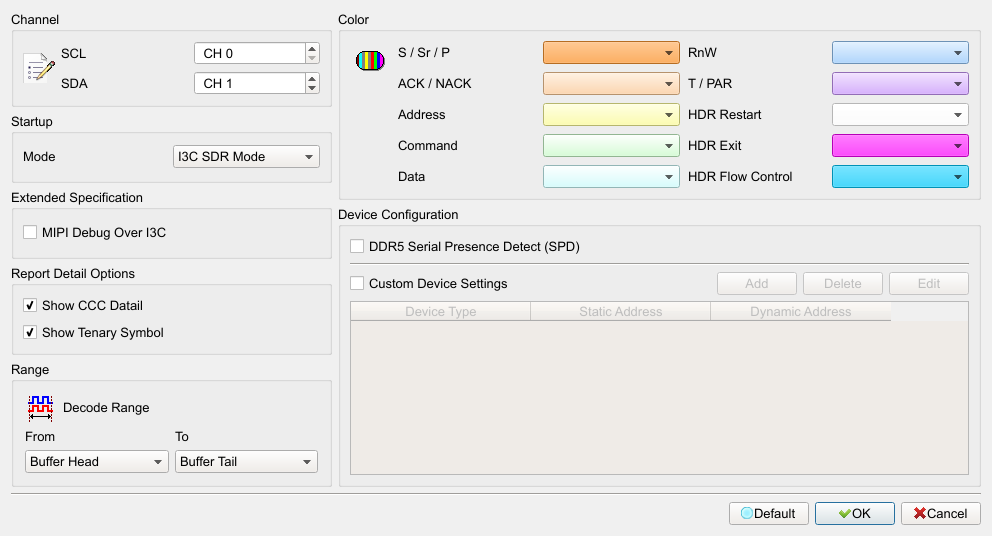

Decode Settings
- Channel:
- Clock Channel (SCL): Transfer clock of I3C.
- Data Channel (SDA): Transfer data of I3C.
- Startup: Mode currently running on the bus:
- I3C SDR Mode
- I2C Mode
- I3C HDR-DDR Mode
- I3C HDR-TSP Mode
- I3C HDR-TSL Mode. Default: I3C SDR Mode.
- Extended Specification—MIPI Debug Over I3C: Commands for debugging I3C. Field enabled (Enable) when checked. Default: cleared.
- Report Detail Options:
- Show CCC Detail: Show CCC (Common Command Code) information in the report. Field enabled (Enable) when checked. Default: checked.
- Show Ternary Symbol: Show the Ternary Symbol in the report. Field enabled (Enable) when checked. Default: checked.
- Device Configuration:
- DDR5 Serial Presence Detect (SPD): SPD function. Field enabled (Enable) when checked. Default: cleared.
- Custom Device Settings: Add user-defined devices (I2C or MCTP). Field enabled (Enable) when checked. Default: cleared.

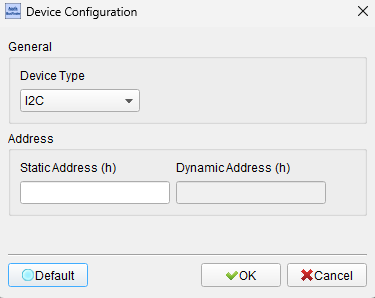

Custom Device Settings dialog:

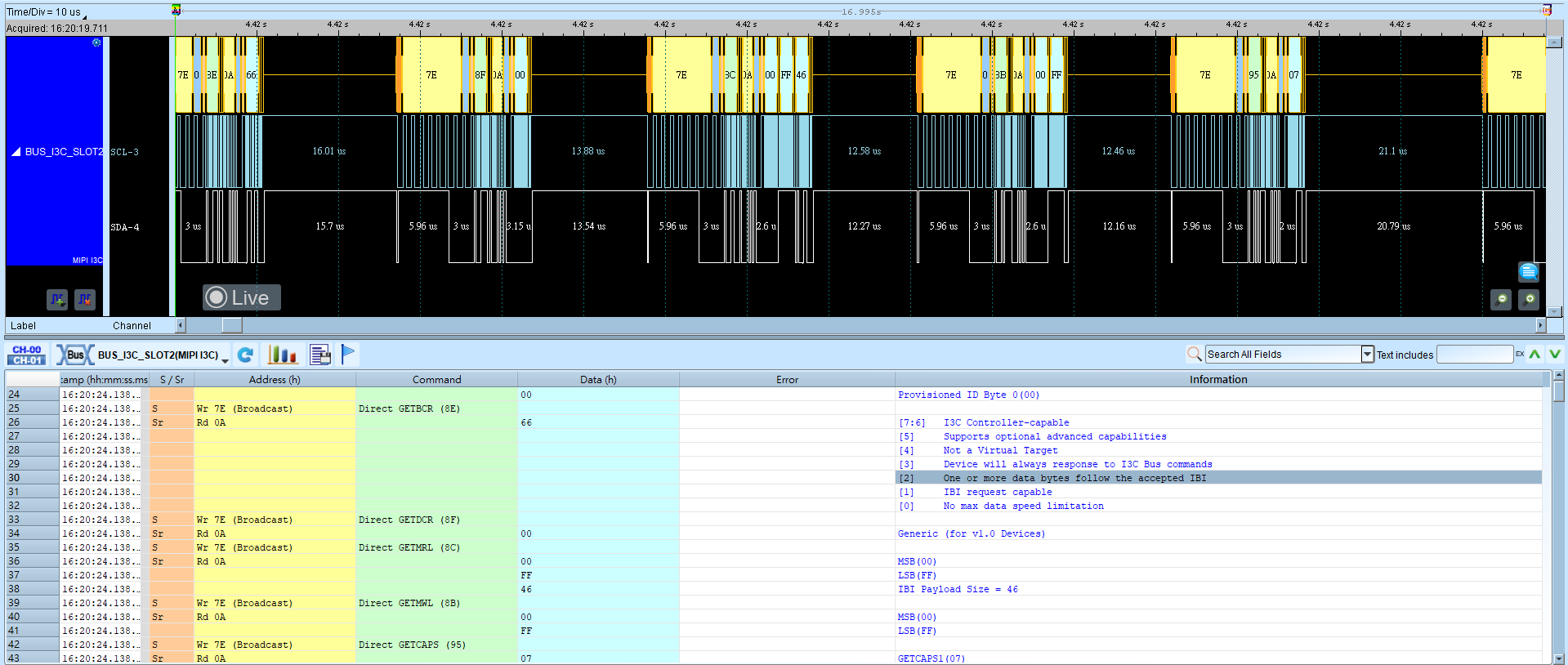

Result
