SSI (Synchronous Serial Interface)
The Synchronous Serial Interface (SSI) protocol has four kinds of signals: Serial Clock (SCK), Transmit Data, Receive Data, and Transmit/Receive Frame Sync (FS). SSI supports Normal or Network mode, independent of whether the transmitter and receiver are synchronous or asynchronous.
Wrong Mode/Line Of Data settings misread frames. For channel-prefix differences, see Settings.

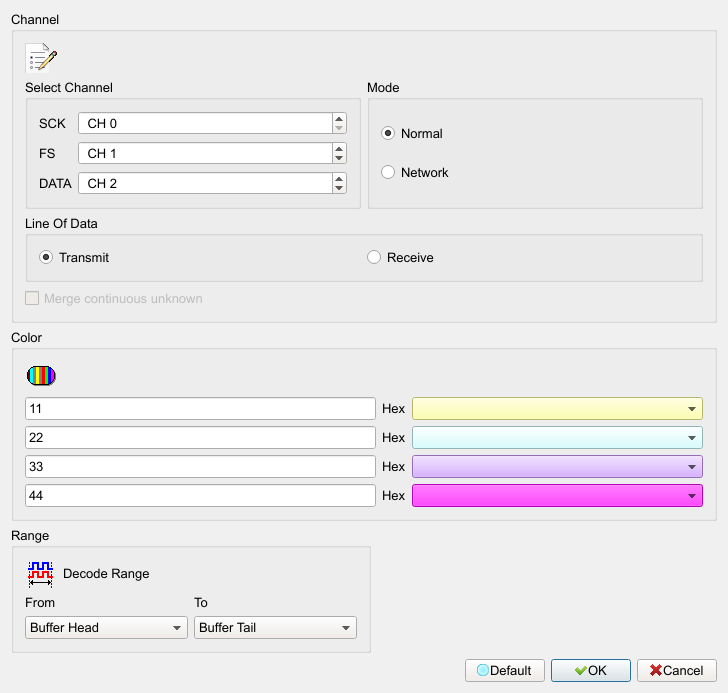

Decode Settings
- Channel: Assign SCK/FS/DATA channels on the logic analyzer.
- Mode: Normal or Network. Default is Normal.
- Line Of Data: Transmit (Tx) or Receive (Rx). Default is Tx.
- Merge continuous unknown: Merge consecutive unknown data. Field enabled (Enable) only in Network Receive mode; otherwise Field disabled (Disable). Default is Field disabled (Disable).

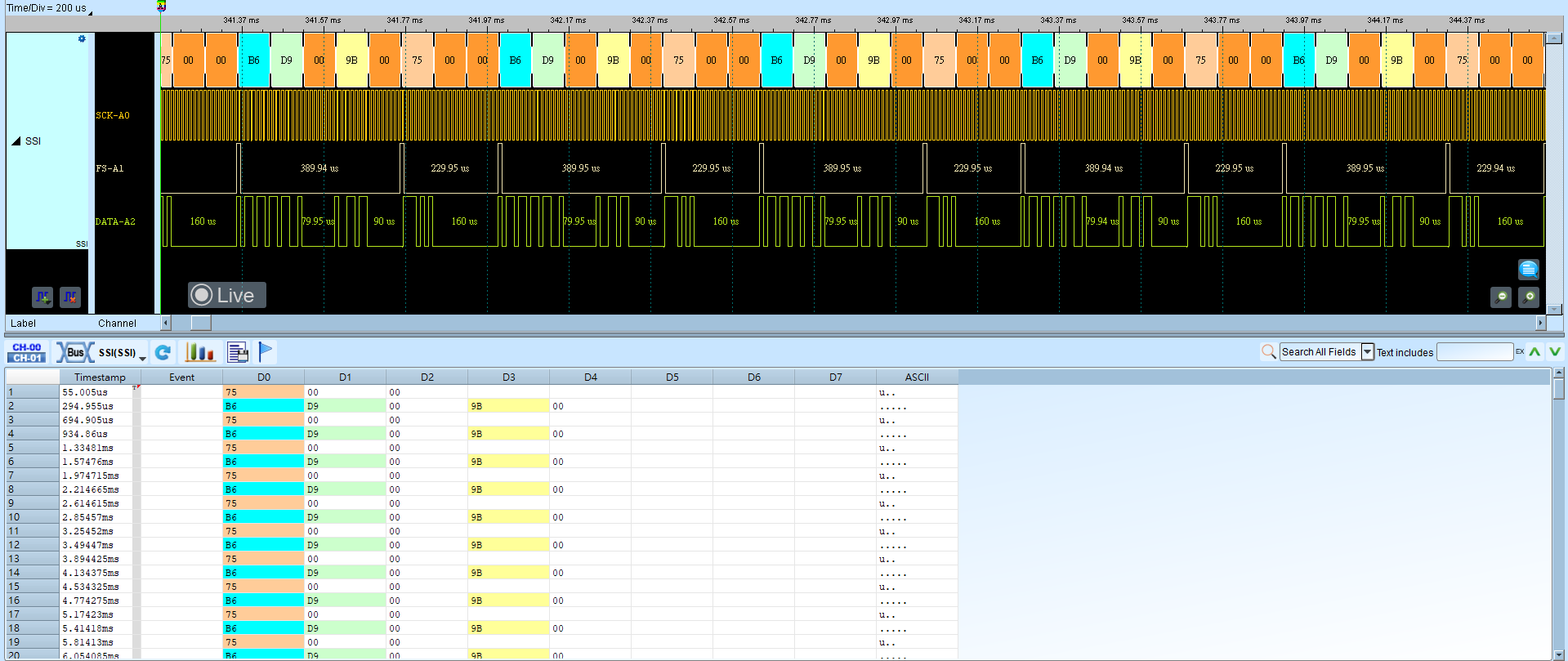

Result
