SMI (Serial Microprocessor Interface)
SMI (Serial Microprocessor Interface), defined by BDNC, uses one Clock line and one Data line.
Wrong CLK/Data assignment prevents correct decode. For channel-prefix differences, see Settings.

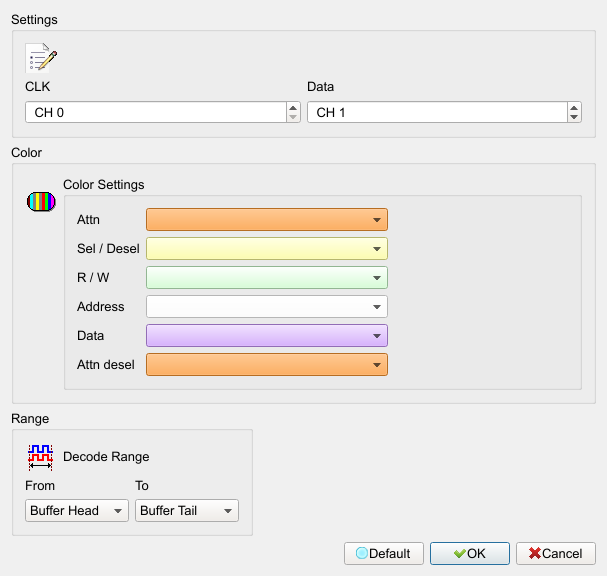

Decode Settings
- CLK: Clock channel for data transfer.
- Data: Data channel for data transfer.

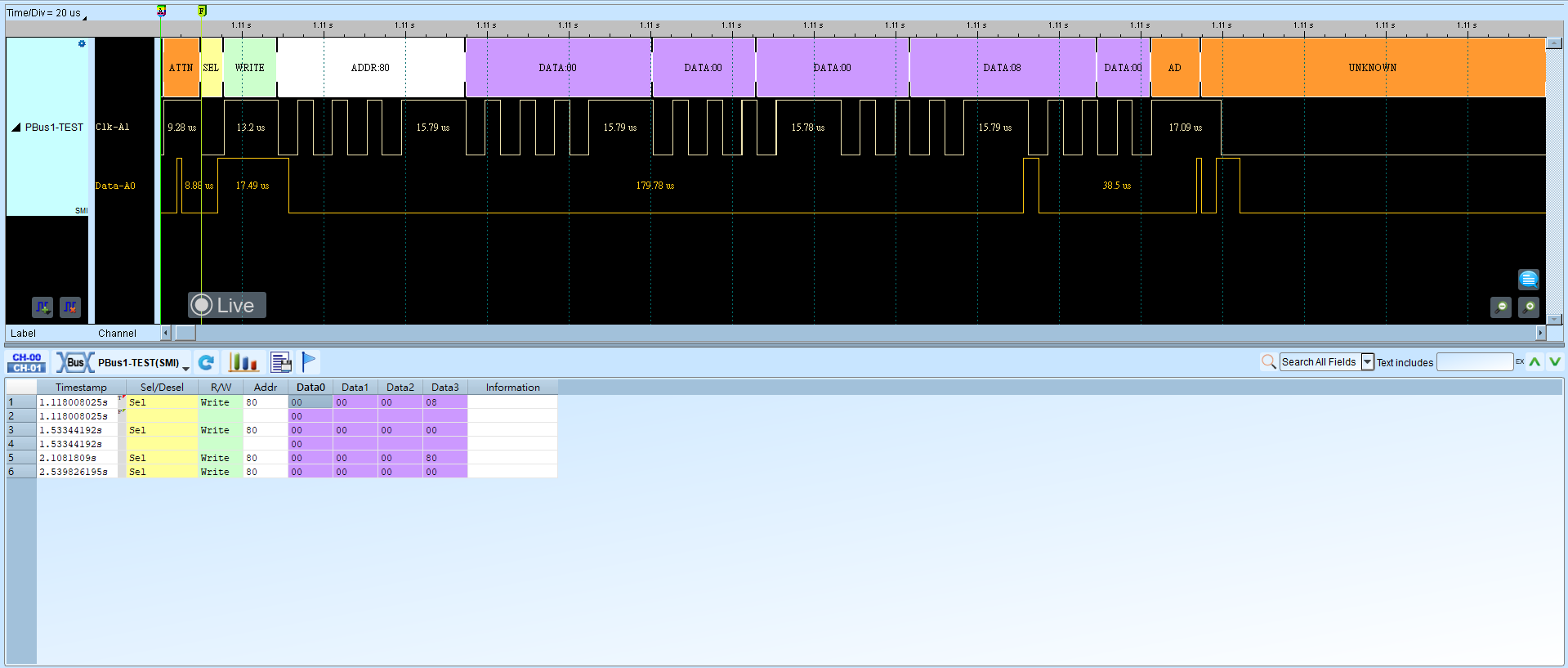

Result
