LPC (Low pin count)
The LPC (Low pin count) bus was developed by Intel to replace the ISA bus for legacy I/O data transfers.
Wrong Data Edge yields incorrect sampling; unchecked report fields are omitted. For channel-prefix differences, see Settings.

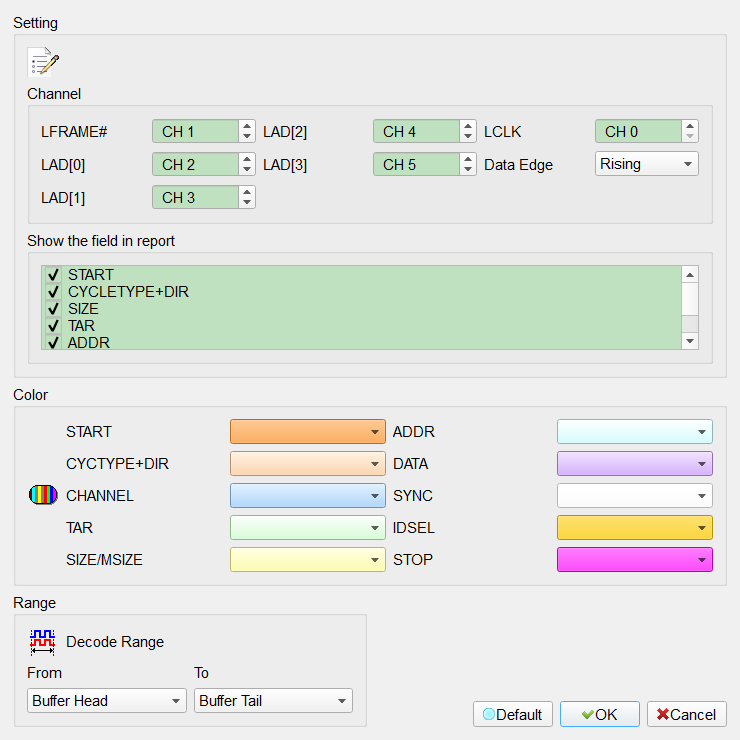

Decode Settings
- LCLK: LPC transfer clock.
- Data Edge: Latch data on the LCLK rising or falling edge (Rising / Falling). Default: Falling.
- LFRAME#: Marks the start of each frame cycle, or aborts a frame transfer.
- LAD[0-3]: Data bus for commands, addresses, and data. Default index is 1.
- Show the field in report: Report filtering; check fields to show in the report window. Field enabled (Enable) when checked. Default: all fields checked.

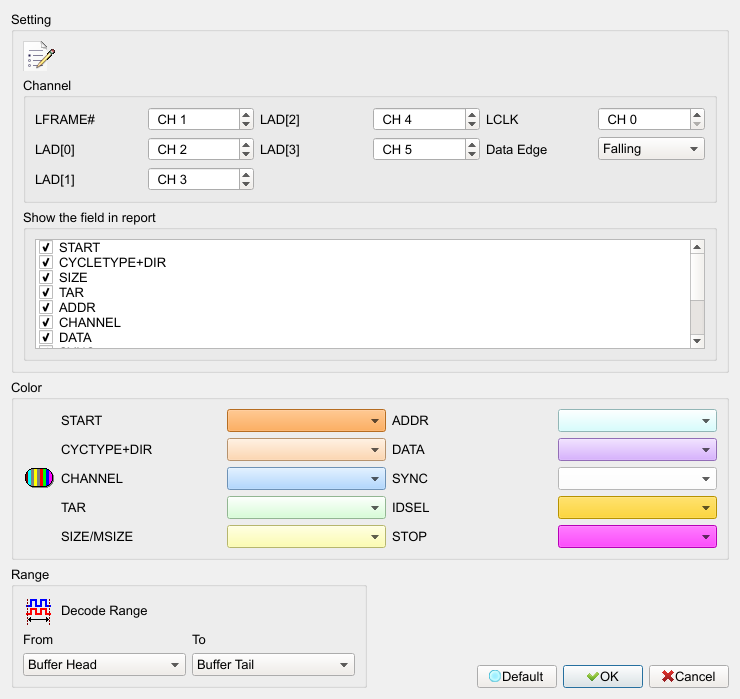

Result
