FlexRay
FlexRay is an in-vehicle communication network standard that supports two communication channels, each up to 10 Mbps.
Wrong Bit Rate or decode mode causes failures; use Auto detect Bit Rate first. For channel-prefix differences, see Settings.

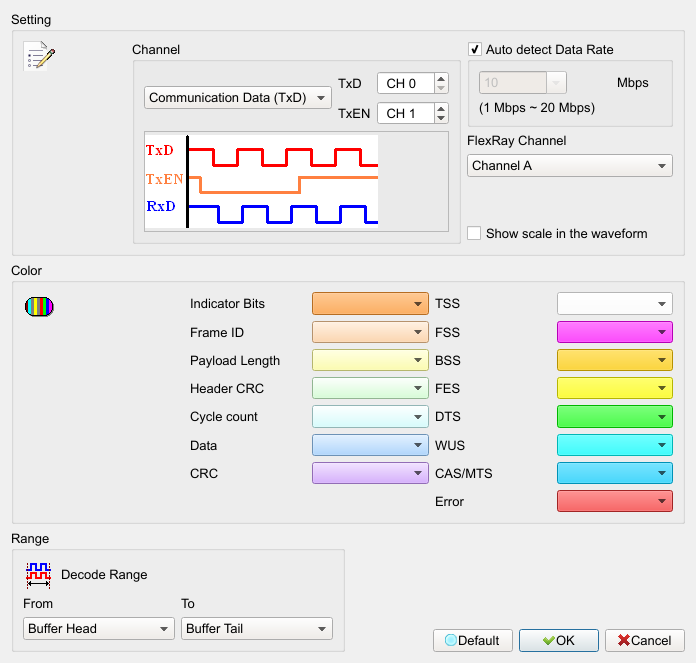

Decode Settings
- Channel / Decode Mode: Communication-layer decode mode. Default: Communication Data (TxD).
- Communication Data (TxD): Logic-layer measurement from the FlexRay transceiver TxD and TxEN.
- Communication Data (RxD): Logic-layer measurement from RxD, optionally including RxEN.
- RxEN: In RxD mode, include the RxEN channel. Field enabled (Enable) the second channel when checked. Visible only in RxD mode.
- Auto detect Bit Rate: Auto-detect Data Rate. Field enabled (Enable) when checked; manual rate is field disabled (Disable). Default: checked. When cleared, choose built-in 10 / 5 / 2.5 Mbps or enter about 1–20 Mbps; Default manual value: 10 Mbps.
- Show scale in the waveform: Show bit scale on the waveform. Field enabled (Enable) when checked. Default: cleared.
- FlexRay Channel: Channel A or B for Frame CRC checkingChannel A.
Result

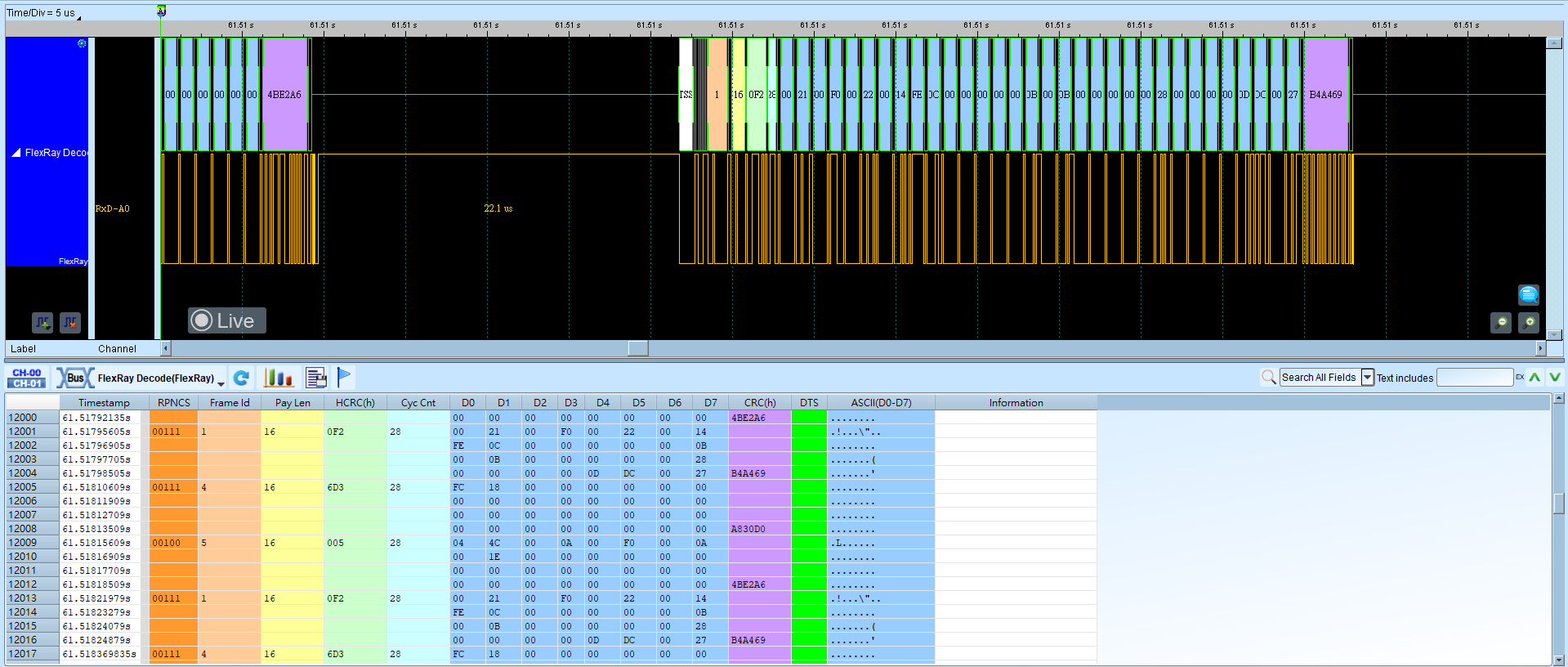

High-speed FlexRay Communication Data (RxD)
