MIPI RFFE 3 (MIPI RF Front-End Control Interface)
MIPI RFFE (RF Front-End Control Interface) designed by the MIPI Alliance is for controlling RF front-end devices including Power Amplifiers, Low-Noise Amplifiers, filters, switches, power management modules, antenna tuners and sensors.
Wrong SCLK/SDATA yields incorrect decode. For channel-prefix differences, see Settings.

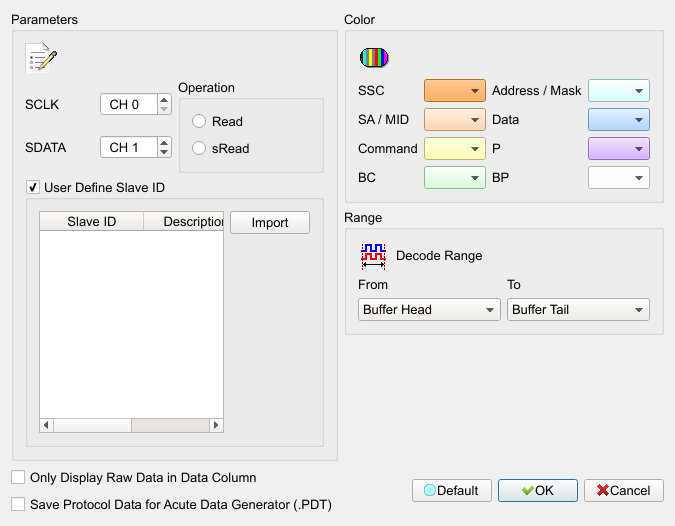

Decode Settings
- Channel: Assign SCLK and SDATA channels on the logic analyzer.
- Operation: Read or sRead. (Default button does not reset this field.)
- User Define Slave ID: Add user-defined Slave ID. Field enabled (Enable) when checked. (Default button does not reset this field.)
- Only Display Raw Data in Data Column: Show only raw data in the data column. Field enabled (Enable) when checked. Default: cleared.
- Save Protocol Data for Acute Data Generator (.PDT): Save the analyzed result as a .PDT file for Acute Data Generator. Field enabled (Enable) when checked. Default: cleared.

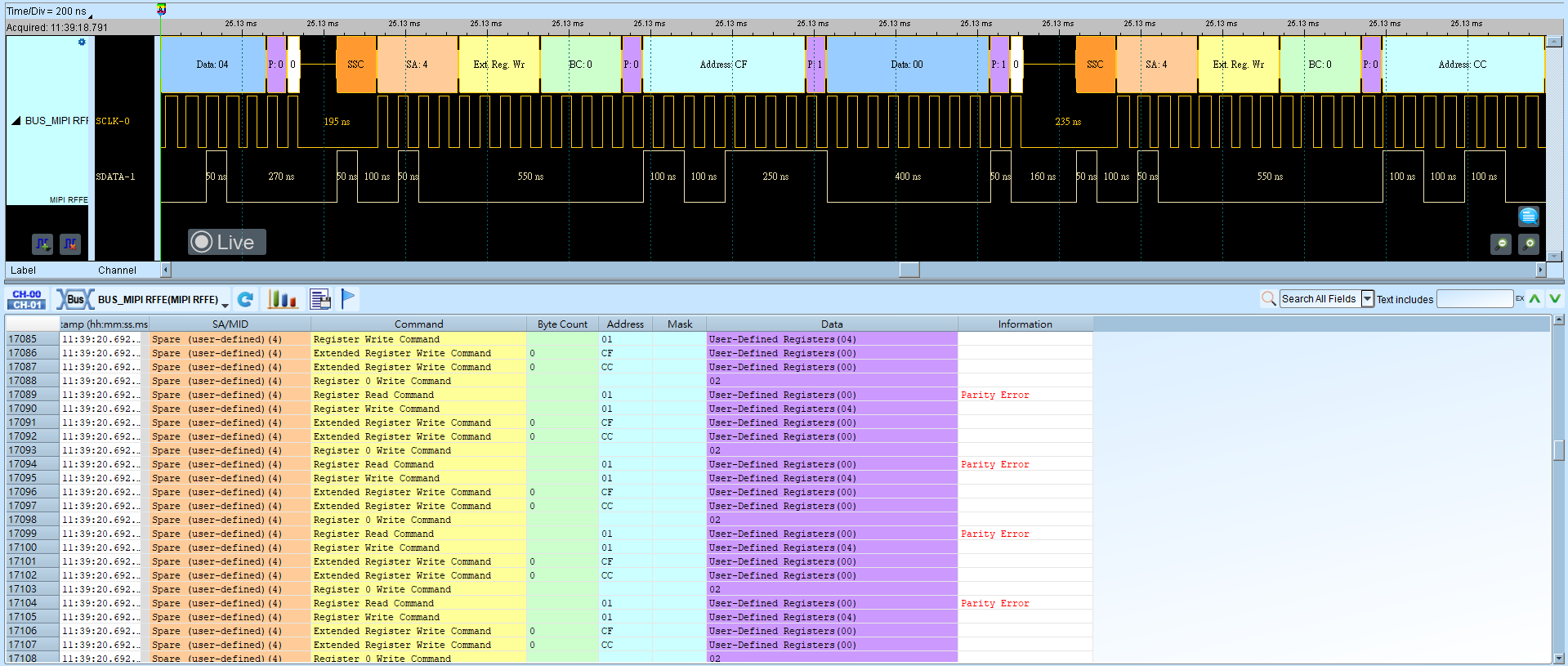

Result
