UFCS (Universal Fast Charging Specification)
UFCS (Universal Fast Charging Specification) defines a unified fast-charging standard for mobile terminals to improve interoperability. The supply port uses USB Type-A; signaling follows USB D+/D-.
For channel-prefix differences, see Settings.

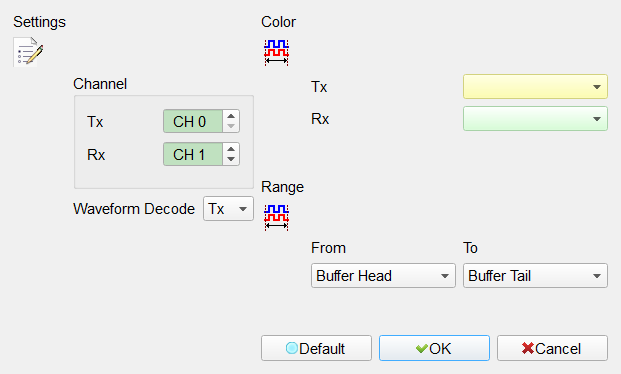

Decode Settings
- Channel: Assign UFCS Tx/Rx channels.
- Waveform Decode: Tx/Rx. One decoder cannot show multiple waveform-decode sets at once; add another decoder to view both. Default is Tx.

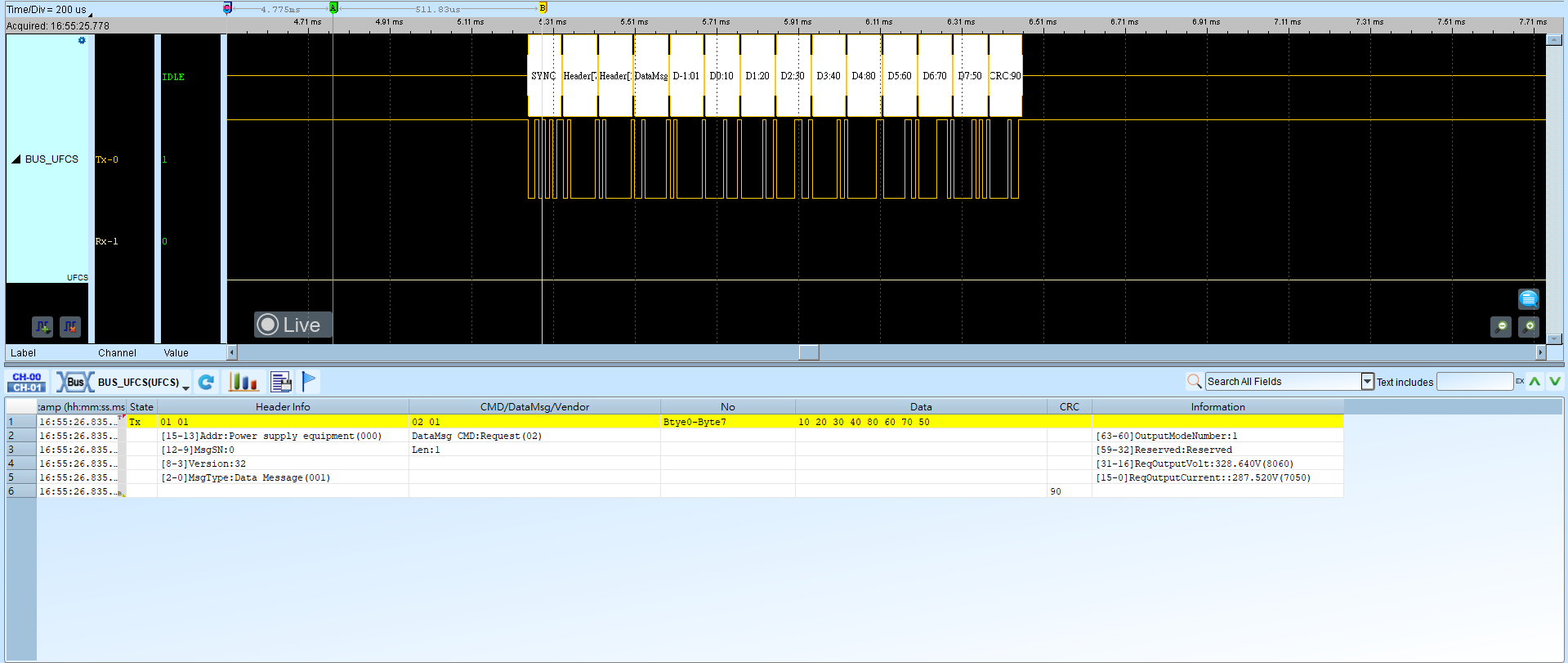

Result
