IOLink

IO-Link connects smart sensors and actuators to automation systems per the Single-drop digital communication interface for small sensors and actuators (SDCI) in IEC 61131-9. The specification covers electrical connections and digital protocols so smart sensors and actuators can interact with automation systems.

Wrong Transmission Timeout / Response Time or analysis mode affects Master/Device decode and report content. For channel-prefix differences, see Settings.

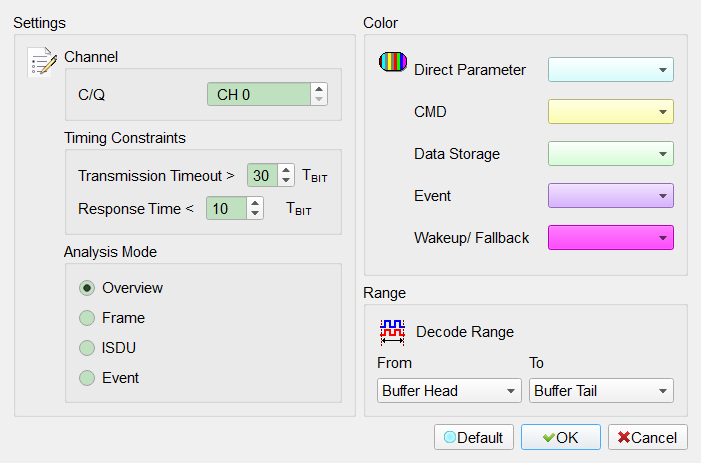

Decode Settings

IO-Link Decode Settings

• Channel: Assign the Logic Analyzer channel for the C/Q signal.
• Timing Constraints:
  • Transmission Timeout: If IDLE is greater than this value, the next data is decoded as Master. Default: 30 TBIT.
  • Response Time: If IDLE is less than this value and greater than 3 TBIT, the next data is decoded as Device. Default: 10 TBIT.
• Analysis Mode: Report analysis mode (Overview, Frame, ISDU, Event). Default: Overview.

Result

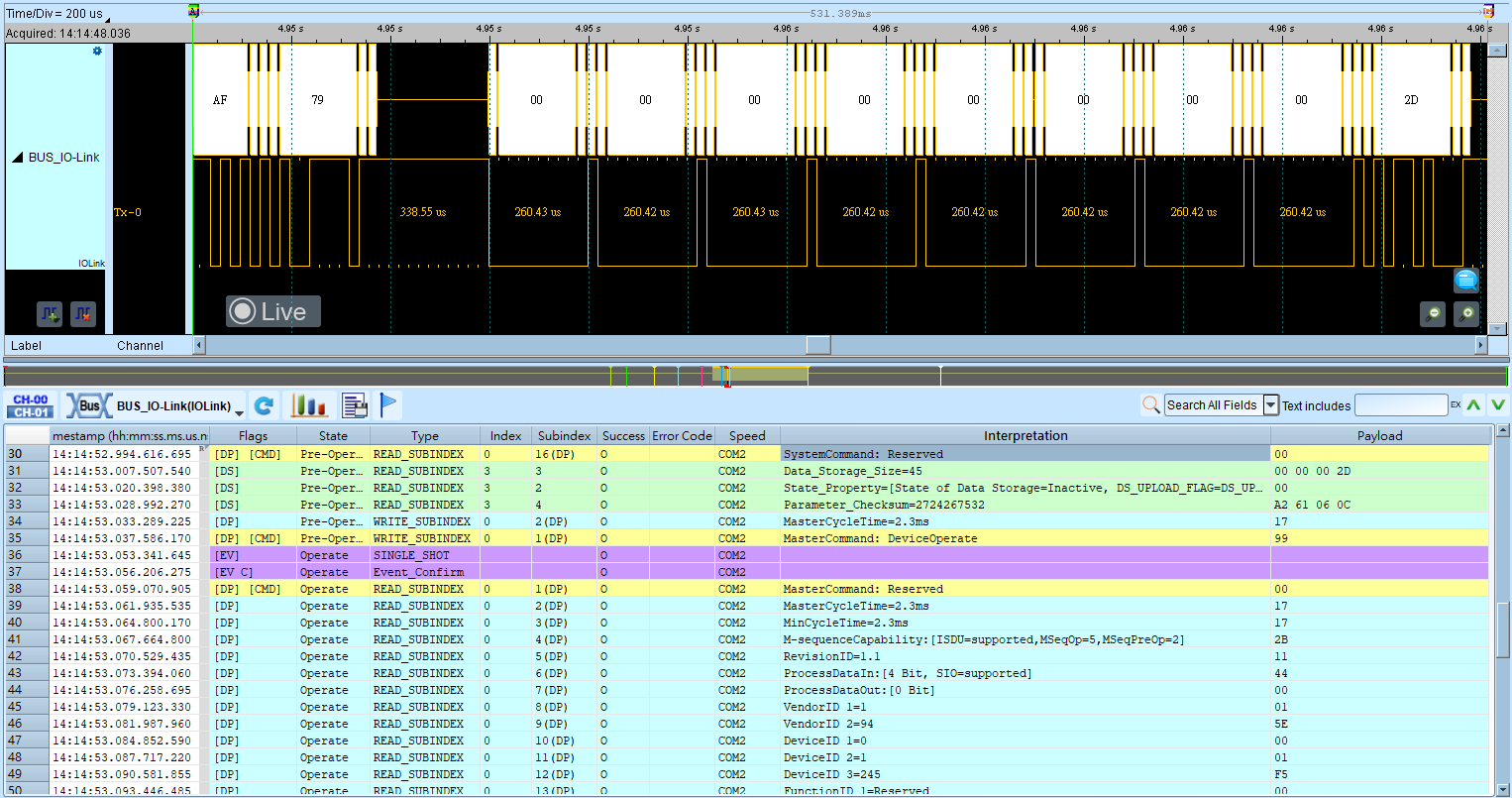

Overview

IO-Link Overview

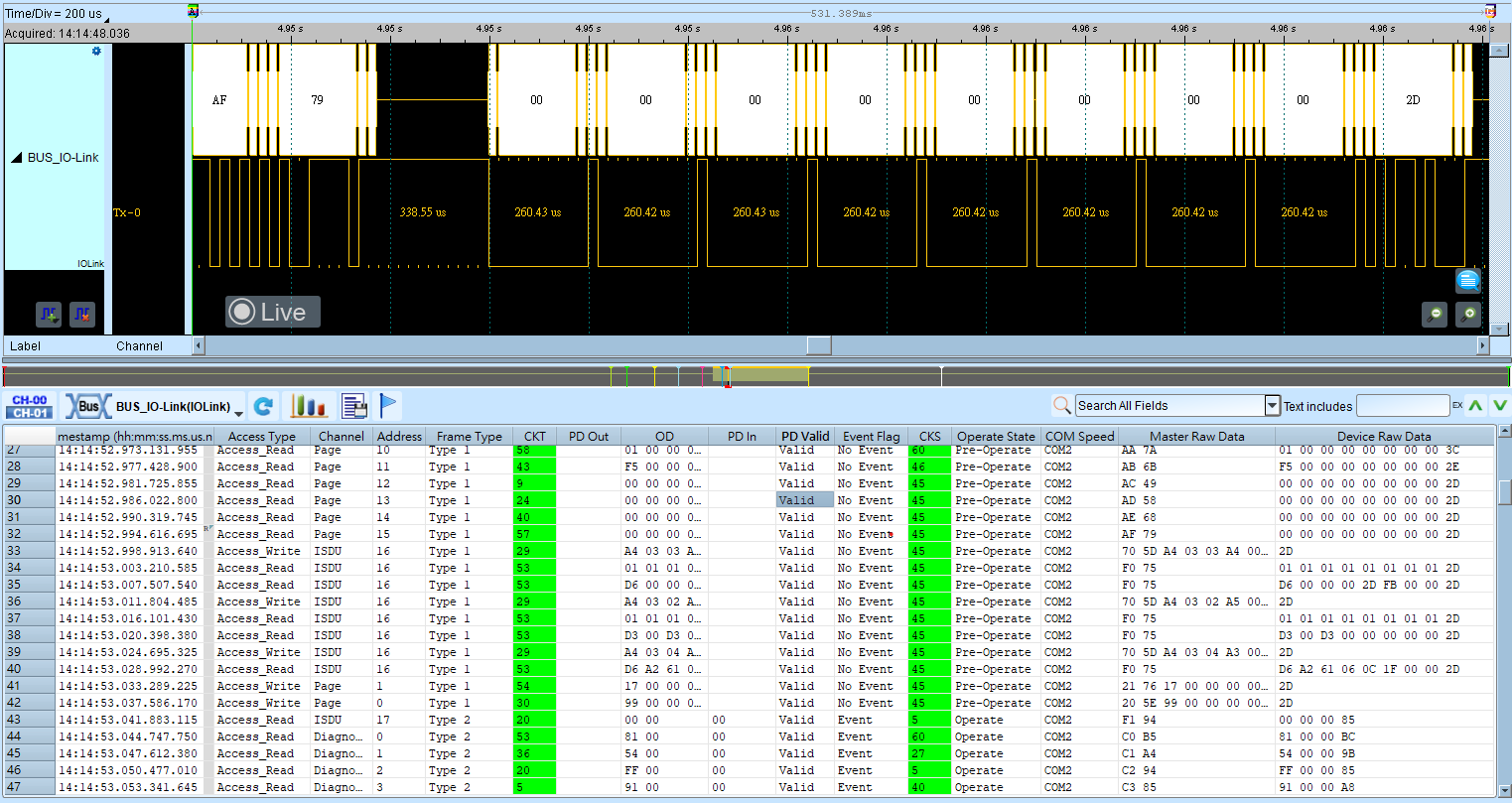

Frame

IO-Link Frame

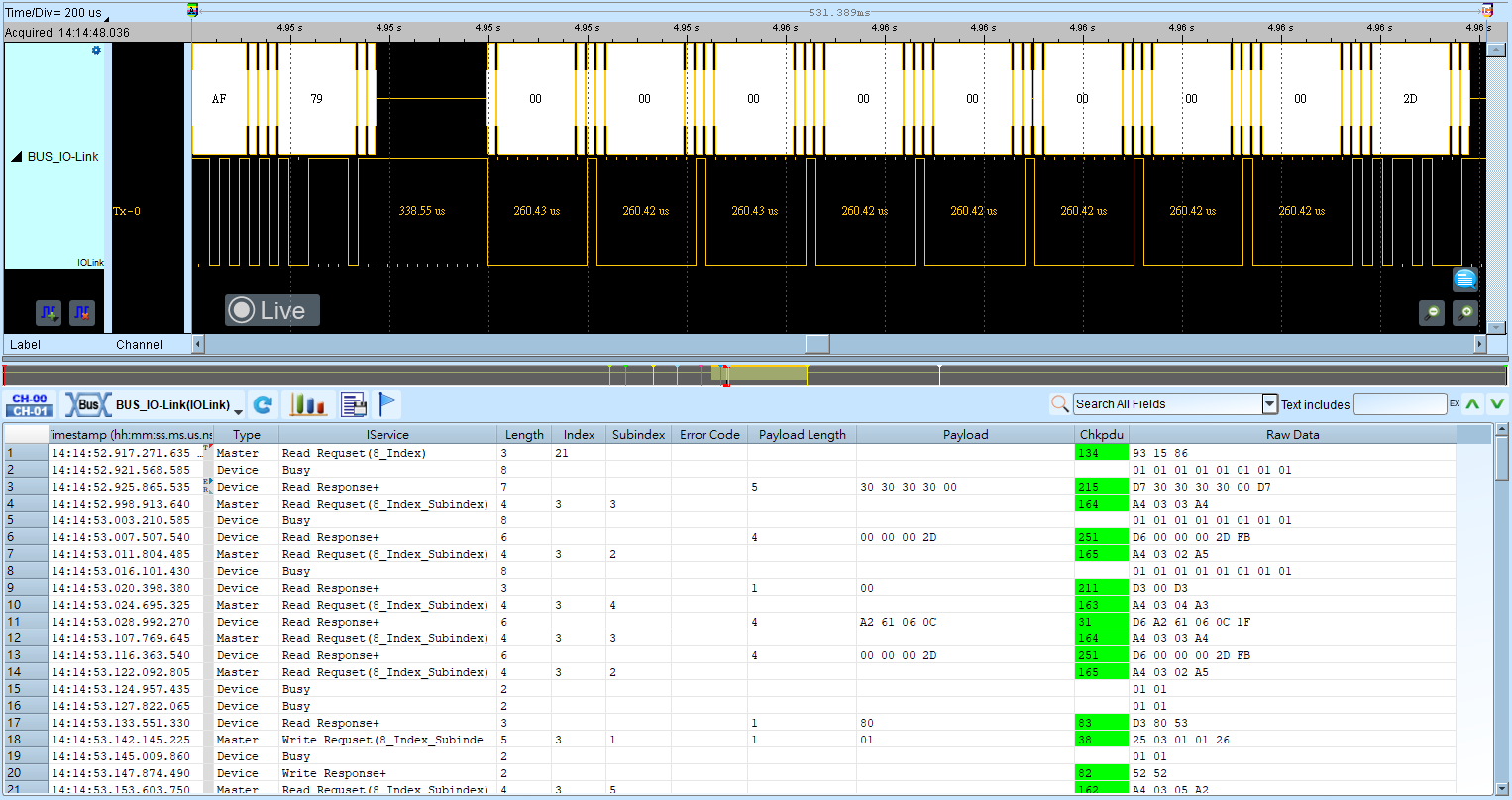

ISDU

IO-Link ISDU

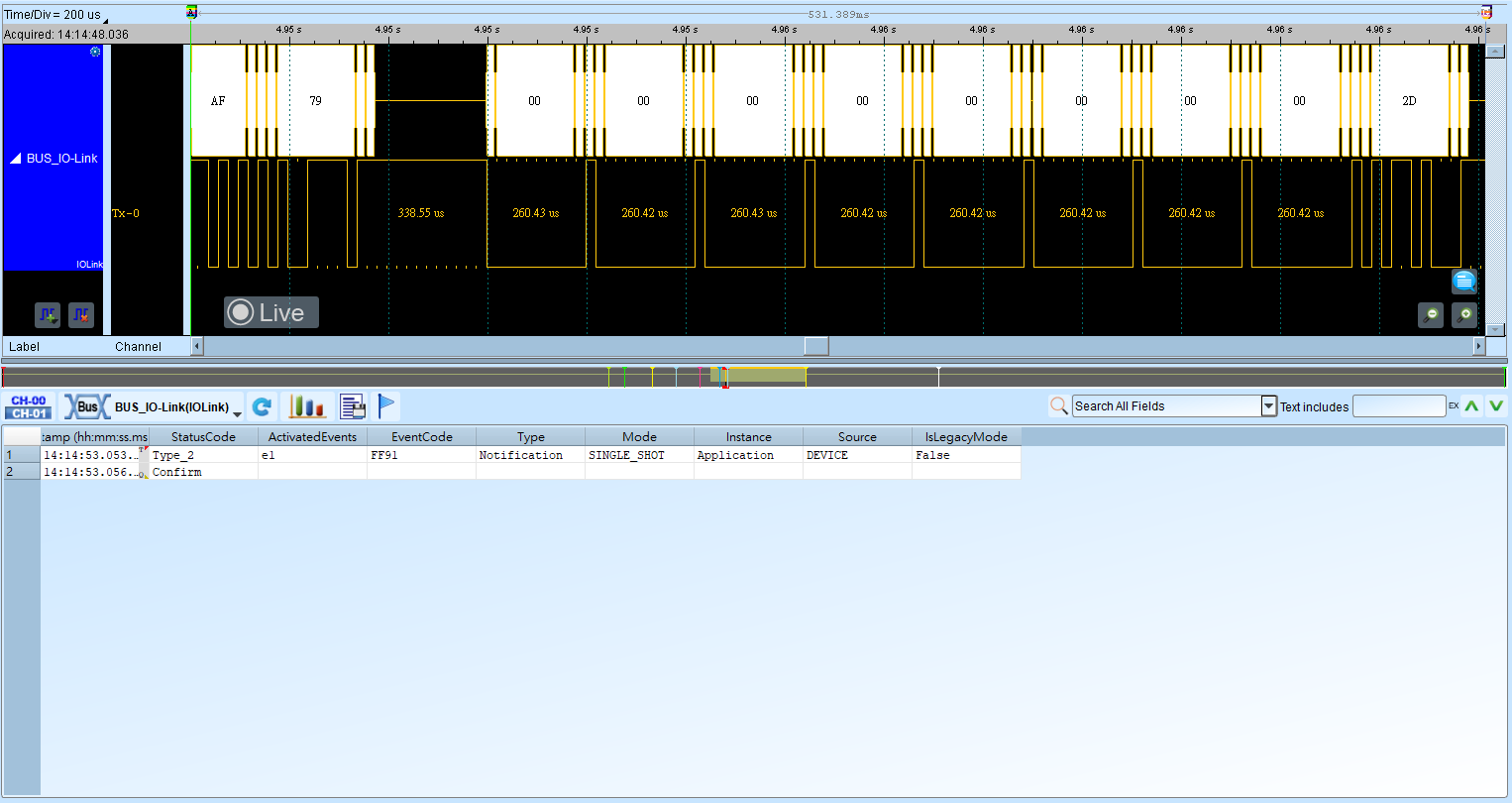

Event

IO-Link Event
