BiSS-C Trigger (Bidirectional Serial Synchronous interface)

BiSS-C trigger supports frame start / end, CRC errors, and Clause Trigger pattern match on CTS / IDS / CMD / IDL and Data. Channels are MA / SLO.

See Settings and Clause Trigger.

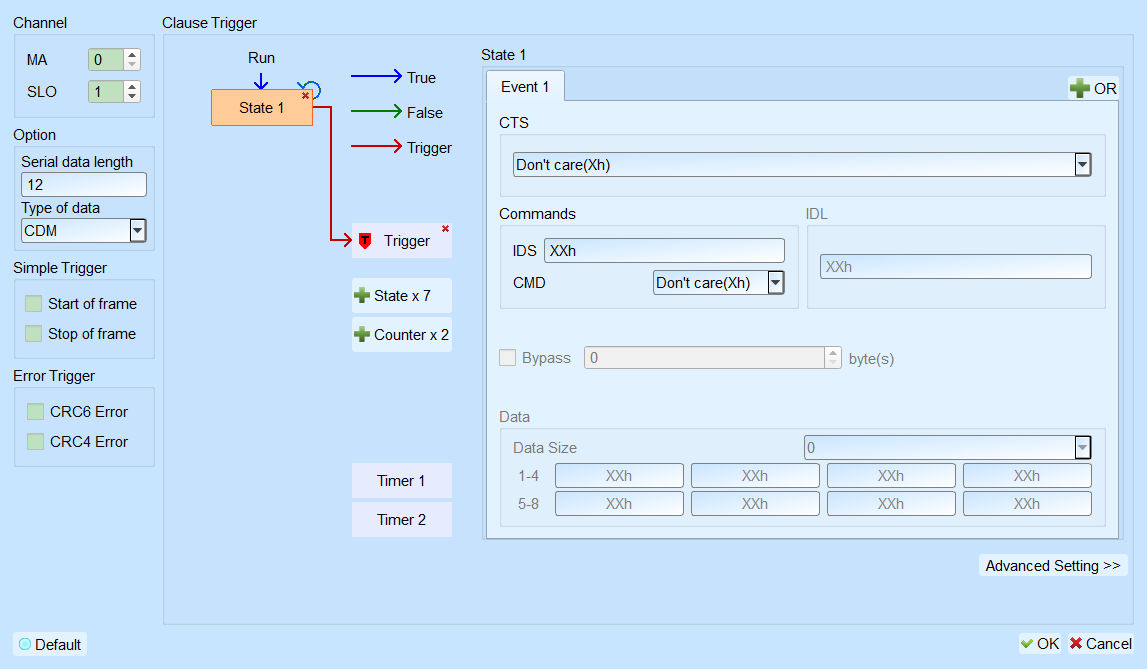

Trigger Settings

BiSS-C Trigger

• Channel: Assign MA / SLO (channel indices omitted).
• Serial data length: SCD bit length (max 255). Default: 12.
• Type of data: CDM / CDS. Default: CDM.
• Simple Trigger: Start of frame / End of frame. Default: all cleared.
• Error Trigger: CRC6 Error / CRC4 Error. Default: all cleared.
• Clause Trigger: See Clause Trigger.
• State: After selecting Commands or Register Communication under CTS, enter IDS / CMD / IDL / Data as a data pattern; XXh = Don't care.
  • CTS / CMD / IDS / IDL: Default CTS / CMD = Don't care; IDS / IDL = XXh.
  • Data: Default each field XXh; Data Size Default 0.
  • Bypass: Checking Bypass enables (Enable) the offset. Default: cleared, offset 0.
