CAN FD Trigger (Controller Area Network, CAN with Flexible Data-Rate)

CAN / CAN FD trigger supports frame types, error checks, and Clause Trigger ID / Data patterns. The physical layer is differential (CAN_H / CAN_L).

Wrong Data Rate or channel mode prevents triggers. TravelBus offers a dedicated CAN port. See Settings and Clause Trigger.

Trigger Settings

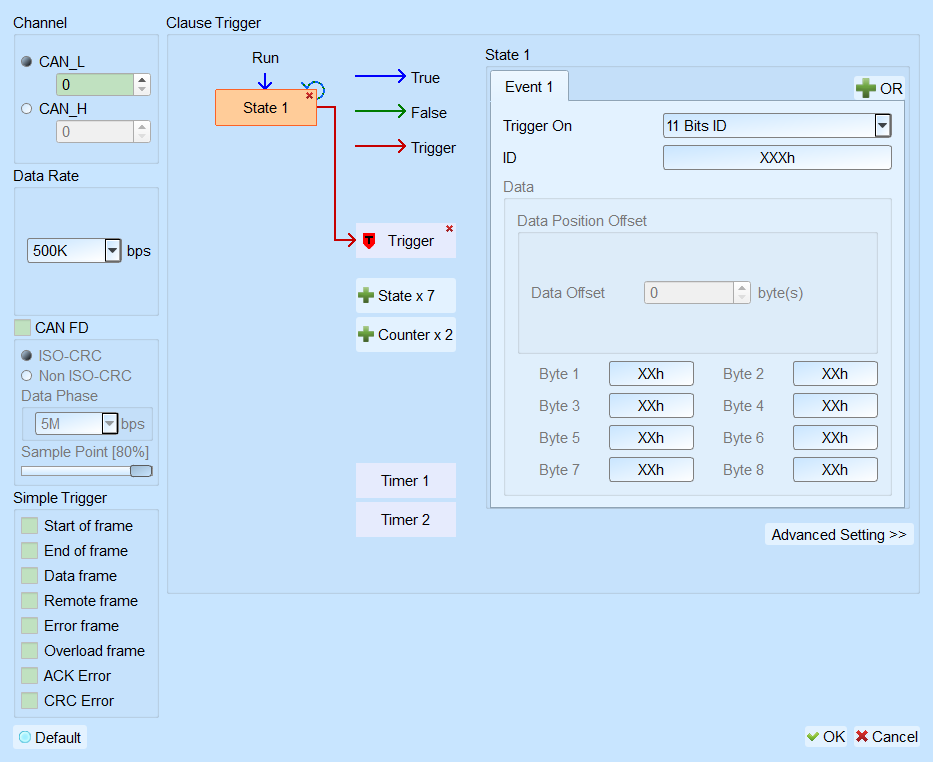

CAN Trigger

CAN Trigger (LA)

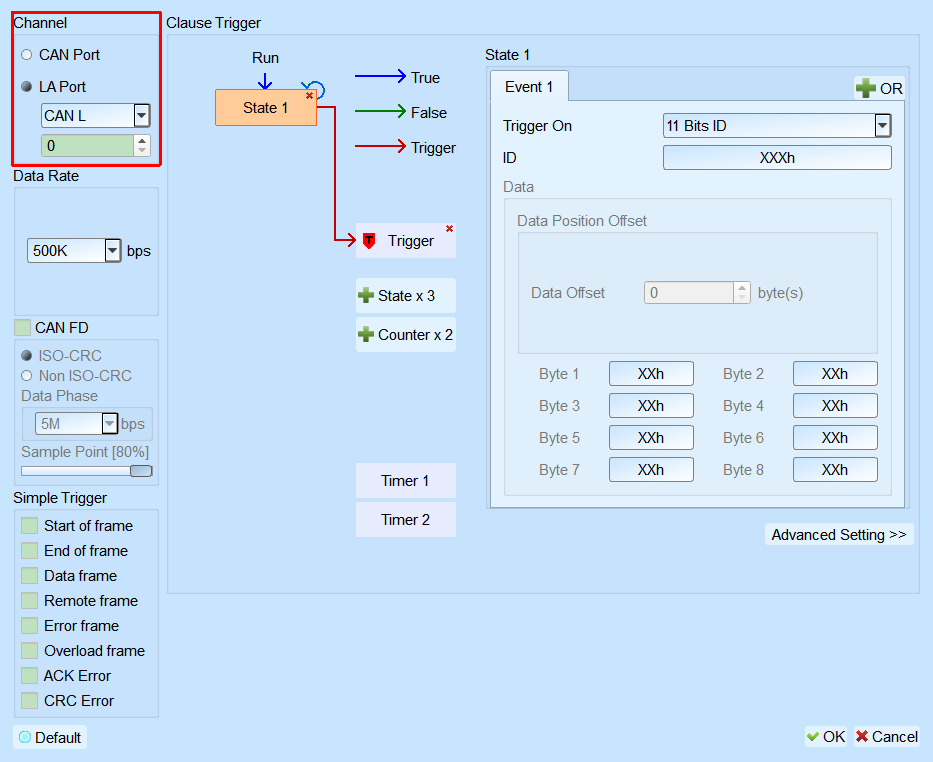

CAN Trigger TravelBus

CAN Trigger (TravelBus; extra channel source)
  • Channel: Dedicated CAN port (TravelBus B) or LA channelLA port.
  • Channel Input: CAN_H / CAN_L selection. Default: index 0.
  • Data Rate: Arbitration-phase rate. Default: 500K.
  • CAN FD: Enable CAN FD. When checked, FD Data Rate / Sample Point / ISO-CRC are field enabled (Enable). Default: cleared.
    • FD Data Rate: Default: 5M.
    • Sample Point: Default: 80.
    • ISO-CRC / Non ISO-CRC: Default: ISO-CRC.
  • Simple Trigger: Data / Remote / Error / Overload / Start / End / ACK Error / CRC Error. Default: all cleared.
  • Clause Trigger: See Clause Trigger.
  • State: Trigger On includes 11-bit ID, 29-bit ID, Data, ID+Data; enter a data pattern; XXh / XXXh = Don't care.
    • Trig Mode: Default 11-bit ID; ID Default XXXh; Data1–8 Default XXh; Any Offset Default checked (offset 0).
