DALI Trigger (Digital Addressable Lighting Interface)

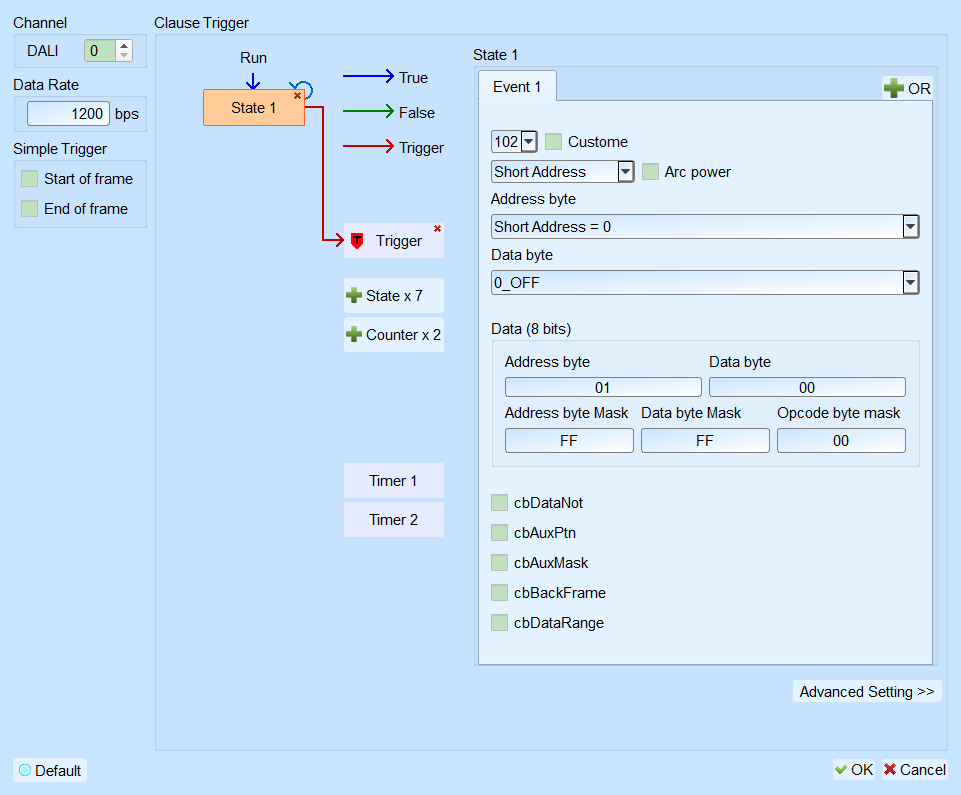

Open DALI 2 protocol trigger from the toolbar. Use Simple Trigger frame events or Clause Trigger with type (102 / 103), command kind (short / group / broadcast / response / special), CMD groups, or custom Address / Data / Opcode bytes.

Data Rate Default: 1200. See Settings and Clause Trigger.

Trigger Settings

DALI Trigger

DALI Trigger Settings
  • Channel: Assign the DALI channel.
  • Data Rate: Default: 1200.
  • Simple Trigger: Start of frame / End of frame. Field enabled (Enable) when selected. Default: all cleared.
  • Clause Trigger: See Clause Trigger.
  • State: Type (102, 103), command kind, CMD, or custom Address / Data / Opcode bytes.
